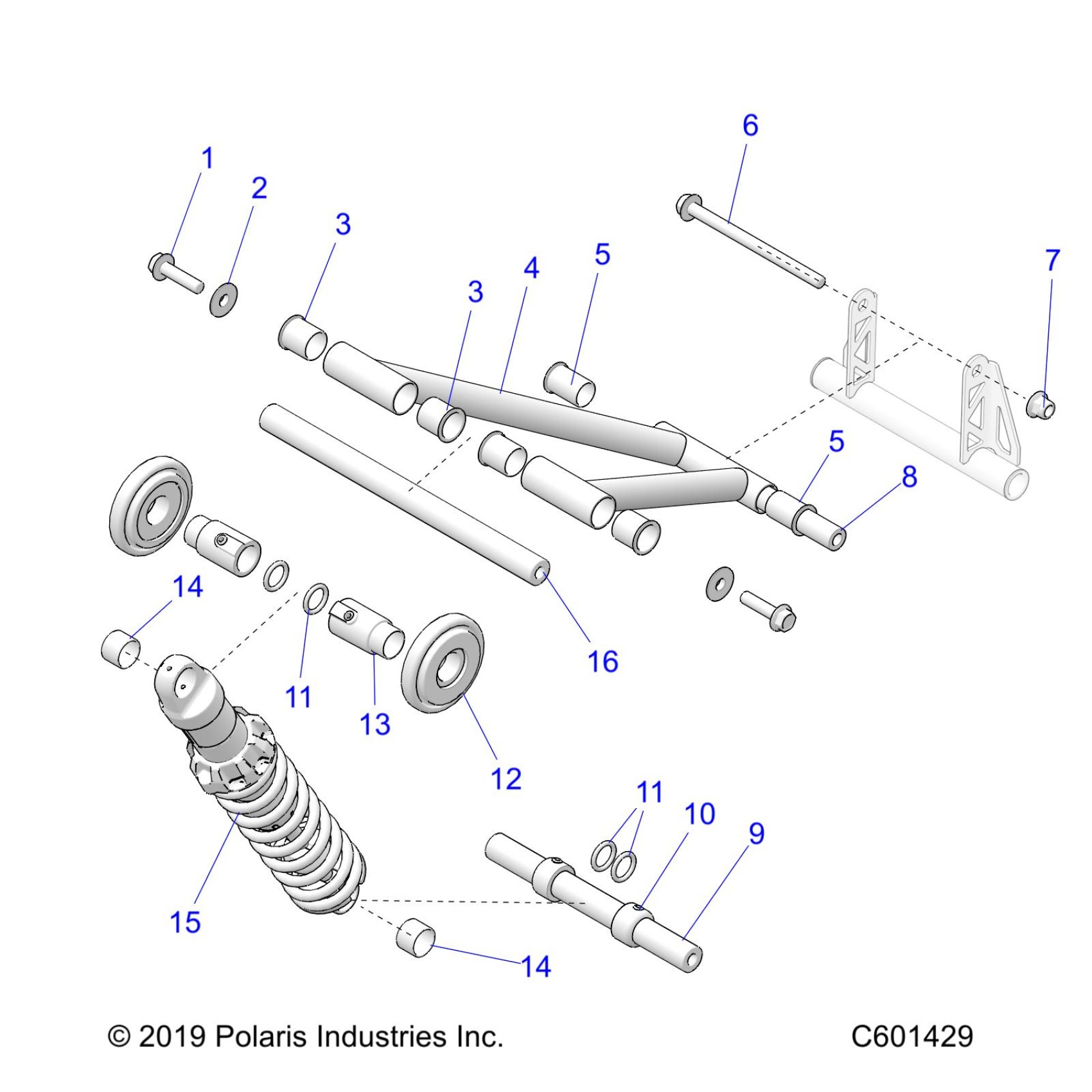

Polaris ARO 120SX/129/129LE/137LE ALL OPTIONS (R02) - J20UKB/UKC/USC/UMC/URL/USB SUSPENSION, TORQUE ARM, REAR (120 SX) - J20URLXXXA (600650) Diagram

#

Description

Price

1

SCR-HXFL M10X1.5X40 10.9 ZB P8

7521118

$3.19

2

WASHER-INSERT M10 HAT

5141584

Unavailable

3

BUSHING-SUSPENSION MOUNT

5453941

Unavailable

3

BUSHING-SUSPENSION MOUNT

5453941

Unavailable

4

REAR TORQUE ARM-MBLK [DOES NOT INCLUDE BUSHINGS]

1543881-458

Unavailable

5

BUSHING-LWR TORQUE ARM

5453939

Unavailable

5

BUSHING-LWR TORQUE ARM

5453939

Unavailable

6

BOLT-M10X1.25X145,HXFLG-OLV D

7518858

$9.59

7

NUT-HXFL M10X1.25 8 ZTB NYL

7547333

$1.59

8

SHAFT-PIVOT ARM

5141372

Unavailable

9

SHAFT-LOWER SHOCK HD

5141909

Unavailable

10

SET SCREW

7520679

Unavailable

10

COLLAR [DOES NOT INCLUDE SET SCREW]

5141024

Unavailable

11

O-RING

5416266

Unavailable

11

O-RING

5416266

Unavailable

12

WHEEL- 3.25"

1590579

Unavailable

13

SET SCREW

7520679

Unavailable

13

BUSHING-CARRIER WHEEL SPACER [DOES NOT INCLUDE SET SCREW]

5454341

Unavailable

14

BUSHING-SHOCK

5453940

Unavailable

14

BUSHING-SHOCK

5453940

Unavailable

15

SHOCK-REAR [SEE SUSPENSION, SHOCK PAGE FOR SVC PARTS]

-------

Unavailable

16

SHAFT-SUSPENSION CROSS

5141050

Unavailable
