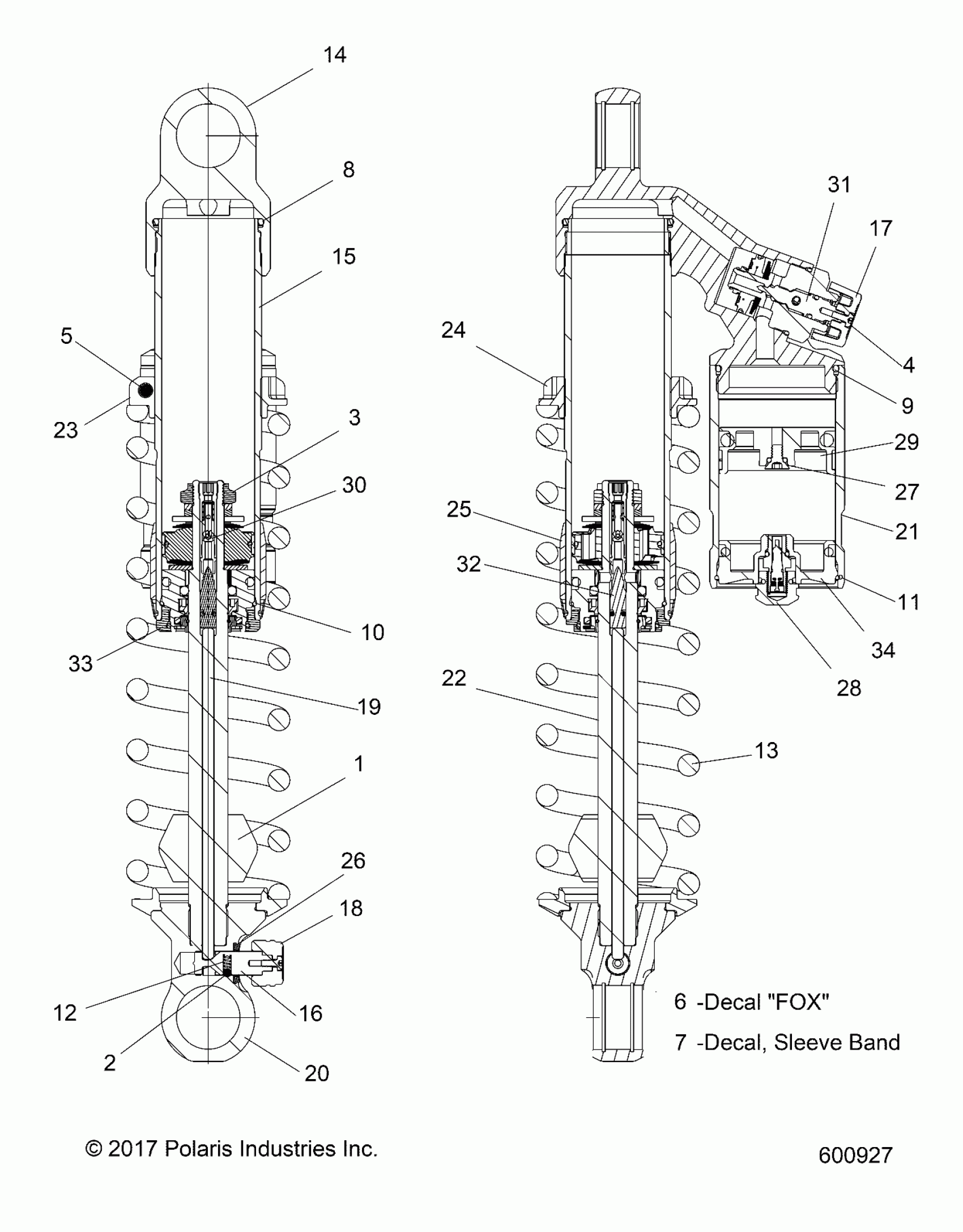

Polaris ARO 120SX/129/129LE/137LE ALL OPTIONS (R02) - J20UKB/UKC/USC/UMC/URL/USB SUSPENSION, SHOCK, FRONT (120 SX) - J20URLXXXA (600927) Diagram

#

Description

Price

-

SHOCK-FOX FRONT 1.5 ZERO RC

7061259

Unavailable

-

K-REBUILD, O-RING, SEALS

-------

Unavailable

1

BUMPER-.498x1.05L

1500902

$32.37

2

BALL-AIR VALVE

1500724

$12.79

3

NUT-LOCK

1500842

Unavailable

4

SCREW-#4-40x1/4

1501011

$13.59

5

SCREW-M5x.8x18MM SOC CP

1501238

Unavailable

6

DECAL-RES. FOX

1501330

Unavailable

7

DECAL-BAND

1501331

Unavailable

8

O-RING-129

1500108

$10.99

9

O-RING,.103W-1.737ID

1500623

$6.39

10

RING-RETAINING, WIRE

1500097

$4.79

11

RING-RETAINING, WIRE 2.050

1501015

$9.59

12

SPRING-MUSIC WIRE

1501332

Unavailable

13

SPRING-8", 198.9LB, BLK

1501333

Unavailable

14

BODY CAP-2.3" DROP RES.

1501241

Unavailable

15

BODY-1.459-6.30 TLG

1501338

Unavailable

16

KNOB-POST, SS

1501339

Unavailable

17

KNOB-LOW SPEED

1501019

$10.39

18

KNOB-REBOUND, BLK ANO

1501334

Unavailable

19

ROD-METERING

1501335

Unavailable

20

EYELET-SHAFT

1501336

Unavailable

21

RESERVOIR, BLK

1501109

$111.33

22

SHAFT-.62x7.3TLG

1501337

Unavailable

23

RING-PRELOAD

1501244

Unavailable

24

RETAINER-SPRING

1501245

$34.99

25

SPRING GUIDE

1500930

$39.99

26

PLUG-REB ADJ

1501340

Unavailable

27

ASM-SCREW, BLK

1501341

$44.99

28

ASM-PISTON, FLOATING

1501342

Unavailable

29

ASM-BEARING

1501343

Unavailable

30

ADJUSTER-LCS

1501344

Unavailable

31

ASM-ADJUSTER, LCS

1501345

Unavailable

32

NEEDLE-PARABOLIC

1501346

Unavailable

33

ASM-BRNG CAP W/RING

1501113

$49.99

34

ASM-RES END CAP

1501347

Unavailable
