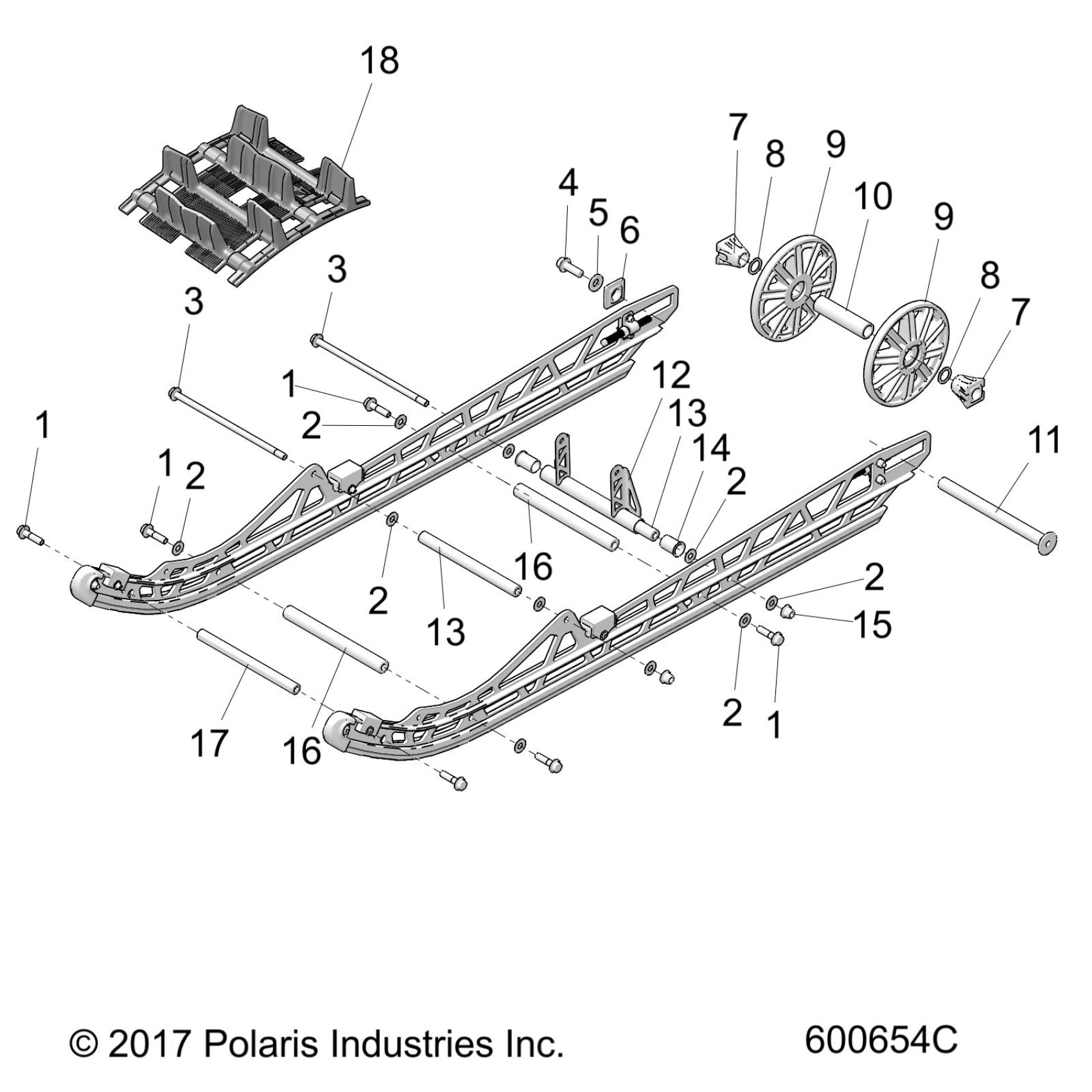

Polaris ARO 120SX/129/129LE/137LE ALL OPTIONS (R02) - J20UKB/UKC/USC/UMC/URL/USB SUSPENSION, REAR ASM. (120 SX) - J20URLXXXA (600654) Diagram

#

Description

Price

1

SCR-HXFLM10X1.5X40,10.9,P&OP80

7519763

Unavailable

1

SCR-HXFLM10X1.5X40,10.9,P&OP80

7519763

Unavailable

1

SCR-HXFLM10X1.5X40,10.9,P&OP80

7519763

Unavailable

1

SCR-HXFLM10X1.5X40,10.9,P&OP80

7519763

Unavailable

2

WSHR-10.5X24X1.2446 ZOD HRD

7556545

$3.19

2

WSHR-10.5X24X1.2446 ZOD HRD

7556545

$3.19

2

WSHR-10.5X24X1.2446 ZOD HRD

7556545

$3.19

2

WSHR-10.5X24X1.2446 ZOD HRD

7556545

$3.19

2

WSHR-10.5X24X1.2446 ZOD HRD

7556545

$3.19

2

WSHR-10.5X24X1.2446 ZOD HRD

7556545

$3.19

3

SCR-HXFL-M10X1.25X250 10.9 ZOD

7519327

$19.99

3

SCR-HXFL-M10X1.25X250 10.9 ZOD

7519327

$19.99

4

SCR-M12X1.75X35 HXFL ZOD P30

7520123

$8.79

5

WSHR-DOMED 29X13X3 ZC DIN6796

7556929

$3.99

6

SPACER-IDLER

5436496

$6.39

7

SPACER-IDLER

5432535

$11.99

7

SPACER-IDLER

5432535

$11.99

8

BUSHING

7555918

$1.59

8

BUSHING

7555918

$1.59

9

BEARING [1 PER WHEEL]

3514384

$19.84

9

RING-RETAINING [1 PER WHEEL]

7710444

$8.79

9

ASM., WHEEL, 7.25" [INCL. BEARING AND RETAINING RING]

1590431-070

$67.76

9

BEARING [1 PER WHEEL]

3514384

$19.84

9

RING-RETAINING [1 PER WHEEL]

7710444

$8.79

9

ASM., WHEEL, 7.25" [INCL. BEARING AND RETAINING RING]

1590431-070

$67.76

10

SHAFT, IDLER, CENTER

5338618

$9.99

11

SHAFT, IDLER, REAR

5139411

$129.99

12

ARM, REAR PIVOT, BLACK

1543884-458

Unavailable

13

SHAFT

5141371

Unavailable

13

SHAFT

5141371

Unavailable

14

BUSHING-LWR TORQUE ARM

5453939

Unavailable

15

NUT-HXFL M10X1.25 8 ZTB NYL

7547333

$1.59

16

SHAFT-LOWER SHOCK HD [SEE SUSPENSION, REAR TORQUE ARM REF. 19]]

5141909

Unavailable

16

SHAFT-LOWER SHOCK HD [SEE SUSPENSION, REAR TORQUE ARM REF. 19]]

5141909

Unavailable

17

SHAFT-CROSS [SEE SUSPENSION, FRONT TORQUE ARM REF. 17]

5139172

$29.03

18

TRACK-120 X 2.5 X 11.5 CONVEX

5416310

Unavailable
