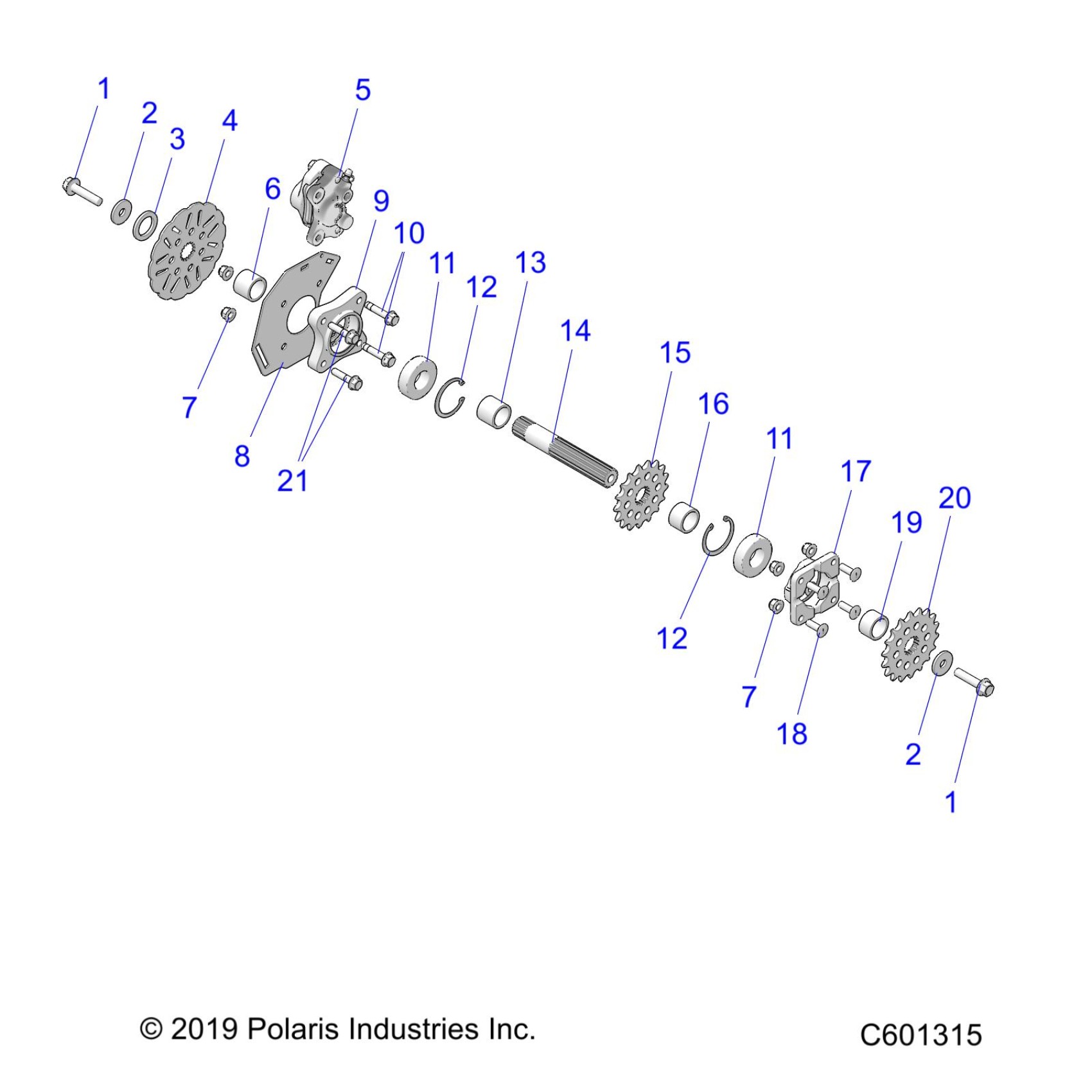

Polaris ARO 120SX/129/129LE/137LE ALL OPTIONS (R02) - J20UKB/UKC/USC/UMC/URL/USB DRIVE TRAIN, JACKSHAFT AND BRAKE DISC - J20UKB/UKC/USC/UMC/URL/USB ALL OPTIONS (600655) Diagram

SCR-HXFL-M10X1.25X45 ZOD P30

7520187

$3.99

SCR-HXFL-M10X1.25X45 ZOD P30

7520187

$3.99

WSHR-10.5X31.8X3.43 ZOD HRD

7556800

$7.19

WSHR-10.5X31.8X3.43 ZOD HRD

7556800

$7.19

BUSHING-1X1 1/2X .145

7556162

$3.99

DISC-BRAKE SPLINED

1913425

Unavailable

BRAKE CALIPER [SEE BRAKES, BRAKE SYSTEM]

-------

Unavailable

TUBE-SPACER BRAKE NO HUB

5142620

Unavailable

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.99

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.99

BRKT-SUPPORT BRAKE COVER BLK

5267201-458

Unavailable

ASM-BEARING FRAME SINGLE [INCL. 11,12]

1523594

Unavailable

SCR-HXFL-M8X1.25X40 8.8 ZODP30

7519267

$3.99

BEARING

3514308

Unavailable

BEARING

3514308

Unavailable

RET.RING-TRUARC(N5000-206)-P

7718406

$6.39

RET.RING-TRUARC(N5000-206)-P

7718406

$6.39

TUBE-SPACER RH FRAME

5142621

Unavailable

JACKSHAFT-11.5 WIDE 1144 CF

6231116

Unavailable

SPROCKET-17T 520 SLW HD

3222362

Unavailable

SPROCKET-SPLINED 16T 520 [OPTION]

3222291

Unavailable

SPROCKET-SPLINED 18T 520 [OPTION]

3222338

Unavailable

TUBE-SPACER

5141654

Unavailable

ASM-BEARING SNGL THRU HOLES [INCL. 11,12,AND HOUSING]

1523108

Unavailable

SCR-RHCAR-M8X1.25X25 8.8 ZOD

7520297

$4.99

TUBE-SPACER LH

5141032

Unavailable

SPROCKET-18T 520 15T SPLINE LW

3222338

Unavailable

SPROCKET-SPLINED 16T 520 [OPTION]

3222291

Unavailable

SPROCKET-17T 520 SLW HD [OPTION][STOCK FOR 3" TRCK OPTION]

3222362

Unavailable

SCR-HXFL-M8X1.25X35 8.8 ZOD

7519052

$1.59
