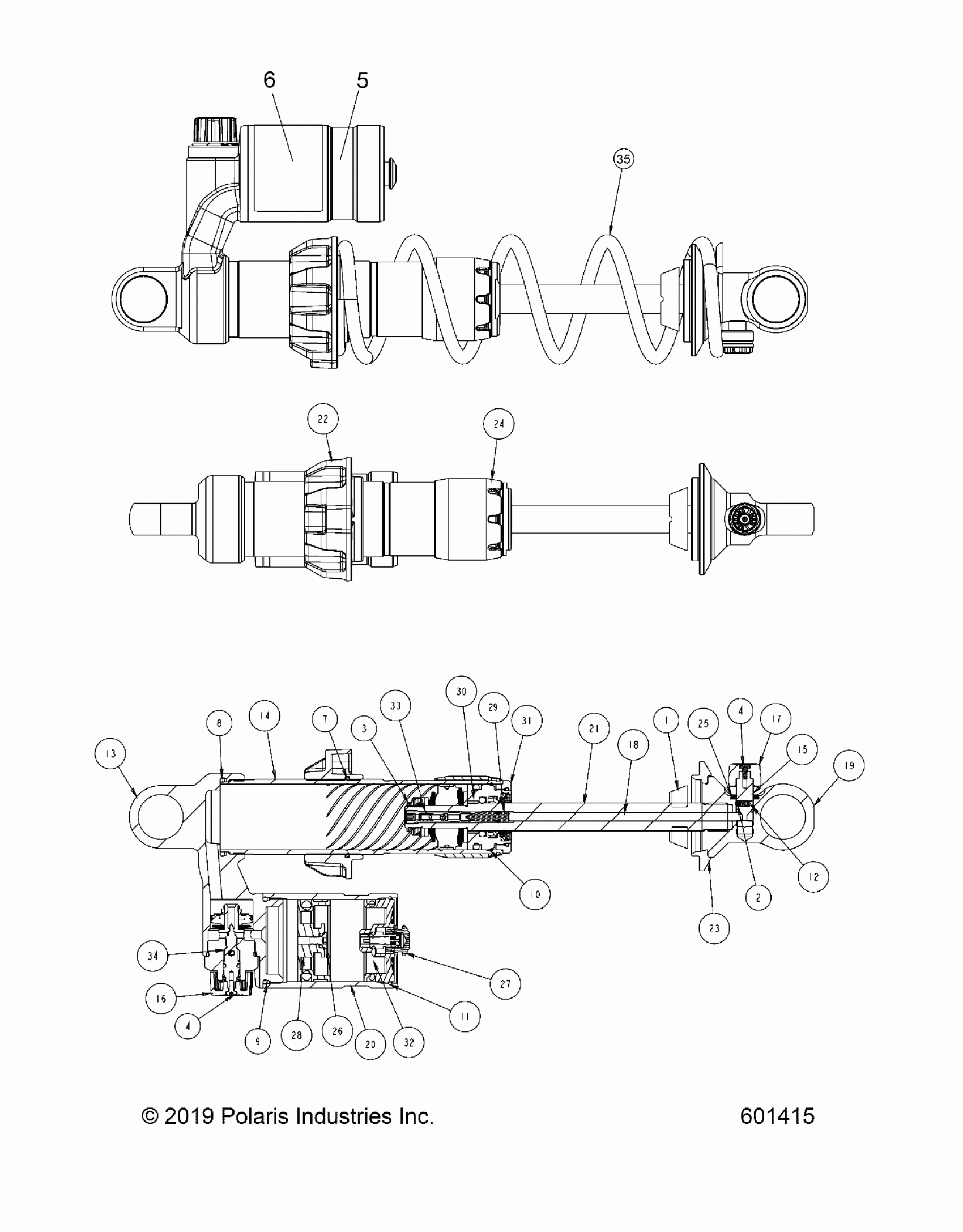

Polaris ARO 120 RACE (R02) - J20URRXXXA SUSPENSION, SHOCK, FRONT TRACK - J20URRXXXA (601415) Diagram

#

Description

Price

-

K-REBUILD [INCL. O-RINGS, SEALS]

1501382

Unavailable

-

SHOCK-FOX LC-R RACE FRONT

7045455

Unavailable

1

BUMPER-B/O

1501102

$12.94

2

BALL-AIR VALVE

1500071

$6.76

3

NUT-LOCK

1500842

Unavailable

4

SCREW-#4-40x1/4

1501011

$13.59

4

SCREW-#4-40x1/4

1501011

$13.59

5

DECAL-BAND

1501383

Unavailable

6

DECAL-RESERVOIR

1501384

Unavailable

7

O-RING

1500997

$27.99

8

O-Ring

1500108

$10.99

9

O-RING,.103W-1.737ID

1500623

$6.39

10

RING-RETAINING, WIRE

1500097

$4.79

11

RING-RETAINING, WIRE 2.050

1501015

$9.59

12

SPRING-WIRE

-------

Unavailable

13

BODY CAP-PB

1501117

$144.99

14

BODY-6.3TLG THD

1501385

Unavailable

15

POST-ADJ. KNOB

1501386

Unavailable

16

KNOB-LOW SPEED ADJ

1501019

$10.39

17

KNOB-REBOUND, BLK

1501387

Unavailable

18

ROD-METERING

1501388

Unavailable

19

EYELET-RD ADJUST

1501389

Unavailable

20

RESERVOIR 1.84 BOREX3.00 TLG

1501371

Unavailable

21

SHAFT-.620DIAx7.30TLG

1501390

Unavailable

22

RING-PRELOAD

1501236

$32.37

23

SPRING RETAINER

1501245

$34.99

24

SPRING GUIDE

1500930

$39.99

25

PLUG-RUBBER, REB ADJ

1501391

Unavailable

26

SCREW

1501303

$26.39

27

ASM-AIR VALVE

1501392

Unavailable

28

ASM-PISTON, FLOATING

1501393

Unavailable

29

PARA NEEDLE/O-RING

1501398

Unavailable

30

ASM-BEARING

1501394

Unavailable

31

ASM-BEARING CAP

1501113

$49.99

32

ASM-END CAP, RESERVOIR

1501395

Unavailable

33

JET/CHECK VALVE

1501396

Unavailable

34

ADJUSTER-LCS

1501397

Unavailable

35

SPRING-COMP,.188X9.00,200# WHT

7045443-133

Unavailable
