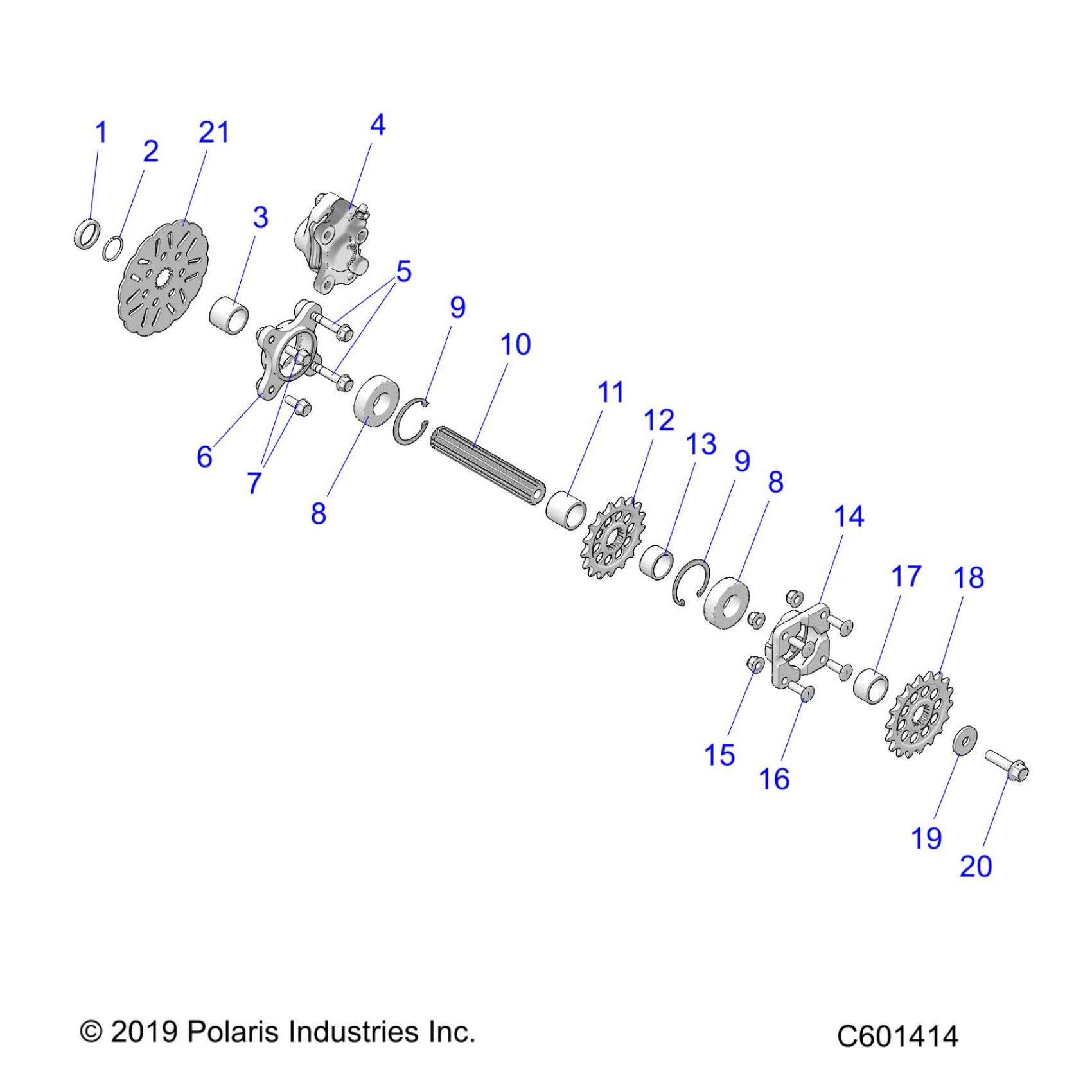

Polaris ARO 120 RACE (R02) - J20URRXXXA DRIVE TRAIN, JACKSHAFT AND BRAKE DISC - J20URRXXXA (C601414) Diagram

#

Description

Price

1

RING-LOCKNUT JACKSHAFT

5143161

Unavailable

2

RING-RETAINING,ROUND SECT,1"

7710422

$3.99

3

TUBE-SPACER BRAKE NO HUB

5142620

Unavailable

4

BRAKE CALIPER [SEE BRAKES, BRAKE SYSTEM]

-------

Unavailable

5

SCR-HXFL-M8X1.25X40 8.8 ZODP30

7519267

$3.99

6

ASM-BEARING FRAME SNGL LW [INCL. 8,9, AND HOUSING]

1523881

Unavailable

7

SCR-HXFL-M8X1.25X20 ZB P30

7521186

$3.19

8

BEARING

3514308

Unavailable

8

BEARING

3514308

Unavailable

9

RET.RING-TRUARC(N5000-206)-P

7718406

$6.39

9

RET.RING-TRUARC(N5000-206)-P

7718406

$6.39

10

JACKSHAFT-11.5 WIDE 1144 CF

6231133

Unavailable

11

TUBE-SPACER RH FRAME

5142621

Unavailable

12

SPROCKET-16T 520 [OPT]

3222291

Unavailable

12

SPROCKET-18T 520 SLW [OPT]

3222348

Unavailable

12

SPROCKET-17T 520 SLW

3222347

Unavailable

13

TUBE-SPACER CENTER NARROW

5143061

Unavailable

14

ASM-BEARING, SINGLE [INCL. 8,9,AND HOUSING]

1523108

Unavailable

15

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.99

16

SCR-RHCAR-M8X1.25X25 8.8 ZOD

7520297

$4.99

17

TUBE-SPACER LH

5141032

Unavailable

18

SPROCKET-16T 520 [OPT]

3222291

Unavailable

18

SPROCKET-18T 520 15T SPLINE LW

3222348

Unavailable

18

SPROCKET-17T 520 SLW [OPT]

3222347

Unavailable

19

WSHR-10.5X31.8X3.43 ZOD HRD

7556800

$7.19

20

SCR-HXFL-M10X1.25X45 ZOD P30

7520187

$3.99

21

DISC-BRAKE SPLINED

1913425

Unavailable
