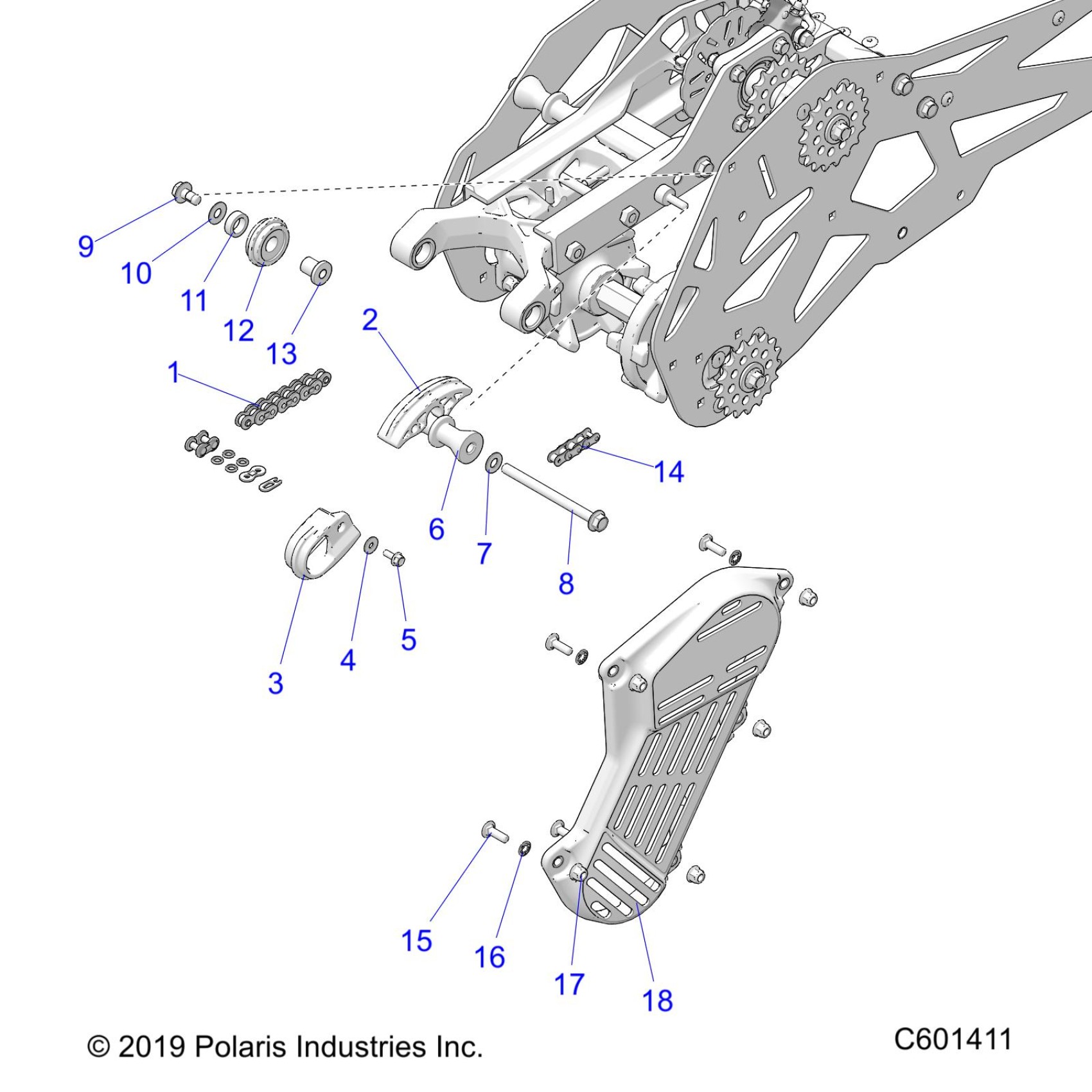

Polaris ARO 120 RACE (R02) - J20URRXXXA DRIVE TRAIN, CHAIN DRIVE - J20URRXXXA (C601411) Diagram

#

Description

Price

1

LINK-MASTER 520P SKJ

3222290

Unavailable

1

CHAIN-ENGINE 520 70 RACE

3222344

Unavailable

2

SLIDER-CHAIN FRAME

5455839

Unavailable

3

ASM-SLIDER CHAIN FRONT

2637382

Unavailable

3

INSERT-COMP LIMIT M6X6

7557090

Unavailable

4

WSHR-6.4X18.0X1.6 ZC

7556565

$2.39

5

SCR-HXFL-M6X1.0X16 8.8 ZYL NYL

7519236

$3.19

6

SPACER-TUNNEL SIDE FRT NARROW

5143057

Unavailable

7

WSHR-10.5X22.0X1.6 SPC

7556155

$5.22

8

SCR-HXFL-M10X1.5X130 ZBP80

7521116

Unavailable

9

SCR-HXFL-M10X1.5X20 8.8 Z NYL

7518460

$1.59

10

WSHR-10.5X24X1.2446 ZOD HRD

7556545

$3.19

11

SPACER-CHAIN CASE ROLLER

5141525

Unavailable

12

IDLER-CHAIN CASE CHAIN

5454357

Unavailable

13

MOUNT-CHAIN CASE ROLLER

5141351

Unavailable

14

CHAIN-CASE 520 52 CONT RACE

3222343

Unavailable

15

SCR-RHCAR-M8X1.25X25 8.8 ZOD

7520297

$4.99

16

RETAINER-BOLT PUSHNUT M8X1.25

7710871

Unavailable

17

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.99

18

ASM-COVER CHAINCASE VENTED

2637762

Unavailable
