Description

Price

13127

SHAFT-TRANSMISSION IN

13127-1035

Unavailable

13128

SHAFT-TRANSMISSION OUTPUT

13128-1031

Unavailable

13129

GEAR,INPUT 2ND,18T

13129-1244

Unavailable

13129A

GEAR,INPUT,3RD&4TH,25

13129-1245

Unavailable

13129B

GEAR,INPUT 5TH,27T

13129-1246

Unavailable

13129C

GEAR,INPUT,TOP,29T

13129-1247

Unavailable

13129D

GEAR,OUTPUT LOW,43T

13260-1320

Unavailable

13129E

GEAR,OUTPUT 2ND,38T

13129-1249

Unavailable

13129F

GEAR,OUTPUT 4TH,31T

13129-1251

Unavailable

13129G

GEAR,OUTPUT 5TH,29T

13129-1252

Unavailable

13129H

GEAR,OUTPUT TOP,28T

13129-1253

Unavailable

13129I

GEAR,OUTPUT 3RD,34T

13129-1338

Unavailable

13144

SPROCKET-OUTPUT,15T

13144-1045

$15.86

92026

SPACER,17.2X23X0.5

92026-1037

$4.31

92027

COLLAR,17X22X10

92027-1289

Unavailable

92033

RING-SNAP,17MM

92033-1060

$4.26

92055

RING-O,17MM

92055-1097

$5.24

480

CIRCLIP-TYPE-C,17MM

480J1700

$0.65

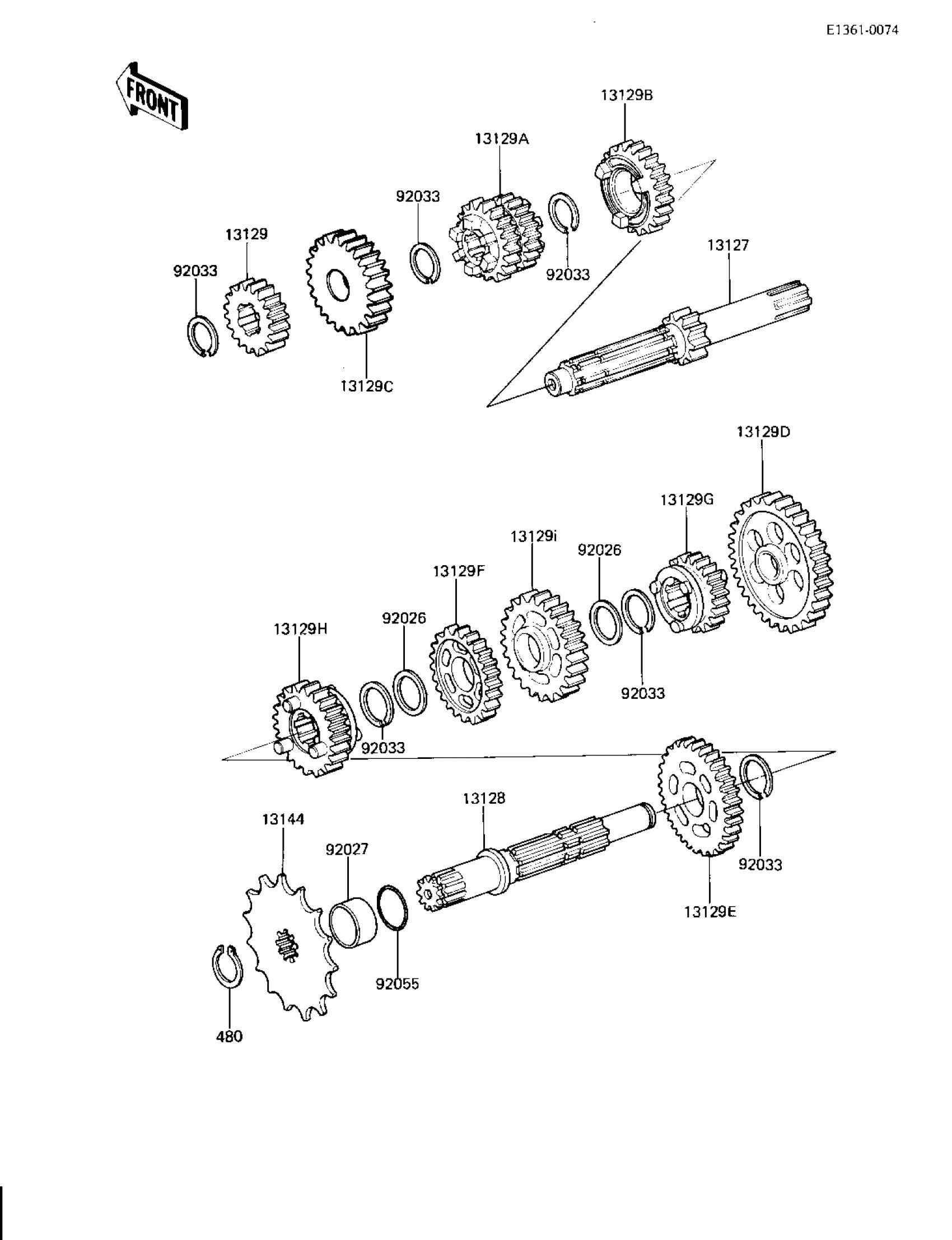

Kawasaki AR80-A1 TRANSMISSION Diagram

SHAFT-TRANSMISSION IN

SHAFT-TRANSMISSION OUTPUT

GEAR,INPUT 2ND,18T

GEAR,INPUT,3RD&4TH,25

GEAR,INPUT 5TH,27T

GEAR,INPUT,TOP,29T

GEAR,OUTPUT LOW,43T

GEAR,OUTPUT 2ND,38T

GEAR,OUTPUT 4TH,31T

GEAR,OUTPUT 5TH,29T

GEAR,OUTPUT TOP,28T

GEAR,OUTPUT 3RD,34T

SPROCKET-OUTPUT,15T

SPACER,17.2X23X0.5

COLLAR,17X22X10

RING-SNAP,17MM

RING-O,17MM

CIRCLIP-TYPE-C,17MM
