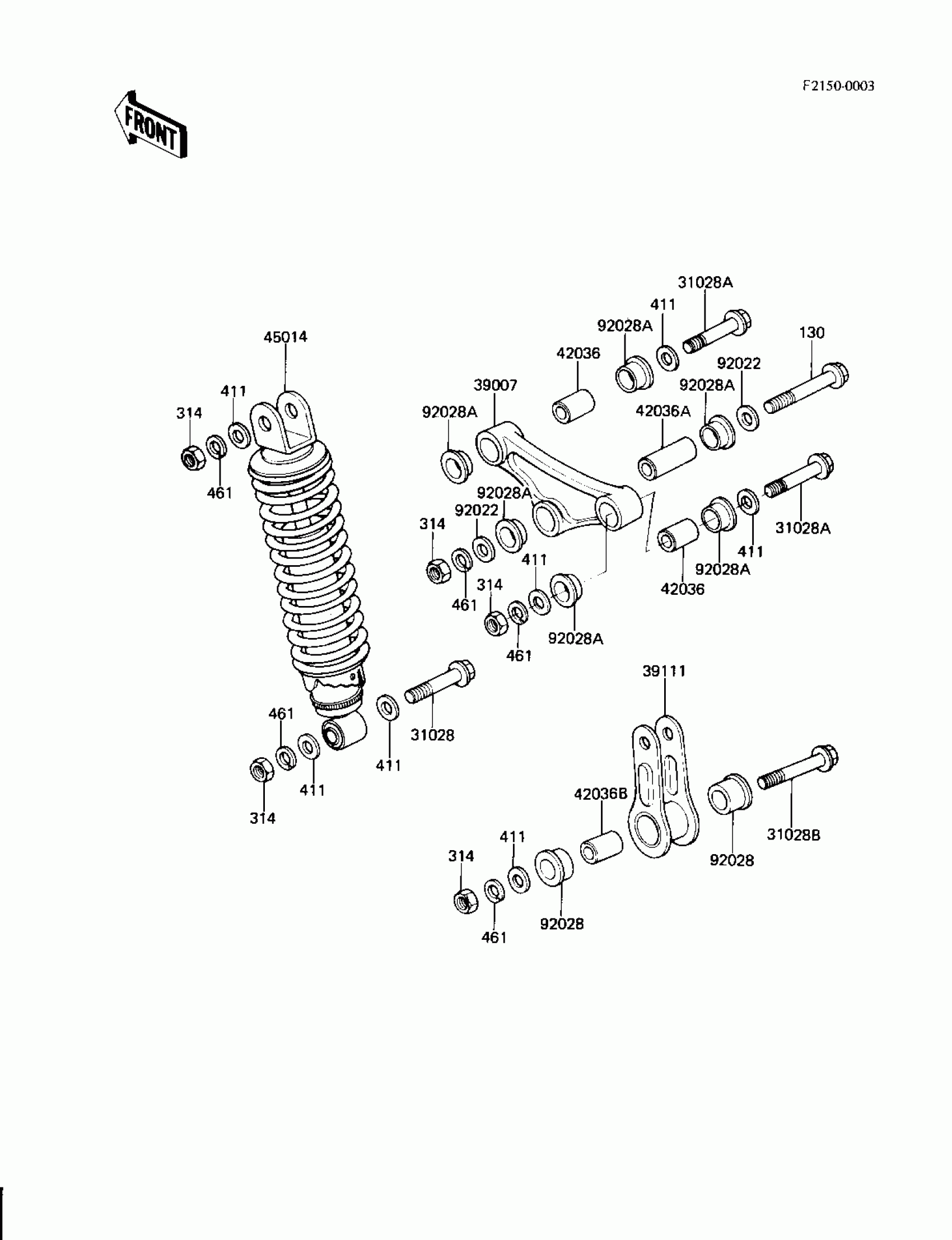

Kawasaki AR80-A1 REAR SUSPENSION/SHOCK ABSORBER Diagram

Description

Price

31028

SHAFT-SHOCKABSORBER,1

31028-1002

Unavailable

31028A

SHAFT-SHOCKABSORBER,1

31028-1003

Unavailable

31028B

SHAFT-SHOCKABSORBER,1

31028-1004

Unavailable

39007

ARM-SUSP,UNITRAK

39007-1005

$149.52

39111

ROD-TIE,UNITRAK

39111-1008

$34.64

42036

SLEEVE,10.1X17X26

42036-1041

Unavailable

42036A

SLEEVE,11X17X46

42036-1044

Unavailable

42036B

SLEEVE,11X17X35

42036-1047

Unavailable

45014

SHOCK ABSBR RR

45014-1085

$245.85

92022

WASHER,10X22X3.2

92022-176

$4.78

92028

BUSHING,RR SHOCKABSOR

92028-1129

$17.31

92028A

BUSHING,SUSPENSION

92028-1130

$8.05

130

BOLT-FLANGED,10X65

130G1065

Unavailable

314

NUT-HEX-FINE,10MM

314B1000

$0.67

411

WASHER-PLAIN,10MM

411B1000

$0.93

461

WASHER SPRING 10MM

461F1000

$0.67
