Description

Price

14025

COVER,METER,LWR

14025-1376

Unavailable

23008

SOCKET-ASSY,METER

23008-1162

$44.47

25001

METER-ASSY,MPH

25001-1350

$216.99

25005

SPEEDOMETER,MPH

25005-1187

$165.64

25008

BRACKET-METER

25008-1050

Unavailable

25015

TACHOMETER

25015-1091

$168.85

25023

COVER-METER CASE

25023-1029

$150.14

32099

CASE,METER

32099-1021

Unavailable

92015

NUT,LOCK 6MM

92017-014

$7.51

92022

WASHER,6.5X20X1.6

92022-125

$1.40

92069

BULB,6V 1.7W

92069-024

$5.31

92069A

BULB,6V 3W,CLEAR

92069-053

$4.18

92075

DAMPER

92075-1337

$3.69

110

BOLT-UPSET,6X16

112G0616

$1.10

220

SCREW PAN HEAD 4X10

220B0410

$2.30

220A

SCREW-PAN-CRSOSS,4X1

220B0412

$0.21

410

WASHER PLAIN 4MM

410B0400

$0.48

411

WASHER PLAIN 6MM

411B0600

$2.84

461

WASHER SPRING 4MM

461F0400

Unavailable

461A

WASHER SPRING 6MM

461F0600

$0.69

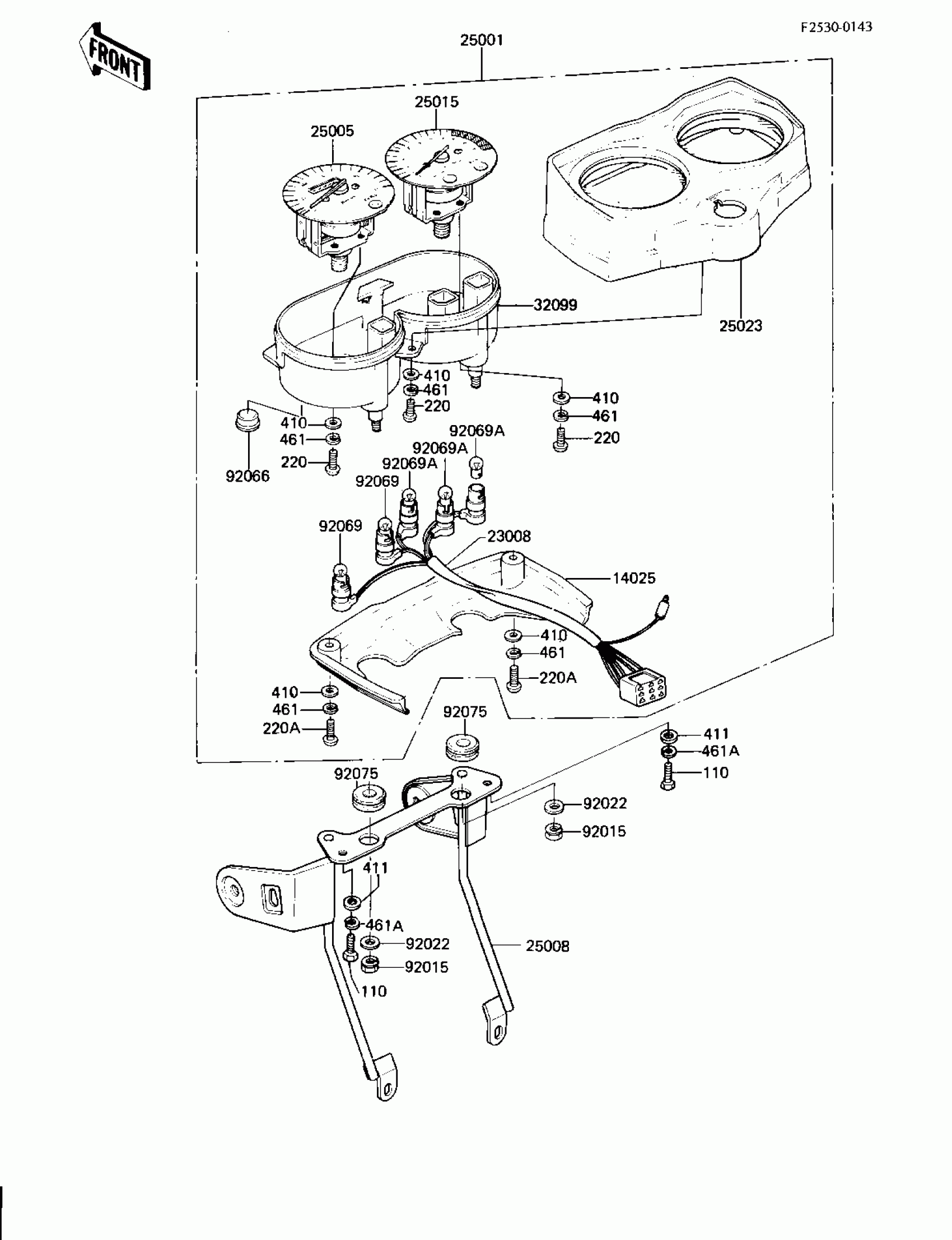

Kawasaki AR80-A1 METERS Diagram

COVER,METER,LWR

SOCKET-ASSY,METER

METER-ASSY,MPH

SPEEDOMETER,MPH

BRACKET-METER

TACHOMETER

COVER-METER CASE

CASE,METER

NUT,LOCK 6MM

WASHER,6.5X20X1.6

BULB,6V 1.7W

BULB,6V 3W,CLEAR

DAMPER

BOLT-UPSET,6X16

SCREW PAN HEAD 4X10

SCREW-PAN-CRSOSS,4X1

WASHER PLAIN 4MM

WASHER PLAIN 6MM

WASHER SPRING 4MM

WASHER SPRING 6MM
