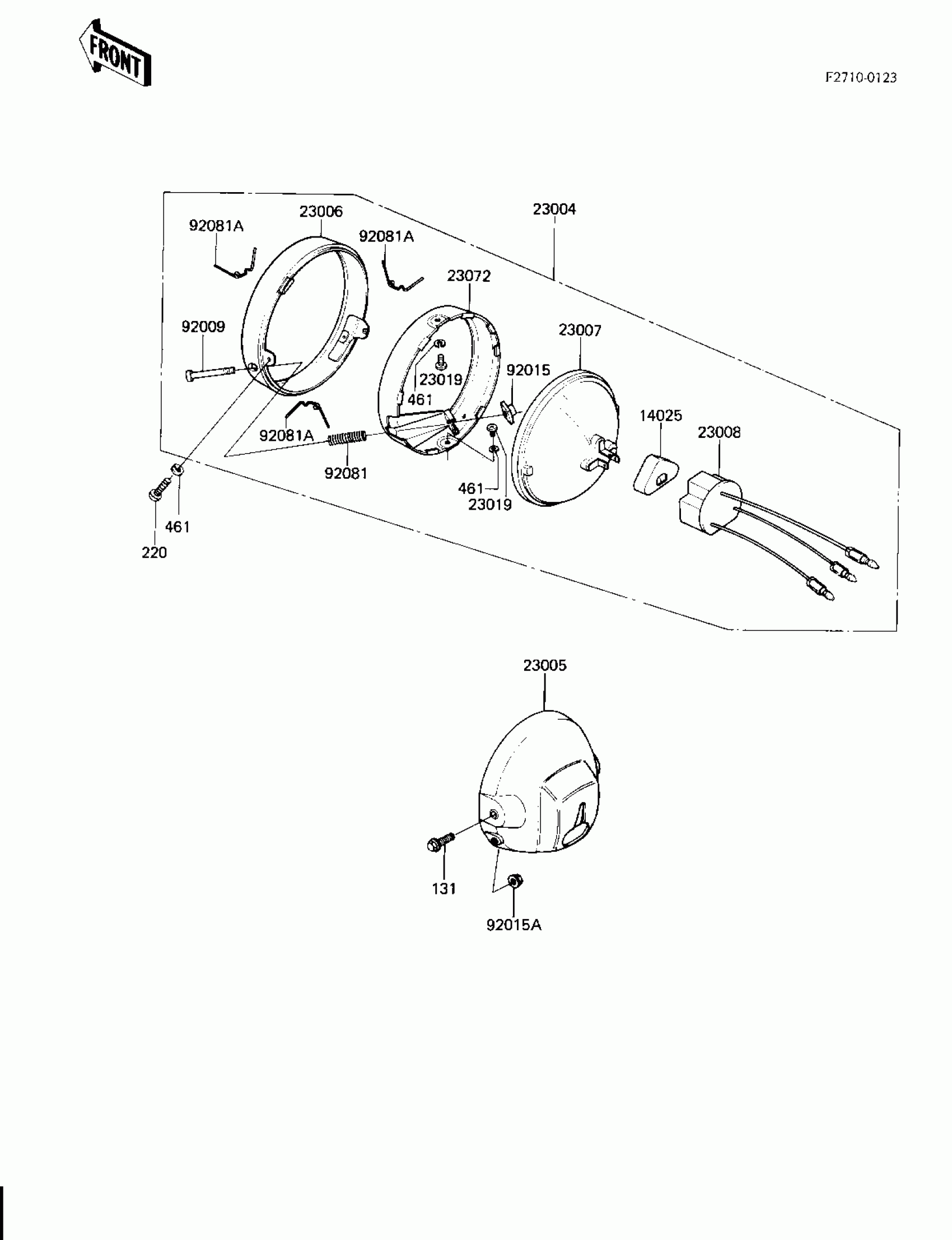

Kawasaki AR80-A1 HEADLIGHT Diagram

Description

Price

14025

COVER,HEAD LAMP SOCKET

23081-001

$8.08

23004

LAMP-HEAD

23004-1078

$105.38

23005

BODY-COMP-HEAD LAMP,B

23005-1017-6Z

$66.67

23006

RIM-LAMP,HEAD

23006-1018

$46.78

23007

LENS-COMP,"4020" MARK

23007-055

Unavailable

23008

SOCKET-ASSY

23008-1125

$15.19

23019

SCREW,LENS FITTING

23019-031

Unavailable

23072

RETAINER,HEAD LAMP

23072-005

$37.34

92009

SCREW,FOCUS ADJUSTING

23019-027

$4.51

92015

NUT,ADJUSTING

23020-012

$3.91

92015A

NUT,FLANGED,8MM

92015-1014

$0.65

92081

SPRING,FOCUS ADJUSTING

23014-012

$5.88

92081A

SPRING,HEAD LAMP LENS

92081-1144

$5.17

131

BOLT-FLANGED,8X20

131B0820

Unavailable

220

SCREW-PAN-CROS

220B0512

$0.47

461

WASHER SPRING 5MM

461F0500

$0.69
