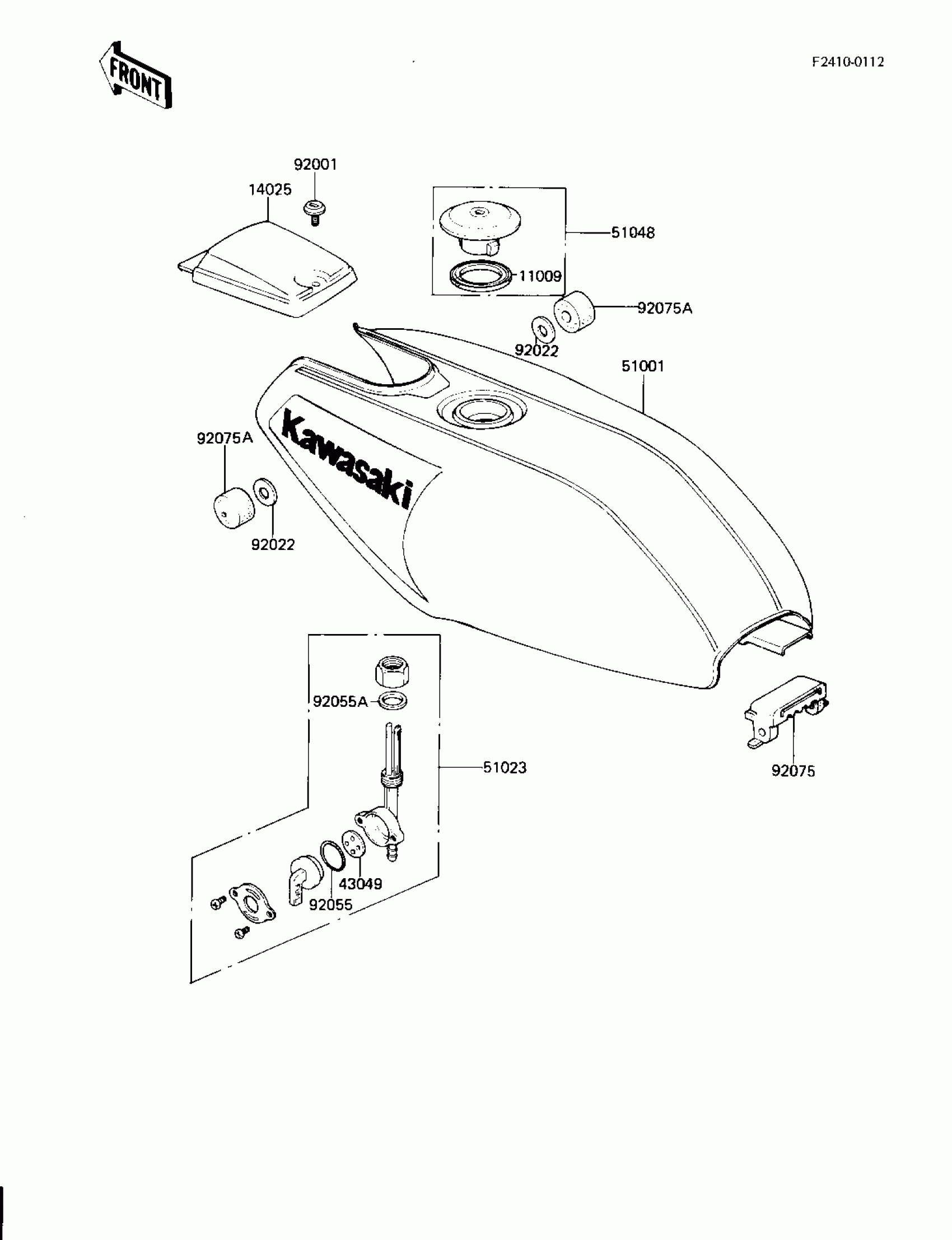

Kawasaki AR80-A1 FUEL TANK Diagram

Description

Price

11009

GASKET,TANKCAP

11009-1053

Unavailable

14025

COVER,TANK CAP

14025-1274

Unavailable

43049

PACKING,FUEL TAP

43049-1018

$7.64

51001

TANK-FUEL,F.RED

51001-1055-B1

$461.53

51023

TAP-ASSY

51023-1052

Unavailable

51048

CAP ASSY,TANK

51048-1001

Unavailable

92001

BOLT,OIL TANK COVER

92001-1459

Unavailable

92022

WASHER,10.5X26X2.3

92022-044

$3.92

92055

RING-O,FUEL TAP,1.9X1

92055-1113

$4.12

92055A

RING-O,FUEL TAP

92055-1114

Unavailable

92075

DAMPER,FUEL TANK,RR

92075-1087

Unavailable

92075A

DAMPER,FUEL TANK

92075-125

$6.22
