Description

Price

11009

GASKET

44045-057

$4.86

44002

FORK-FRONT

44002-1034

$796.97

44005

TUBE,LH,FORK OUTER

44005-1071

$171.32

44006

TUBE,RH,FORK OUTER

44006-1071

$171.32

44013

PIPE-FORK INNER

44013-1063

$170.94

44022

CYLINDER-FORK

44022-1060

$88.67

44024

CAP-OIL-LOCK

44024-1011

$17.84

44026

SPRING-FRONT FORK,L=3

44026-1111

$32.56

44037

HOLDER-FORK UNDER

44037-1059

Unavailable

44039

HOLDER-FORK UPPER

44039-1037

$103.61

92001

BOLT,SOCKET,FORK CYLINDER

44041-040

$6.57

92001A

BOLT,8X30

92001-1469

Unavailable

92001B

BOLT,10X20

92001-1470

Unavailable

92015

NUT

92015-1152

$10.70

92022

WASHER

92022-1267

Unavailable

92022A

WASHER

92022-1268

Unavailable

92026

SPACER,L=130

92026-1097

$8.39

92033

RING-SNAP

92033-1003

Unavailable

92048

RACE,STEERING STEM BEARING

92047-013

$12.33

92049

SEAL-OIL,FORK OUTER

92049-1319

$20.80

92055

RING-O

92055-1010

$1.36

92093

SEAL,DUST

92093-1061

$19.49

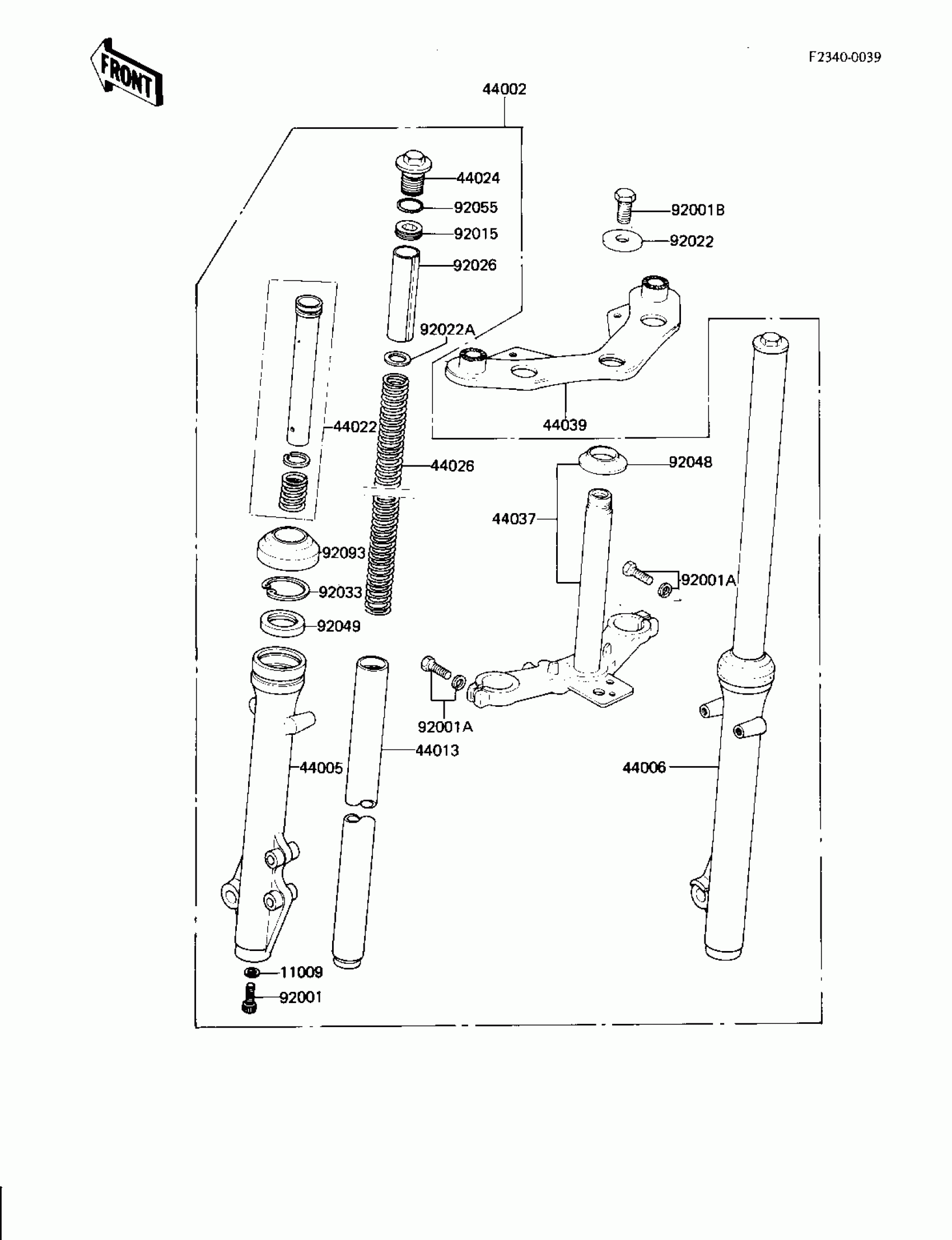

Kawasaki AR80-A1 FRONT FORK Diagram

GASKET

FORK-FRONT

TUBE,LH,FORK OUTER

TUBE,RH,FORK OUTER

PIPE-FORK INNER

CYLINDER-FORK

CAP-OIL-LOCK

SPRING-FRONT FORK,L=3

HOLDER-FORK UNDER

HOLDER-FORK UPPER

BOLT,SOCKET,FORK CYLINDER

BOLT,8X30

BOLT,10X20

NUT

WASHER

WASHER

SPACER,L=130

RING-SNAP

RACE,STEERING STEM BEARING

SEAL-OIL,FORK OUTER

RING-O

SEAL,DUST
