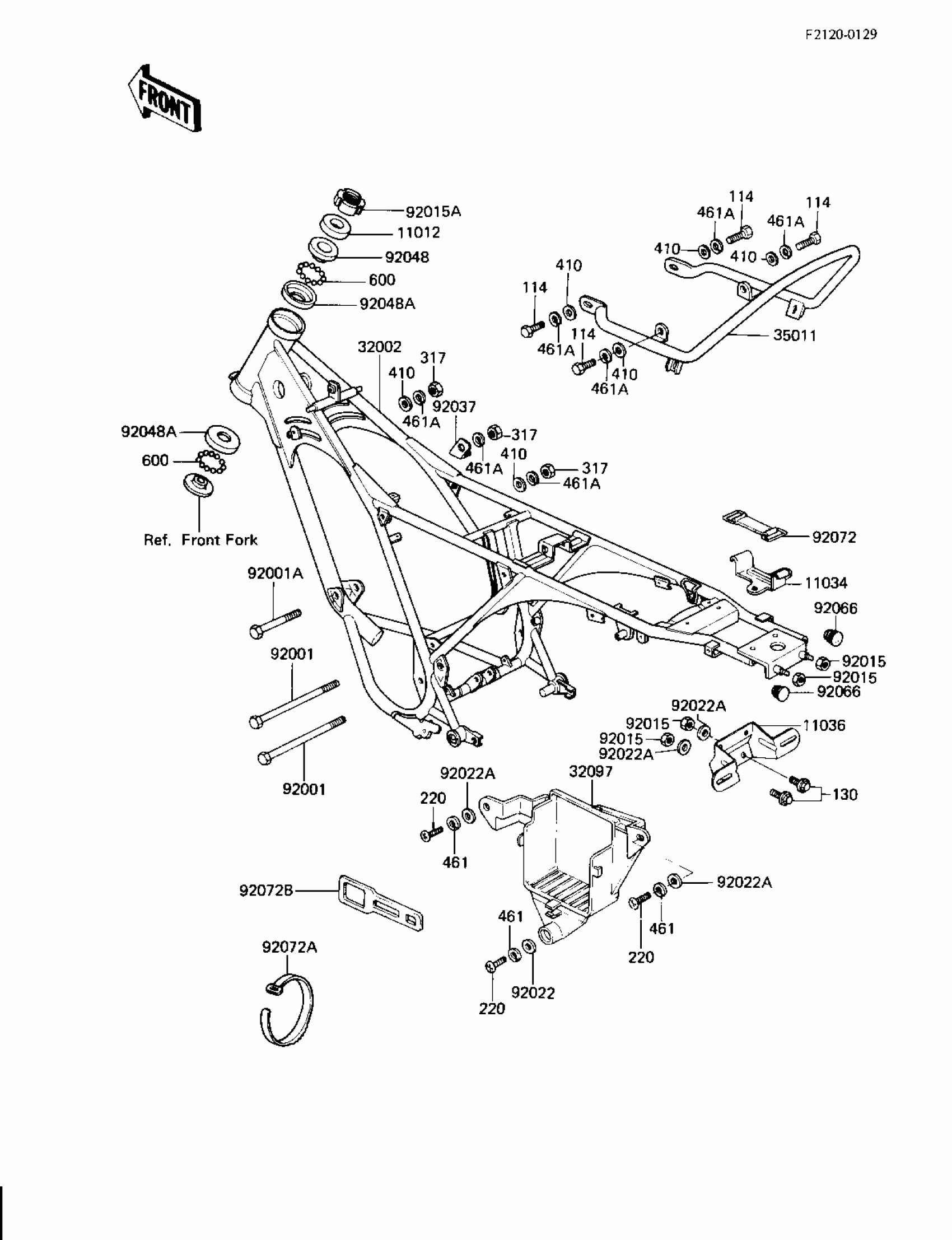

Kawasaki AR80-A1 FRAME/FRAME FITTINGS Diagram
#
Description
Price
11012
CAP,STEERING STEM
46098-004
$6.16
11034
BRACKET,TOOL KIT
11034-1991
Unavailable
11036
BRACKET,NUMBER PLATE
11036-1509
Unavailable
32002
FRAME-COMP
32002-1489
Unavailable
32097
CASE-BATTERY
32097-1032
$32.04
35011
STAY,REAR
35011-1134
$67.55
92001
BOLT,8X130
92001-1370
Unavailable
92001A
BOLT,8X70
92001-1389
Unavailable
92015
NUT,LOCK 6MM
92017-014
$7.51
92015A
NUT STEERING STEM LCK
92090-006
$15.04
92022
WASHER PLAIN
92022-024
$3.65
92022A
WASHER,6.5X20X1.6
92022-125
$1.40
92037
GUIDE,HOSE
13070-1232
Unavailable
92048
RACE,STEERING STEM BEARING
92047-014
$12.72
92048A
RACE,STEERING STEM BEARING
92048-009
$14.10
92066
PLUG,18X3
32112-009
Unavailable
92072
BAND
92072-012
$7.34
92072A
BAND,L=123
92072-030
$5.00
92072B
BAND,BATTERY
92072-1050
Unavailable
114
BOLT-SMALL-UPSET,8X22
115B0822
Unavailable
130
BOLT
130B0612
$0.67
220
SCREW-PAN-CROS,6X14
220B0614
$1.48
317
NUT-HEX-SMALL,8MM
317B0800
$0.67
410
WASHER PLAIN 8MM
410B0800
$0.93
461
WASHER SPRING 6MM
461F0600
$0.69
461A
WASHER SPRING 8MM
461F0800
$0.40
600
BALL-STEEL,3/16
600A0600
$1.07
