Description

Price

34003

HOLDER-STEP,FR,LH

34003-1138

$23.23

34003A

HOLDER-STEP,FR,RH

34003-1139

$23.23

34003B

HOLDER-STEP,RR,LH

34003-1140

$64.16

34003C

HOLDER-STEP,RR,RH

34003-1141

$64.16

34028

STEP,RR

34028-009

$26.11

34028A

STEP-ASSY,FR,LH

34027-1114

$35.42

34028B

STEP-ASSY,FR,RH

34027-1115

$42.54

92022

WASHER,12.5X28X3.0

92022-1228

$4.05

92022A

WASHER-PLAIN (OPT)

92022-199

Unavailable

92022B

WASHER,25X36X2.3

92022-250

$5.00

92043

PIN,6X28

92043-1464

$8.10

92043A

PIN,8X31

92043-080

$5.52

92075

RUBBER,REAR FOOTREST

92076-024

$24.87

110

BOLT HEX HEAD 10X25

110B1025

Unavailable

112

BOLT-UPSET,10X22

112B1022

$4.76

113

BOLT,HEX HEAD,10X25

113G1025

Unavailable

314

NUT-HEX-FINE,10MM

314B1000

$0.67

315

NUT-HEX-FINE

315B1200

$0.93

410

WASHER PLAIN 10MM

410B1000

$0.58

461

WASHER SPRING 10MM

461F1000

$0.67

461A

WASHER-SPRING,12MM

461F1200

$0.96

550

PIN COTTER 2.0X15

550D2015

$1.04

550A

PIN-COTTER,2.5X15

550D2515

$0.47

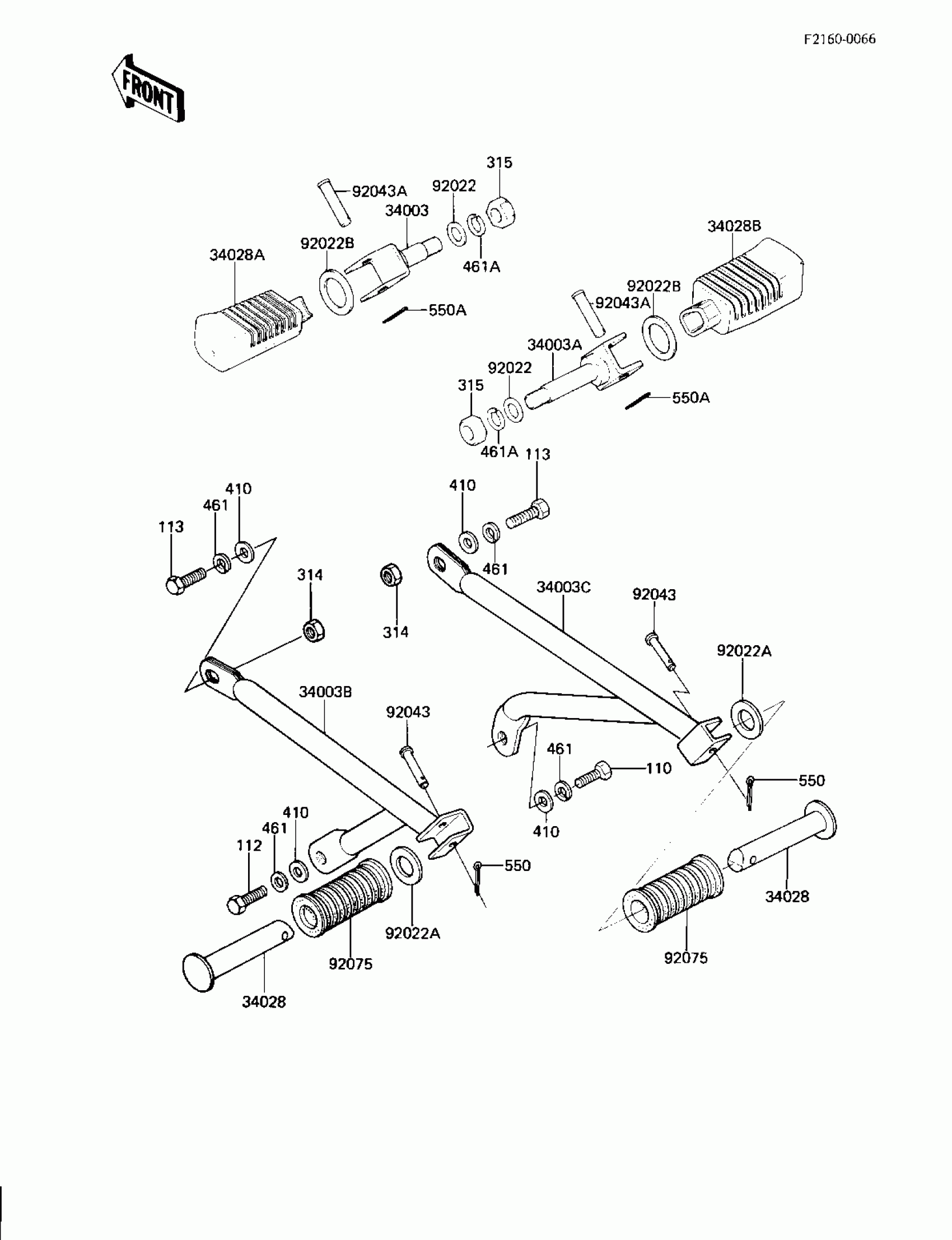

Kawasaki AR80-A1 FOOTRESTS Diagram

HOLDER-STEP,FR,LH

HOLDER-STEP,FR,RH

HOLDER-STEP,RR,LH

HOLDER-STEP,RR,RH

STEP,RR

STEP-ASSY,FR,LH

STEP-ASSY,FR,RH

WASHER,12.5X28X3.0

WASHER-PLAIN (OPT)

WASHER,25X36X2.3

PIN,6X28

PIN,8X31

RUBBER,REAR FOOTREST

BOLT HEX HEAD 10X25

BOLT-UPSET,10X22

BOLT,HEX HEAD,10X25

NUT-HEX-FINE,10MM

NUT-HEX-FINE

WASHER PLAIN 10MM

WASHER SPRING 10MM

WASHER-SPRING,12MM

PIN COTTER 2.0X15

PIN-COTTER,2.5X15
