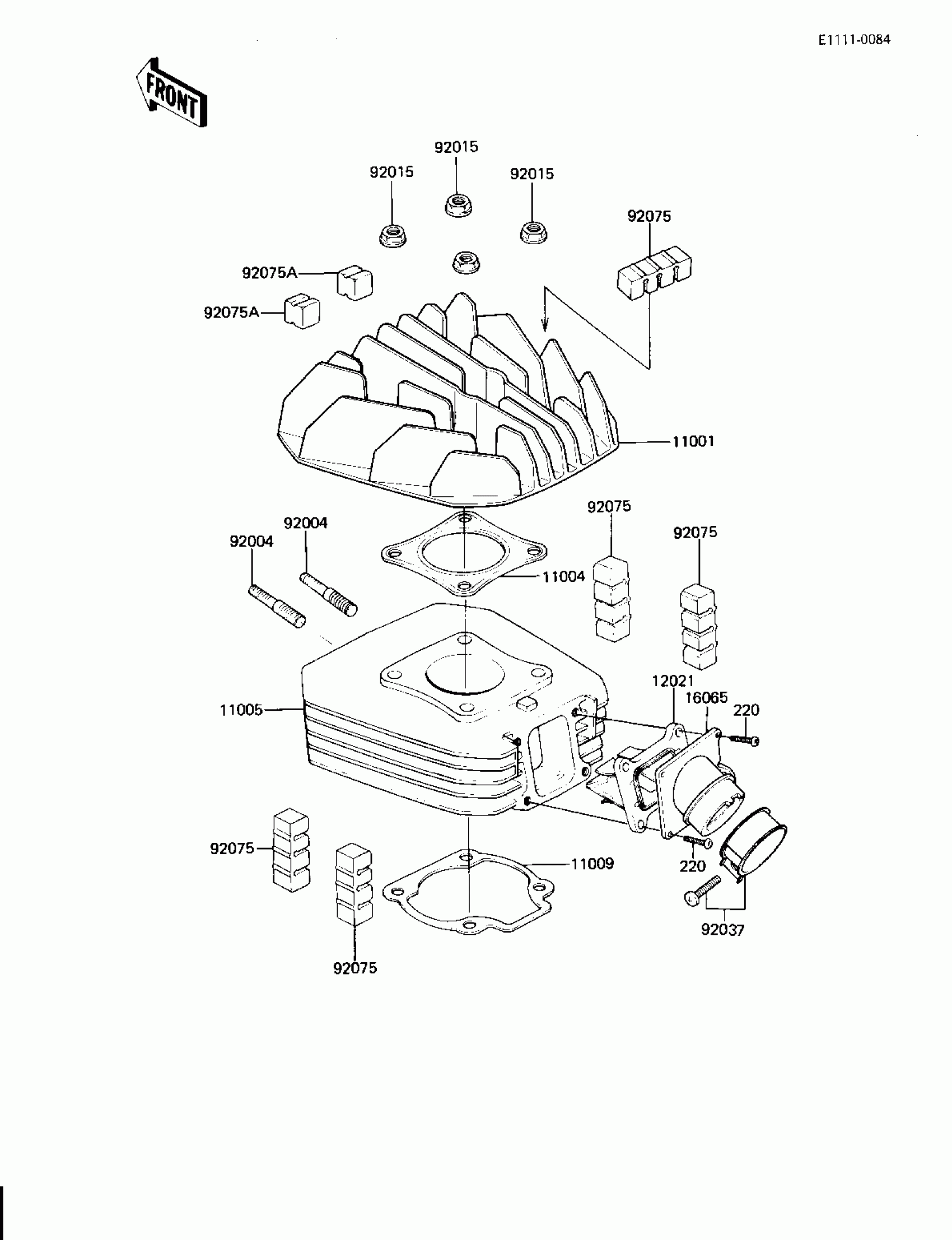

Kawasaki AR80-A1 CYLINDER HEAD/CYLINDER/REED VALVE Diagram

Description

Price

11001

HEAD-CYLINDER,F.BLACK

11001-1096

Unavailable

11004

GASKET-HEAD

11004-1179

$12.36

11005

CYLINDER-ENGINE,F.BLACK

11005-1194

Unavailable

11009

GASKET,CYLINDER BASE

11060-1171

$5.88

12021

VALVE-ASSY-REED

12021-1018

Unavailable

16065

HOLDER-CARBURETOR

16065-5003

Unavailable

92004

STUD

92004-029

$4.45

92015

NUT,FLANGED,8MM

92015-1014

$0.57

92037

CLAMP,CONNECTOR

92037-1127

$10.63

92075

DAMPER,CYLINDER

92075-1268

$8.27

92075A

DAMPER,CYLINDER HEAD

92075-1339

Unavailable

220

SCREW-PAN-CROS,6X20,WHITE

220B0620

$4.40
