Description

Price

11009

GASKET,10.5X16X1

92065-058

$3.96

13151

SWITCH-COMP,NEUTRAL

13151-1008

Unavailable

14002

CRANKCASE,LH

14002-1199

Unavailable

14002A

CRANKCASE,RH

14002-1200

Unavailable

14014

PLATE-POSITION

14014-1014

$4.69

92022

GASKET,10.5X16X1

92065-058

$3.96

92043

PIN,DOWEL,6.3X8X14

92042-007

$5.70

92045

BEARING-BALL,R-6304C3

92045-1059

$30.90

92046

BEARING-NEEDLE,BK1312 NTN

92046-1034

$19.48

92049

SEAL-OIL,SC22325

92049-1048

$8.86

92049A

SEAL-OIL,TB13225.5

92051-005

$7.74

92066

PLUG,DRAIN

92066-1241

$6.51

172

BOLT-STUD

172G0890

$5.89

220

SCREW-PAN-CROS,6X14

220B0614

$1.48

220A

SCREW PAN HEAD 6X40

220B0640

Unavailable

551

PIN-DOWEL,6X12

551A0612

$0.94

601

BEARING-BALL,#6201C3

601B6201

$10.98

601A

BEARING-BALL,#6203C3

601B6203

$14.12

601B

BEARING-BALL,#6203ZC3

601B6203Z

$27.81

653

OIL SEAL,TB20358

653B203508

$18.78

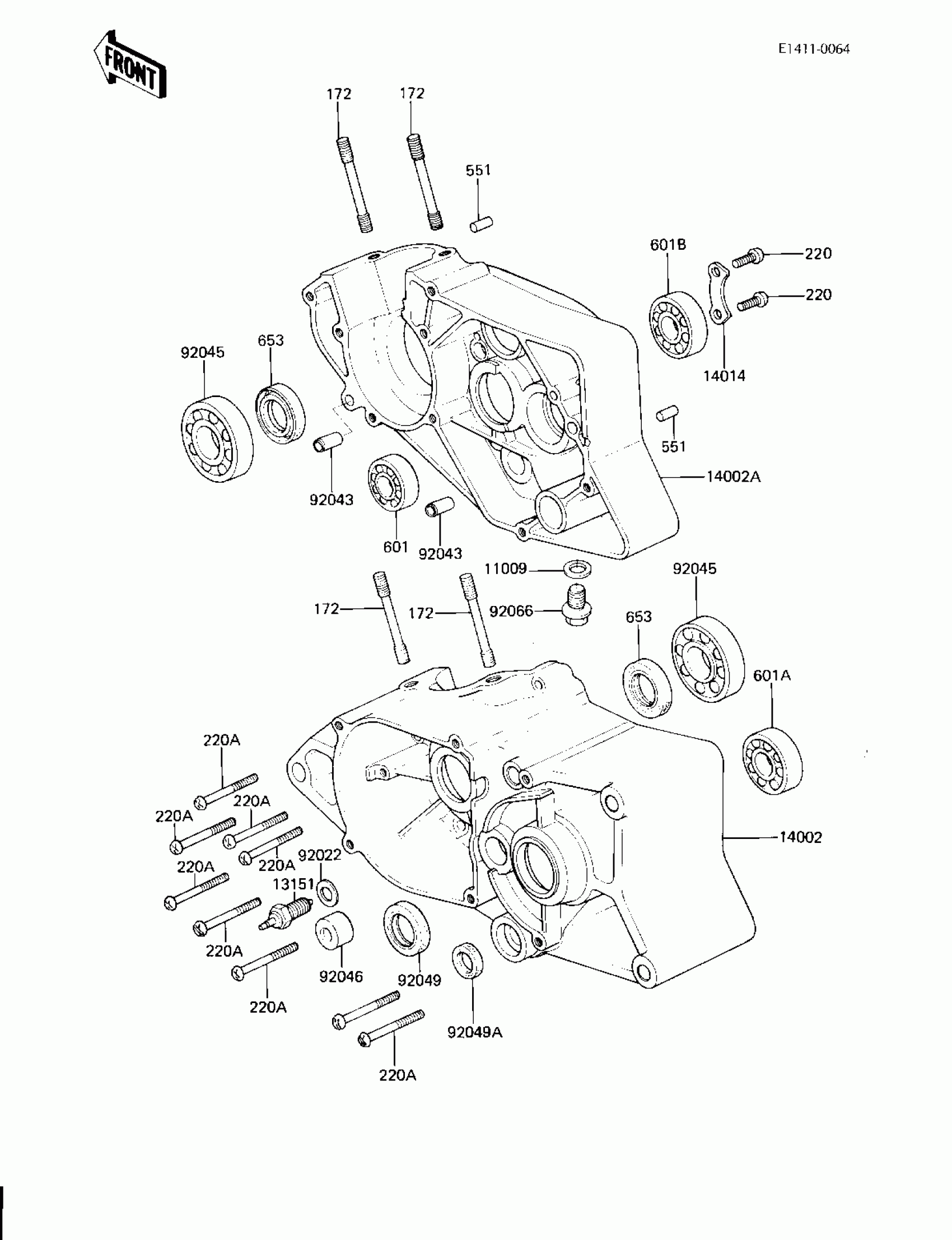

Kawasaki AR80-A1 CRANKCASE Diagram

GASKET,10.5X16X1

SWITCH-COMP,NEUTRAL

CRANKCASE,LH

CRANKCASE,RH

PLATE-POSITION

GASKET,10.5X16X1

PIN,DOWEL,6.3X8X14

BEARING-BALL,R-6304C3

BEARING-NEEDLE,BK1312 NTN

SEAL-OIL,SC22325

SEAL-OIL,TB13225.5

PLUG,DRAIN

BOLT-STUD

SCREW-PAN-CROS,6X14

SCREW PAN HEAD 6X40

PIN-DOWEL,6X12

BEARING-BALL,#6201C3

BEARING-BALL,#6203C3

BEARING-BALL,#6203ZC3

OIL SEAL,TB20358
