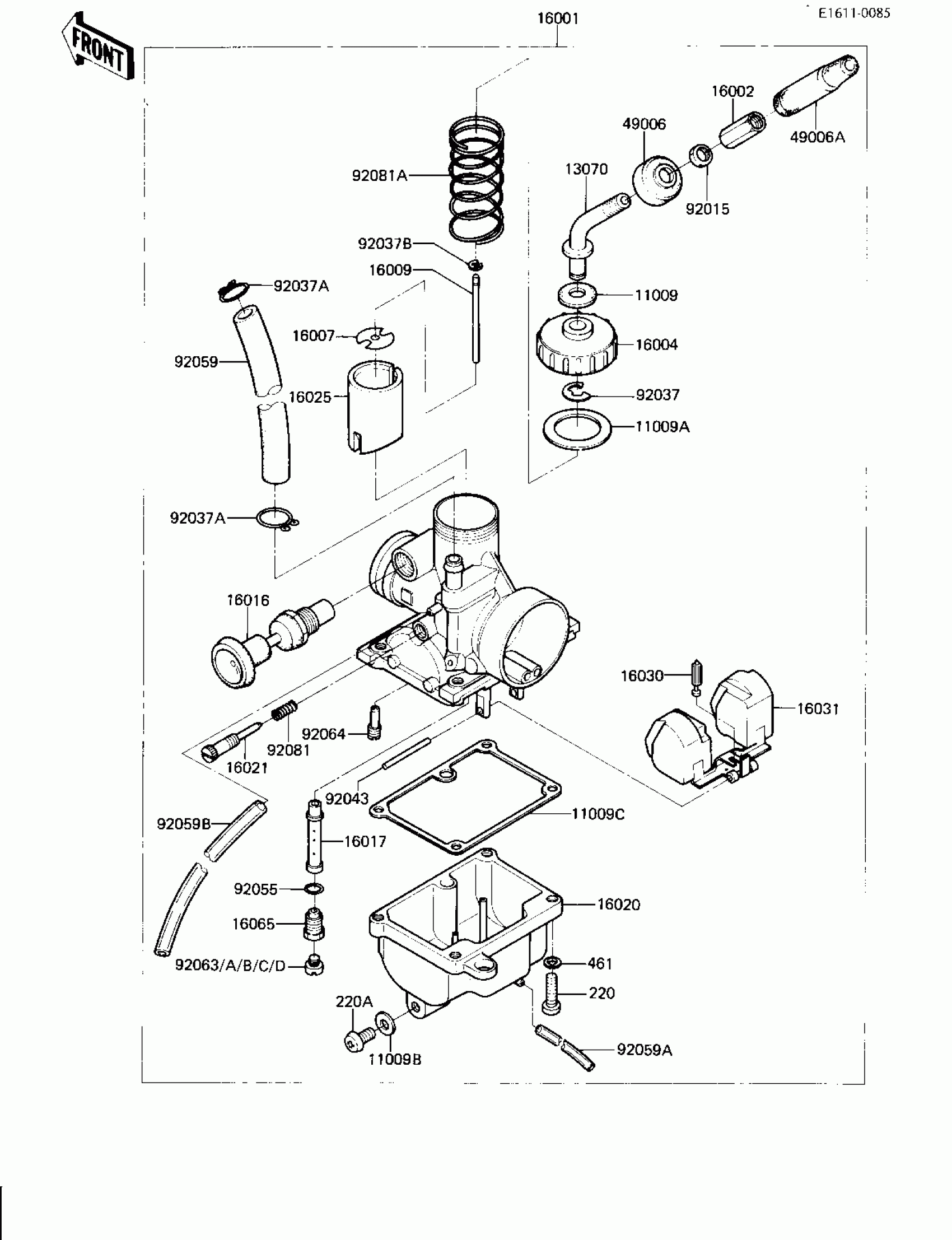

Kawasaki AR80-A1 CARBURETOR 1/2 Diagram

#

Description
Price

11009

GASKET,CABLE GUIDE

11009-1074

Unavailable

11009A

GASKET,MIXING CHAMBER

11009-1295

Unavailable

11009B

GASKET,DRAIN PLUG

11009-1296

Unavailable

11009C

GASKET,FLOAT CHAMBER

11009-1297

Unavailable

13070

GUIDE,THROTTLE CABLE

13070-1068

Unavailable

16001

CARBURETOR

16001-1585

$183.75

16002

ADJUSTER-CABLE

16002-1011

$10.00

16004

CAP-CHAMBER,MIXING

16004-1016

$17.93

16007

SEAT-SPRING

16007-1044

Unavailable

16009

NEEDLE-JET,4D44

16009-1124

$29.00

16016

PLUNGER,STARTER

16016-1025

$36.03

16017

JET-NEEDLE,O-5

16017-1115

$31.61

16020

CHAMBER-FLOAT

16020-1006

$60.33

16021

SCREW-THROTTLE STOP

16021-1036

Unavailable

16025

VALVE-THROTTLE,CA1.5

16025-1076

$84.83

16030

VALVE-FLOAT

16030-1026

Unavailable

16031

FLOAT

16031-1020

$58.01

16065

HOLDER,NEEDLE JET

16065-1062

$12.37

49006

BOOT,MIXING CHAMBER CAP

49006-1083

$5.27

49006A

BOOT,CABLE ADJUSTER

49006-1084

$6.16

92015

NUT,CABLE ADJUST LOCK

16003-004

$7.34

92037

CLAMP,CABLE GUIDE

16008-011

Unavailable

92037A

CLAMP,TUBE

92037-072

$7.22

92037B

CLAMP

92037-1272

Unavailable

92043

PIN,FLOAT

92043-1126

$5.59

92055

RING-O

92055-044

$10.38

92059

HOSE,FUEL TAP DIAPHRA

92059-1023

$16.60

92059A

TUBE,3X5X250,BLACK

92059-1308

Unavailable

92059B

TUBE,3X5X85

92059-1244

$4.59

92063

JET-MAIN,#A60R

92063-1124

$6.21

92063A

JET-MAIN,#A62.5R

92063-1125

$10.60

92063B

JET-MAIN,#A65R

92063-1126

$10.60

92063C

JET-MAIN,#A57.5R

92063-1127

$10.63

92063D

JET-MAIN,#A67.5R

92063-1128

$10.60

92064

JET-PILOT,#A25

92064-1059

$12.40

92081

SPRING,STOP SCREW

92081-1153

$4.96

92081A

SPRING,THROTTLE VALVE

92081-1490

Unavailable

220

SCREW PAN HEAD 4X16

220B0416

$1.66

220A

SCREW PAN HEAD 5X8

220B0508

$0.46

461

WASHER SPRING 4MM

461F0400

Unavailable
