1982 Kawasaki AR80-A1 Brake Pedal/torque Link Diagram

← All diagrams

Find the part on the Brake Pedal/torque Link diagram for your 1982 Kawasaki AR80-A1, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

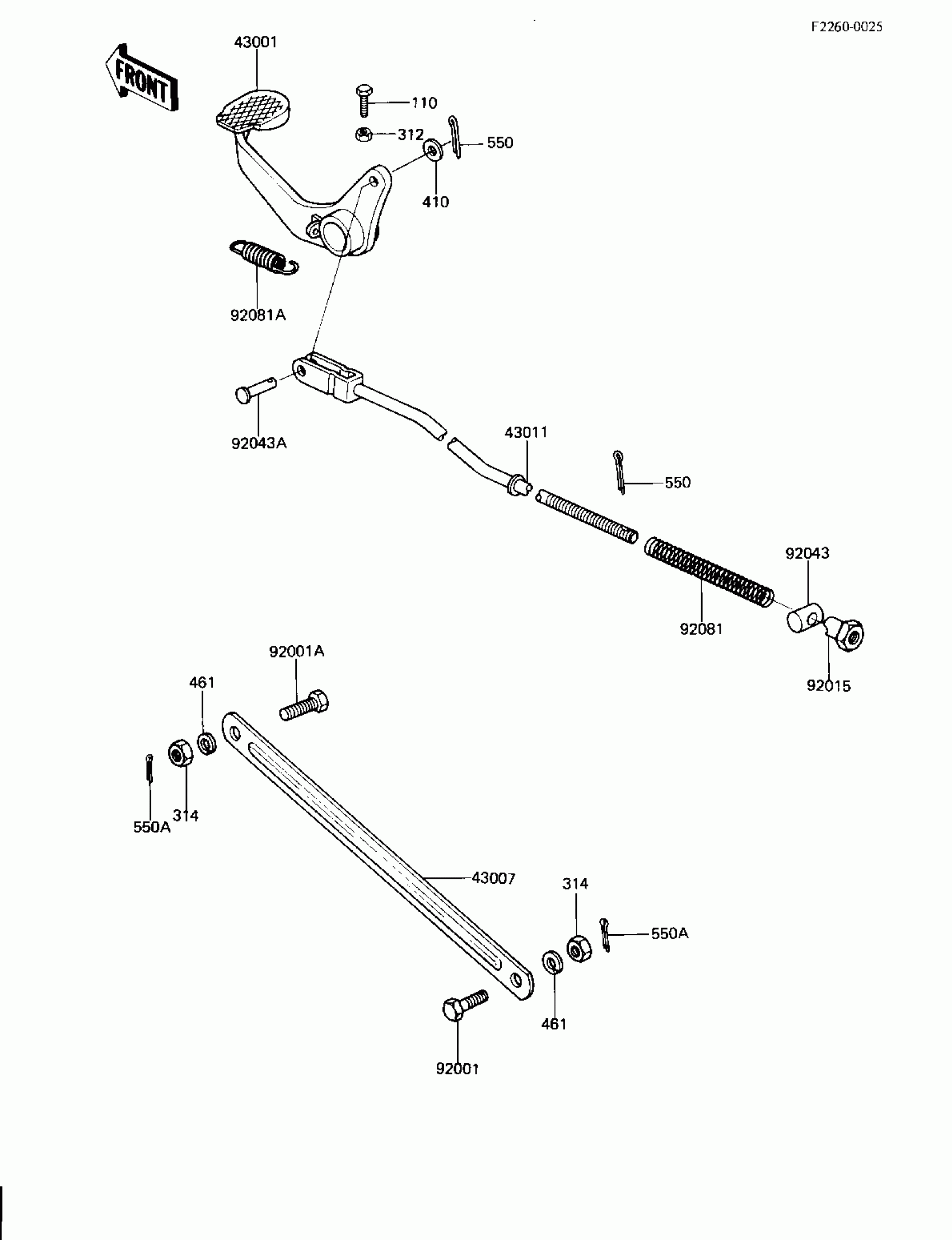

1982 Kawasaki AR80-A1 Brake Pedal/torque Link Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

43001

LEVER-BRAKE,F.BLACK

43001-1054

1
Out of stock

43007

ROD-TORQUE

43007-1020

1
Out of stock

43011

ROD-BRAKE

43011-1047

1
Out of stock

92001

BOLT,10X32

92003-003

1
Out of stock

92001A

BOLT,10X25

92003-017

1
Out of stock

92015

NUT,BRAKE ROD

92015-042

1
Out of stock

92043

PIN,BRAKE ROD

92043-039

1
Out of stock

92043A

PIN,6X17

92043-064

1
Out of stock

92081

SPRING,BRAKE ROD

43012-001

1
Out of stock

92081A

SPRING,BRAKE RETURN

92081-1044

1
Out of stock

110

BOLT-UPSET,6X20

112G0620

1
Out of stock

312

NUT 6MM

312B0600

1
Out of stock

314

NUT-HEX-FINE,10MM

314B1000

1
Out of stock

410

WASHER-PLAIN-SMALL,6MM

410B0600

1
Out of stock

461

WASHER SPRING 10MM

461F1000

1
Out of stock

550

PIN COTTER 2.0X15

550D2015

1
Out of stock

550A

PIN-COTTER,2.0X20

550D2020

1
Out of stock
