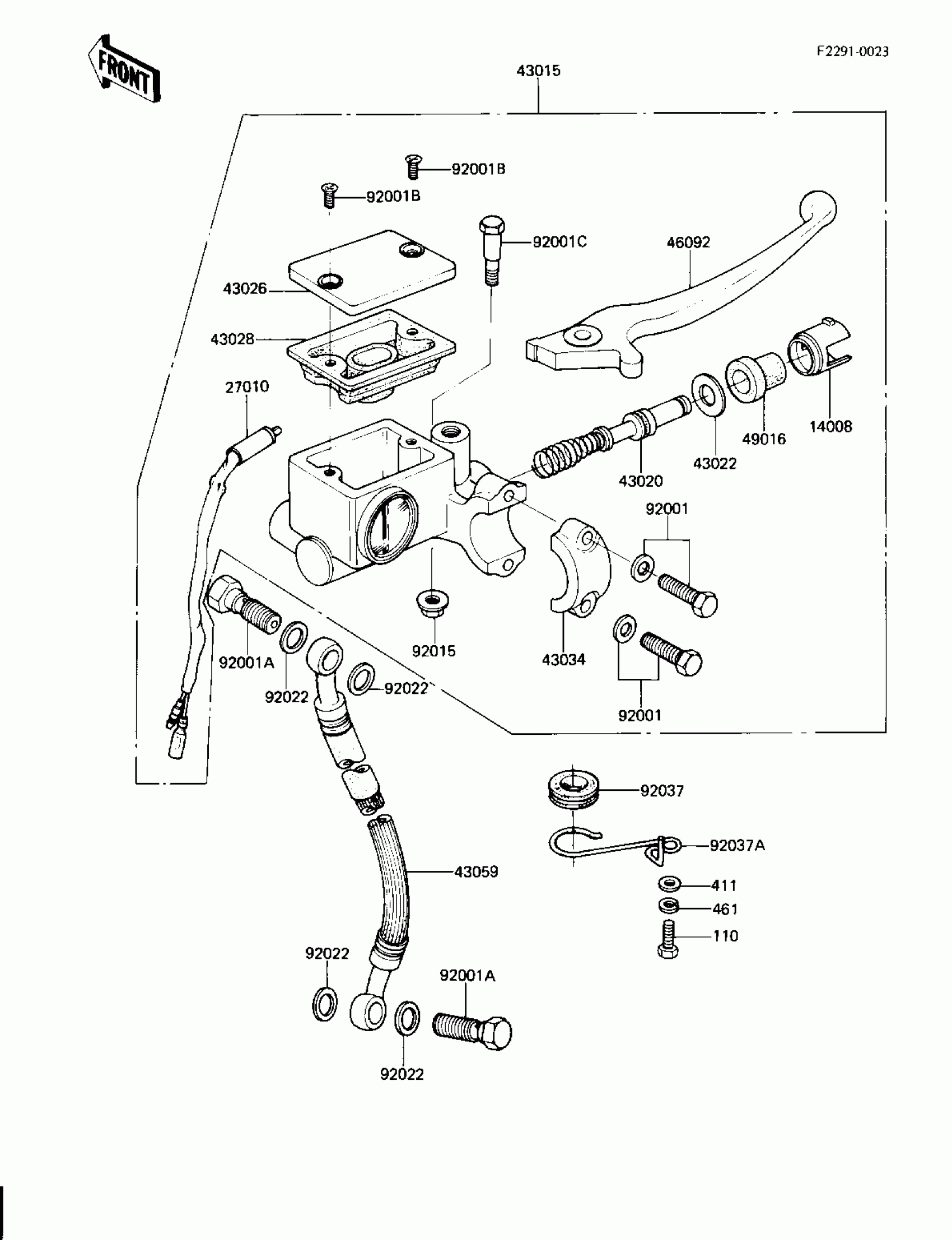

Kawasaki AR80-A1 FRONT MASTER CYLINDER Diagram

Description

Price

14008

LINER

14008-1030

Unavailable

27010

SWITCH,BRAKE LAMP

27010-1095

$24.97

43015

CYLINDER-ASSY-MASTER

43015-1154

Unavailable

43020

PISTON-COMP-BRAKE

43020-1021

$67.26

43022

STOPPER-BRAKE

43022-1008

Unavailable

43026

CAP-BRAKE

43026-1020

$39.94

43028

DIAPHRAGM

43028-1022

Unavailable

43034

HOLDER-BRAKE

43034-1012

Unavailable

43059

HOSE-BRAKE,FR

43059-1607

$98.44

46092

LEVER-GRIP,FRONT BRAK

46092-1016

Unavailable

49016

COVER-SEAL

49016-1035

$8.22

92001

BOLT,6X25,W/WASHER

43033-003

Unavailable

92001A

BOLT,OIL,L=23

92002-1888

$4.15

92001B

SCREW-CSK-CROS,5X12,BLACK

92001-1055

$4.59

92001C

BOLT,FR BRAKE LEVER

92001-1056

Unavailable

92015

NUT

92015-1141

$4.12

92022

WASHER,10.5X15X1.5

43067-001

$1.57

92037

GROMMET,HOSE CLAMP

43064-006

$3.29

92037A

CLAMP,HOSE

92037-1262

Unavailable

110

BOLT-UPSET,6X16

112C0616

Unavailable

411

WASHER PLAIN

411F0600

$0.95

461

WASHER-SPRING,6MM,BLACK

461K0600

Unavailable
