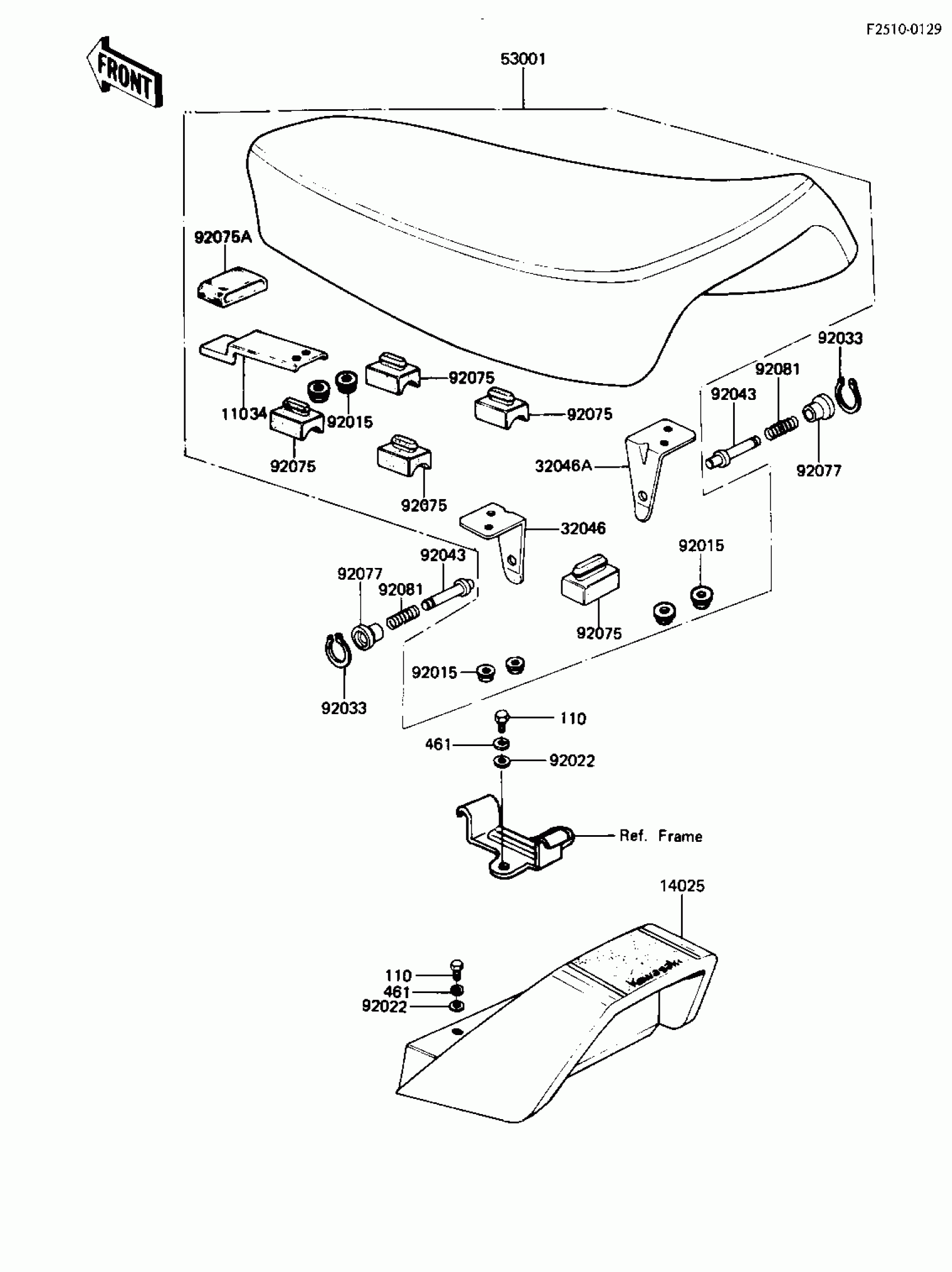

Kawasaki AR50-A1 SEAT/SEAT COVER Diagram

Description

Price

11034

BRACKET,SEAT,FR

11034-1427

Unavailable

14025

COVER,SEAT,F.RED

14025-1275-6L

Unavailable

32046

BRACKET-SEAT,LH

32046-1111

$7.80

32046A

BRACKET-SEAT,RH

32046-1112

$6.60

53001

SEAT-ASSY,DUAL

53001-1100

$225.27

92015

NUT,FLANGED,6MM

92015-1078

Unavailable

92022

WASHER,6.5X20X1.6

92022-125

$1.40

92033

RING-SNAP,8MM

92033-1039

$4.26

92043

PIN,SEAT STOPPER

92043-1036

$6.54

92075

DAMPER,SEAT

92075-1153

$5.24

92075A

DAMPER,SEAT

92075-219

Unavailable

92077

KNOB,SEAT STOPPER

92077-1007

$6.12

92081

SPRING,SEAT STOPPER

92081-1135

$4.12

110

BOLT-UPSET

112G0618

$1.01

461

WASHER SPRING 6MM

461F0600

$0.69
