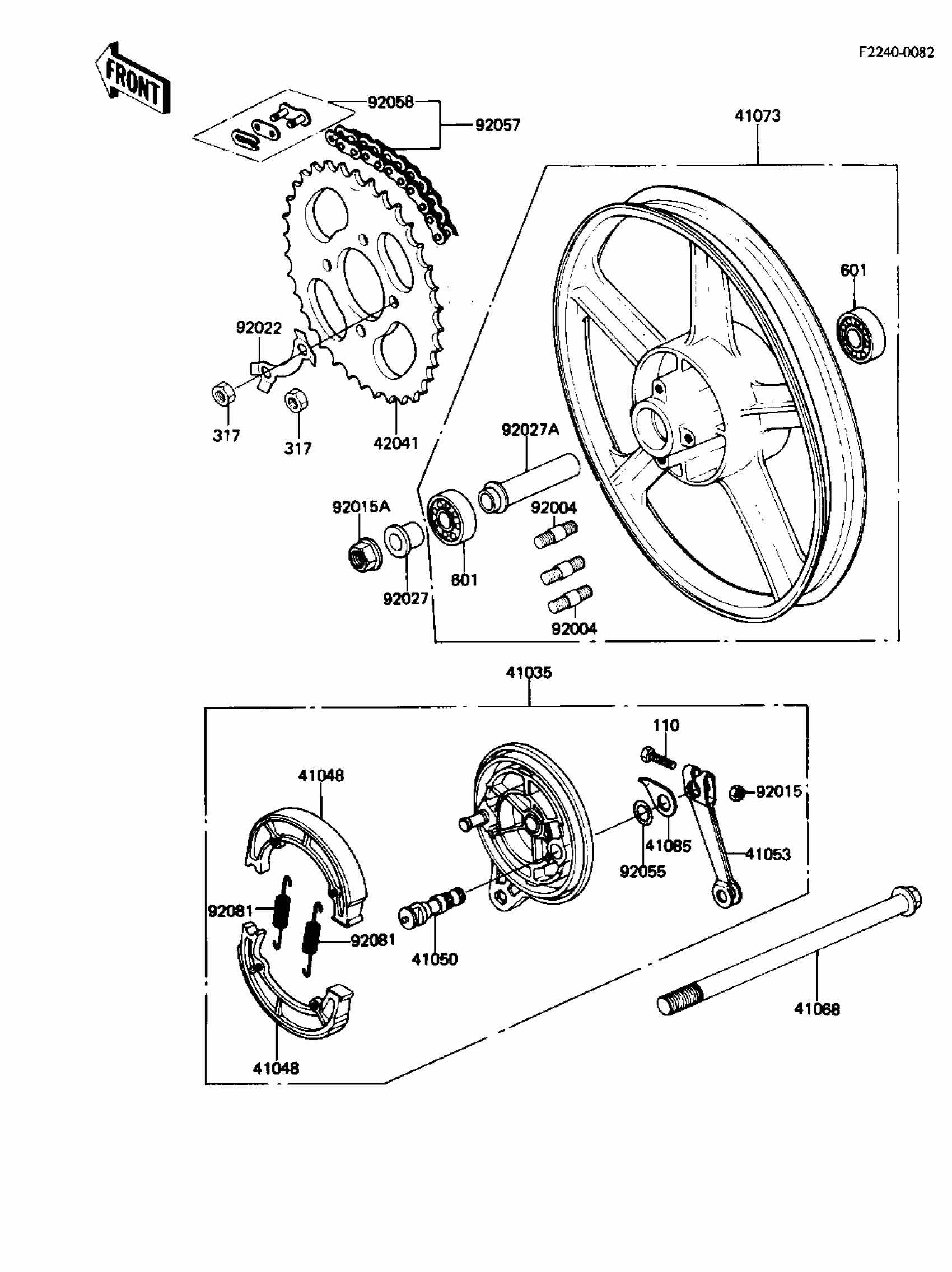

Kawasaki AR50-A1 REAR WHEEL/HUB/BRAKE/CHAIN Diagram

Description

Price

41035

PANEL-ASY,RR BRK

41035-1048

$116.24

41048

SHOE-BRAKE

41048-1085

$22.53

41050

CAM SHAFT,FRONT BRAKE

41050-012

$19.60

41053

LEVER-BRAKE CAM

41053-1002

Unavailable

41068

AXLE,RR,L=200

41068-1093

Unavailable

41073

WHEEL-ASSY,SOLID

41073-1133

$502.30

41085

INDICATOR,BRAKE SHOE

41085-003

$14.51

42041

SPROCKET-HUB,46T

42041-1067

$46.26

92004

STUD,8X15

92004-1014

Unavailable

92015

NUT,6MM

41072-007

$3.92

92015A

NUT,FLANGED,12MM

92015-1156

Unavailable

92022

WASHER

92022-1291

Unavailable

92027

COLLAR,12.1X22X20

92027-1317

Unavailable

92027A

COLLAR,L=85

92027-1319

Unavailable

92055

RING-O,BRAKE CAM

92055-004

$4.80

92057

CHAIN,DRIVE,EK420RX11

92057-1333

$59.72

92058

JOINT-CHAIN

92058-1019

$5.61

92081

SPRING,BRAKE SHOE

92081-1766

$8.03

110

BOLT-UPSET

112G0630

$1.36

317

NUT-HEX-SMALL,8MM

317B0800

$0.67

601

BEARING BALL #6301Z

601B6301Z

$14.46
