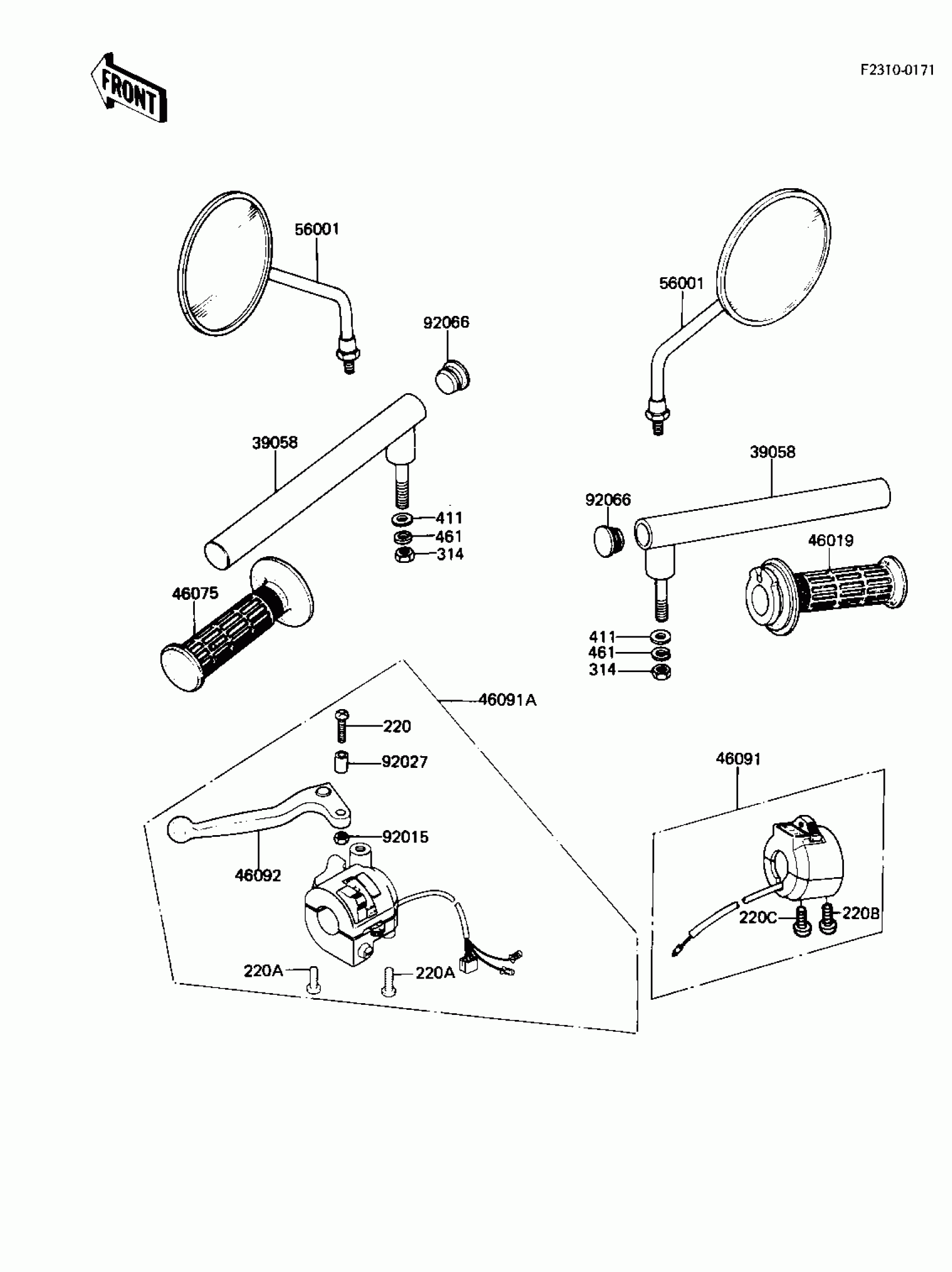

Kawasaki AR50-A1 HANDLEBAR Diagram

Description

Price

39058

HANDLE-COMP

39058-1001

Unavailable

46019

GRIP-ASSY,THROTTLE

46019-1011

Unavailable

46075

GRIP,LH

46075-1004

$16.08

46091

HOUSING-ASSY-CONTROL,

46091-1111

$51.45

46091A

HOUSING-ASSY-CONTROL,

46091-1236

$109.64

46092

LEVER-GRIP,CLUTCH

46092-1017

Unavailable

56001

MIRROR-ASSY

56001-1339

$30.23

92015

NUT,LOCK,5MM

92019-014

$4.50

92027

COLLAR,LEVER

92027-1042

Unavailable

92066

PLUG,18X3

32112-009

Unavailable

220

SCREW PAN HEAD 5X22

220B0522

$0.74

220A

SCREW PAN HEAD 5X30

220B0530

$3.41

220B

SCREW-PAN-CROS

220B0535

$3.70

220C

SCREW-PAN-CROS

220B0540

$3.41

314

NUT-HEX-FINE,10MM

314B1000

$0.67

411

WASHER-PLAIN,10MM

411B1000

$0.93

461

WASHER SPRING 10MM

461F1000

$0.67
