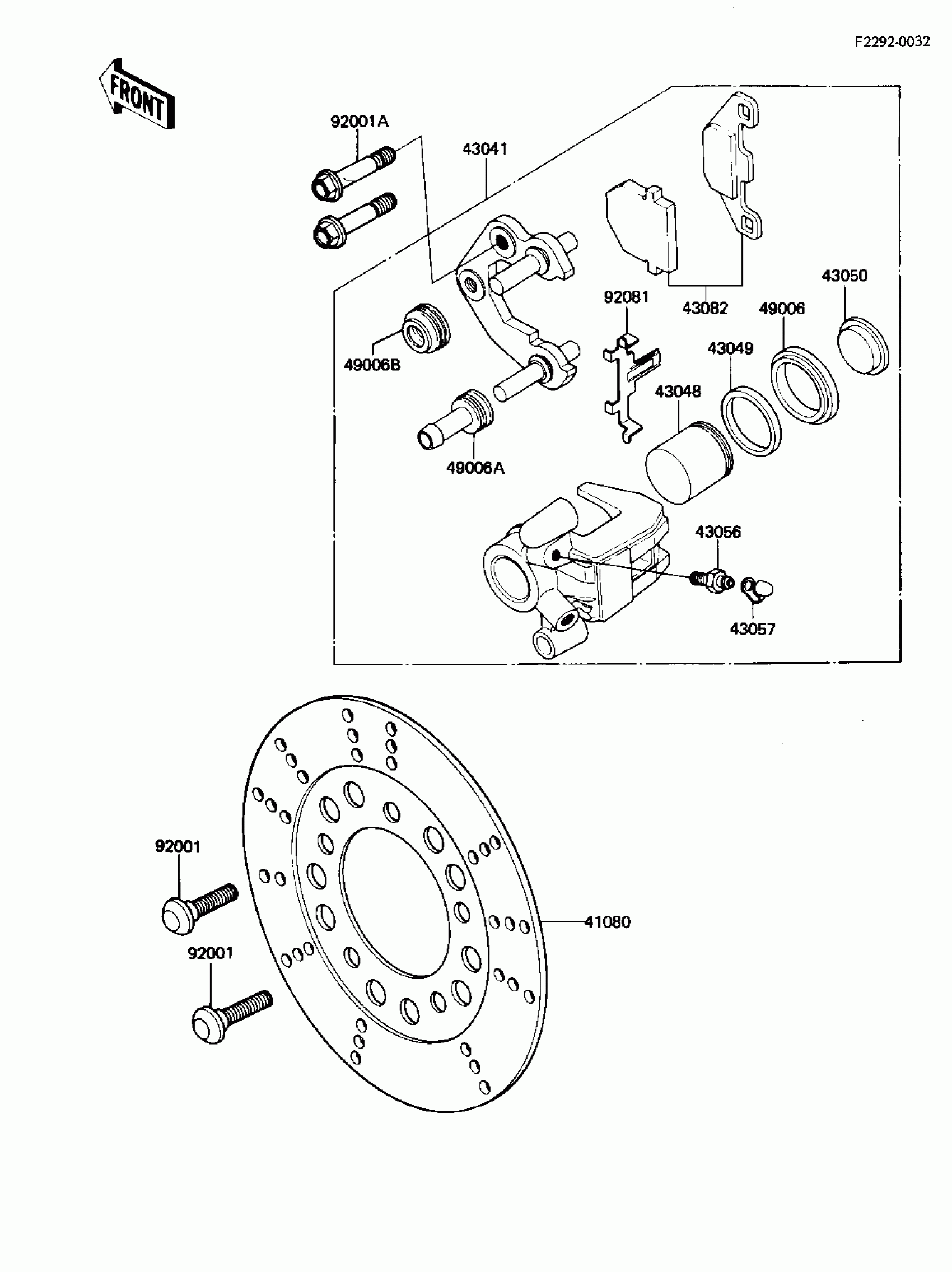

Kawasaki AR50-A1 FRONT BRAKE Diagram

Description

Price

41080

DISC,FR,SILVER

41080-1140

$277.27

43041

CALIPER-ASSY

43041-1044

$307.11

43048

PISTON-CALIPER

43048-1008

$60.12

43049

PACKING

43049-1016

$10.39

43050

PAD-BRAKE

43050-1040

$13.66

43056

BREATHER

43056-003

$24.57

43057

CAP-BREATHER

43057-003

$2.45

43082

PAD-ASSY-BRAKE

43082-1017

$50.42

49006

BOOT,PISTON SEAL

49006-1053

$21.93

49006A

BOOT,CALIPER

49006-1054

$11.61

49006B

BOOT,CALIPER

49006-1055

$7.27

92001

BOLT,DISC PLATE,8X30

92001-1951

$4.69

92001A

BOLT

92001-1415

$4.06

92081

SPRING,PAD

92081-1341

$14.76
