1982 Kawasaki AR50-A1 Frame/frame Fittings Diagram

← All diagrams

Find the part on the Frame/frame Fittings diagram for your 1982 Kawasaki AR50-A1, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

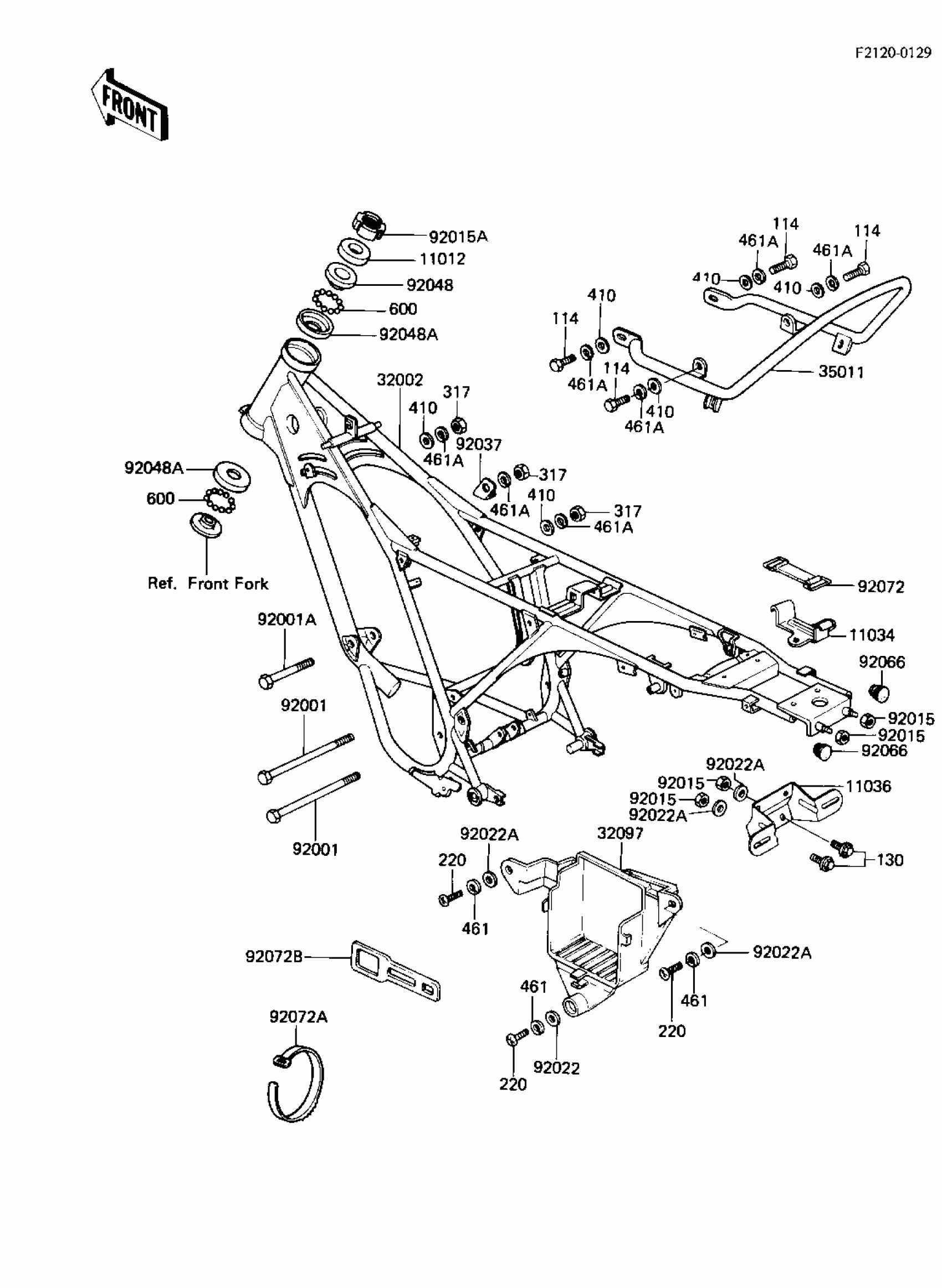

1982 Kawasaki AR50-A1 Frame/frame Fittings Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11012

CAP,STEERING STEM

46098-004

1
Out of stock

11034

BRACKET,TOOL KIT

11034-1991

1
Out of stock

11036

BRACKET,NUMBER PLATE

11036-1509

1
Out of stock

32002

FRAME-COMP

32002-1489

1
Out of stock

32097

CASE-BATTERY

32097-1032

1
Out of stock

35011

STAY,REAR

35011-1134

1
Out of stock

92001

BOLT,8X130

92001-1370

1
Out of stock

92001A

BOLT,8X70

92001-1389

1
Out of stock

92015

NUT,LOCK 6MM

92017-014

1
Out of stock

92015A

NUT STEERING STEM LCK

92090-006

1
Out of stock

92022

WASHER PLAIN

92022-024

1
Out of stock

92022A

WASHER,6.5X20X1.6

92022-125

1
Out of stock

92037

GUIDE,HOSE

13070-1232

1
Out of stock

92048

RACE,STEERING STEM BEARING

92047-014

1
Out of stock

92048A

RACE,STEERING STEM BEARING

92048-009

1
Out of stock

92066

PLUG,18X3

32112-009

1
Out of stock

92072

BAND

92072-012

1
Out of stock

92072A

BAND,L=123

92072-030

1
Out of stock

92072B

BAND,BATTERY

92072-1050

1
Out of stock

114

BOLT-SMALL-UPSET,8X22

115B0822

1
Out of stock

130

BOLT

130B0612

1
Out of stock

220

SCREW-PAN-CROS,6X14

220B0614

1
Out of stock

317

NUT-HEX-SMALL,8MM

317B0800

1
Out of stock

410

WASHER PLAIN 8MM

410B0800

1
Out of stock

461

WASHER SPRING 6MM

461F0600

1
Out of stock

461A

WASHER SPRING 8MM

461F0800

1
Out of stock

600

BALL-STEEL,3/16

600A0600

1
Out of stock
