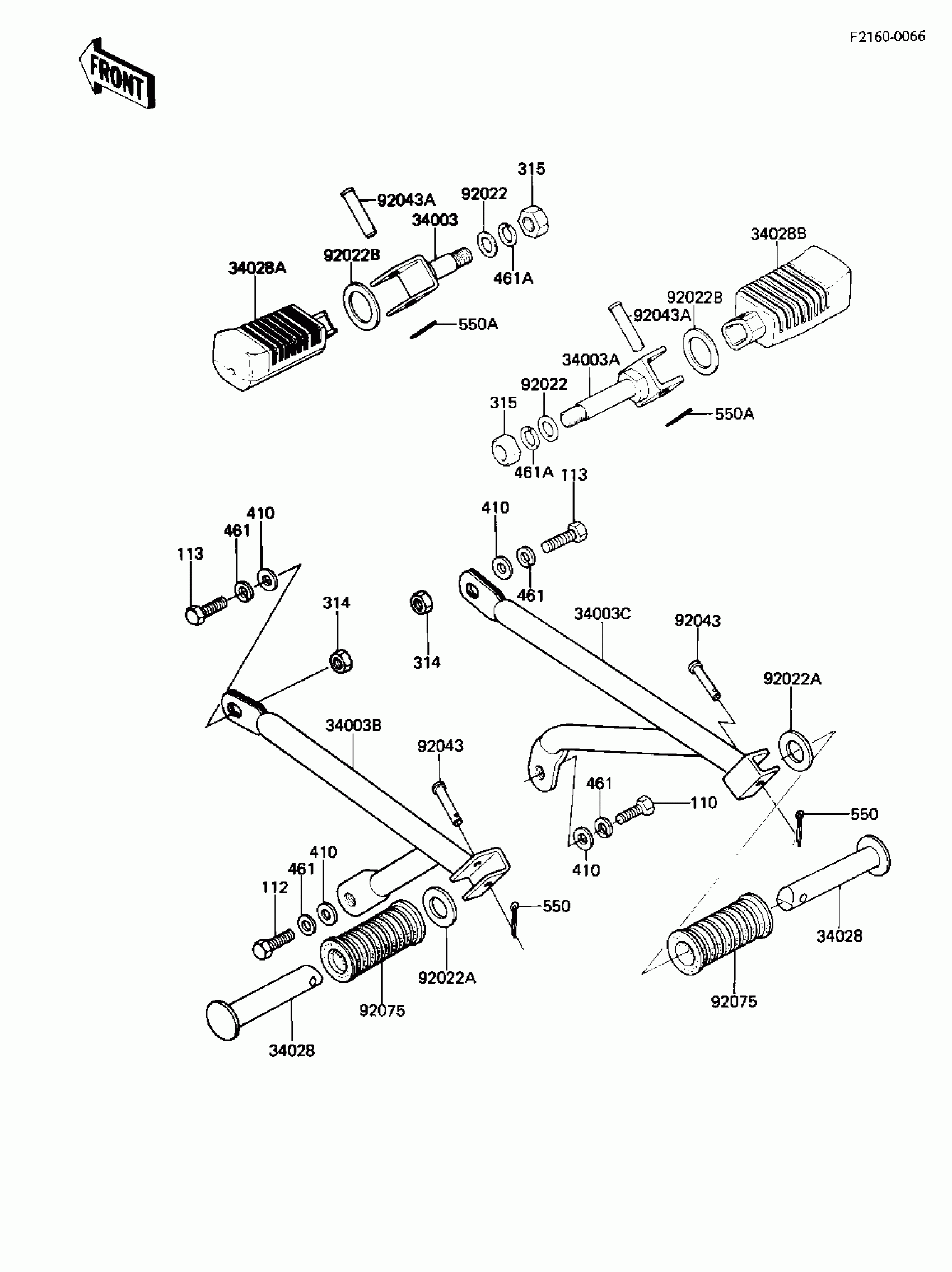

Kawasaki AR50-A1 FOOTRESTS Diagram

#

Description
Price

34003

HOLDER-STEP,FR,LH

34003-1138

$20.97

34003A

HOLDER-STEP,FR,RH

34003-1139

$20.97

34003B

HOLDER-STEP,RR,LH

34003-1140

$64.58

34003C

HOLDER-STEP,RR,RH

34003-1141

$64.58

34028

STEP,RR

34028-009

$24.51

34028A

STEP-ASSY,FR,LH

34027-1114

$36.09

34028B

STEP-ASSY,FR,RH

34027-1115

$43.36

92043A

PIN,8X31

92043-080

$5.03

92075

RUBBER,REAR FOOTREST

92076-024

$20.16

110

BOLT HEX HEAD 10X25

110B1025

Unavailable

112

BOLT-UPSET,10X22

112B1022

Unavailable

113

BOLT,HEX HEAD,10X25

113G1025

Unavailable

314

NUT-HEX-FINE,10MM

314B1000

Unavailable

315

NUT-HEX-FINE

315B1200

Unavailable

410

WASHER PLAIN 10MM

410B1000

Unavailable

461

WASHER SPRING 10MM

461F1000

Unavailable

461A

WASHER-SPRING,12MM

461F1200

Unavailable

550

PIN COTTER 2.0X15

550D2015

Unavailable

550A

PIN-COTTER,2.5X15

550D2515

$0.47
