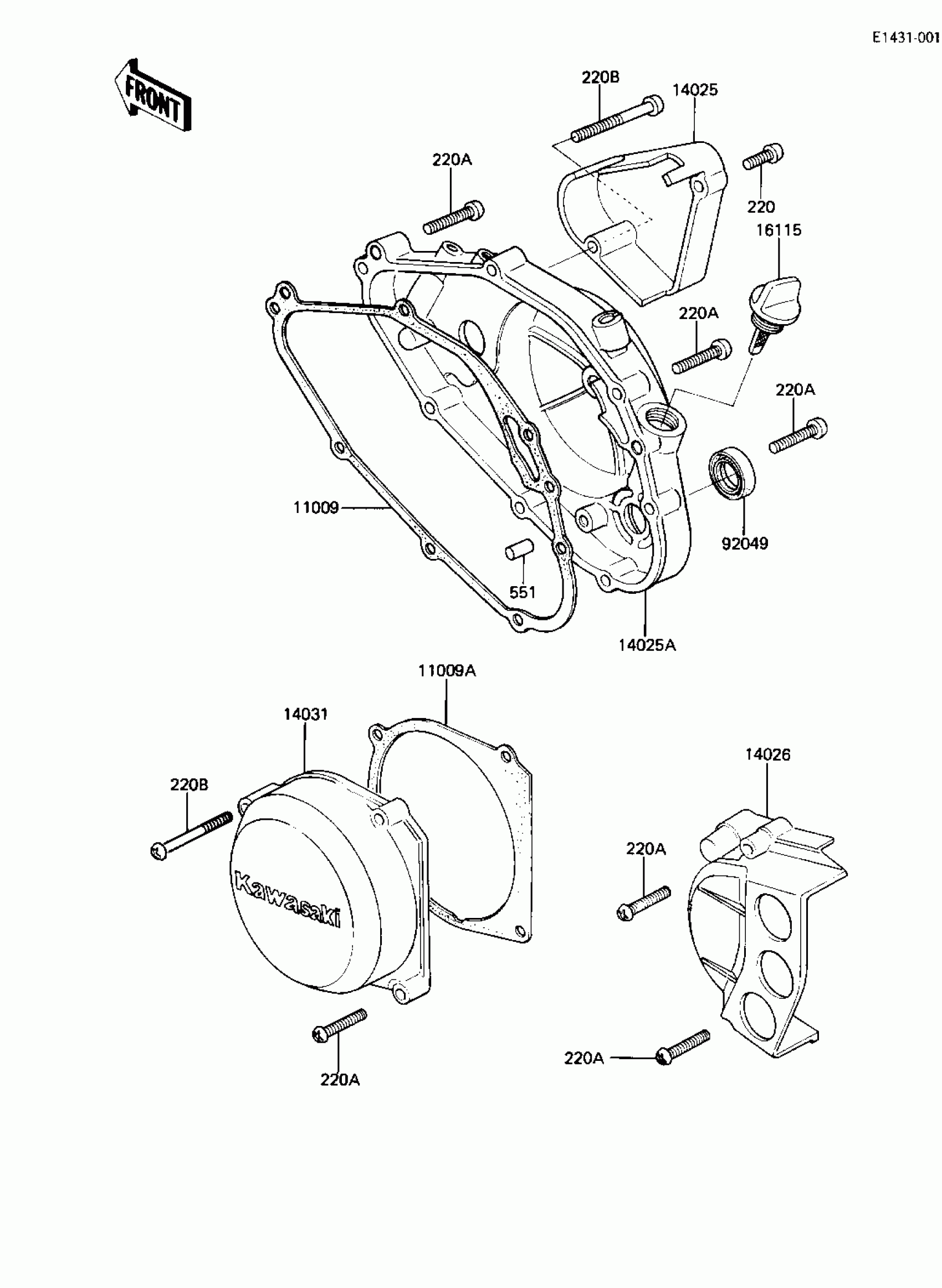

Kawasaki AR50-A1 ENGINE COVERS Diagram

#

Description

Price

11009

GASKET,CLUTCH COVER

11060-1173

$19.09

11009A

GASKET,GENERATOR COVER

11009-1214

Unavailable

14025

COVER,OIL PUMP

14025-1382

Unavailable

14025A

COVER,CLUTCH

14025-5039

Unavailable

14026

COVER-CHAIN

14026-1037

Unavailable

14031

COVER-GENERATOR

14031-1058

Unavailable

16115

CAP-OIL FILLER

16115-1006

Unavailable

92049

SEAL-OIL,TB16267

92051-003

Unavailable

220

SCREW-PAN-CROS,6X14

220B0614

$1.48

220A

SCREW PAN HEAD 6X30

220B0630

$3.41

220B

SCREW PAN HEAD 6X40

220B0640

Unavailable

551

PIN-DOWEL

551A0628

$4.52
