Description

Price

13001

PISTON-ENGINE,STD

13001-1074

Unavailable

13002

PIN-PISTON

13002-1014

Unavailable

13008

RING-SET-PISTON,STD

13008-5040

Unavailable

13024

RING-SET PISTON LL

13024-1008

Unavailable

13025

RING-SET PISTON L

13025-1008

Unavailable

13027

PISTON-ENGINE LL

13027-1023

Unavailable

13029

PISTON-ENGINE L

13029-1023

Unavailable

13031

CRANKSHAFT-COMP

13031-1075

Unavailable

13033

BEARING-SMALL END

13033-1009

$25.27

13034

BEARING-BIG END,PK18X24X11.8X3

13034-1029

Unavailable

13035

PIN-CRANK

13035-1073

Unavailable

13037

CRANKSHAFT,LH

13037-1109

Unavailable

13037A

CRANKSHAFT,RH

13037-1110

Unavailable

13044

SET-CONNECTING ROD

13044-5020

Unavailable

13097

GEAR-PRIMARY SPUR,21T

13097-1052

Unavailable

92015

NUT,FLANGED,10MM

92015-1415

$4.69

92022

WASHER,PLAIN

92022-268

Unavailable

92025

SHIM,CRANK SHAFT

92025-1199

Unavailable

92027

COLLAR,15.65X19X13

92027-1358

$8.95

92033

RING-SNAP,PISTON PIN

92036-007

$3.89

92075

DAMPER,GEAR

92075-1325

Unavailable

480

CIRCLIP-TYPE-C,14MM

480J1400

$5.00

551

PIN-DOWEL,2X12

551A0212

$2.52

551A

PIN-DOWEL,3X6

551A0306

$1.34

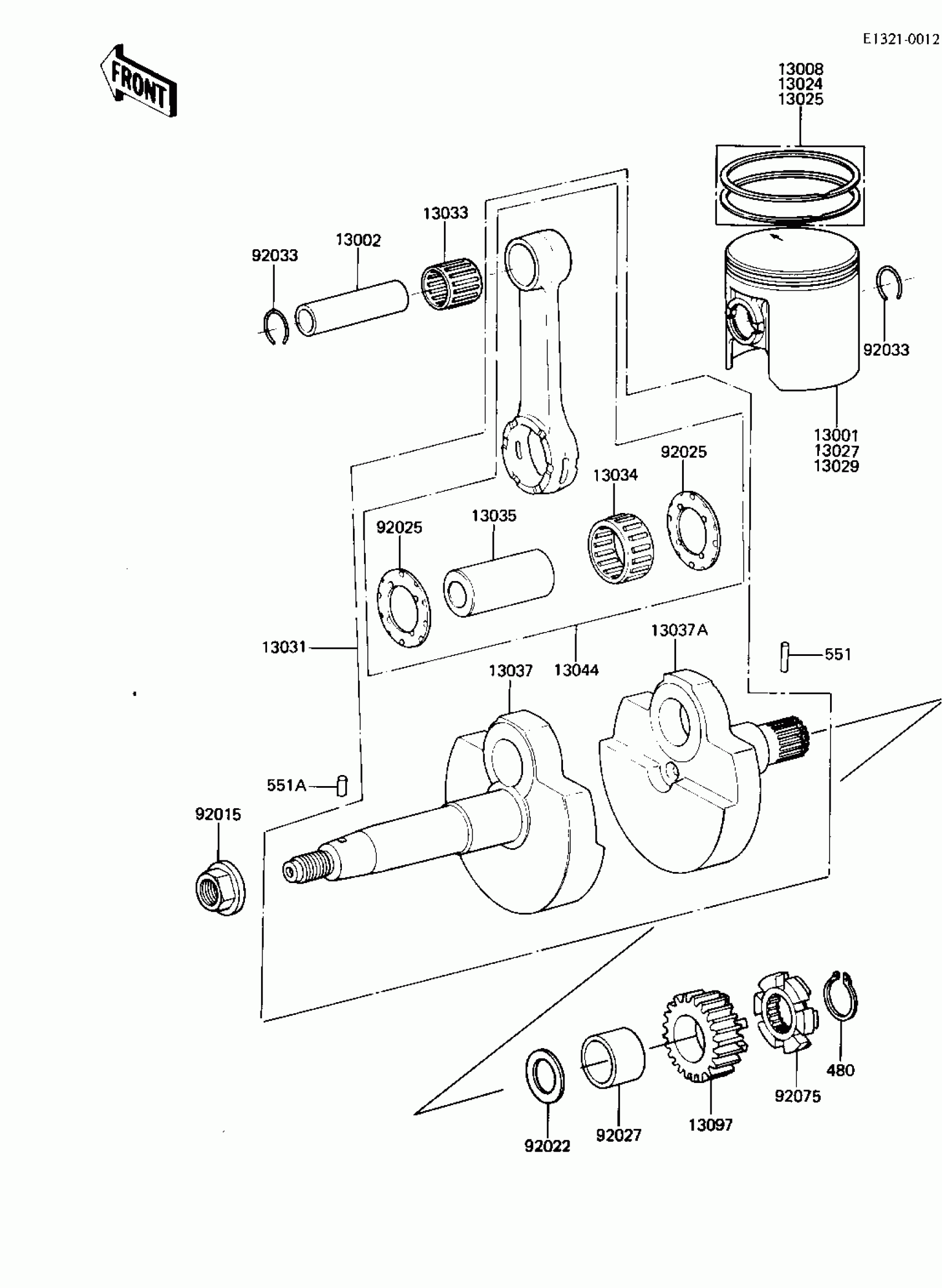

Kawasaki AR50-A1 CRANKSHAFT/PISTON Diagram

PISTON-ENGINE,STD

PIN-PISTON

RING-SET-PISTON,STD

RING-SET PISTON LL

RING-SET PISTON L

PISTON-ENGINE LL

PISTON-ENGINE L

CRANKSHAFT-COMP

BEARING-SMALL END

BEARING-BIG END,PK18X24X11.8X3

PIN-CRANK

CRANKSHAFT,LH

CRANKSHAFT,RH

SET-CONNECTING ROD

GEAR-PRIMARY SPUR,21T

NUT,FLANGED,10MM

WASHER,PLAIN

SHIM,CRANK SHAFT

COLLAR,15.65X19X13

RING-SNAP,PISTON PIN

DAMPER,GEAR

CIRCLIP-TYPE-C,14MM

PIN-DOWEL,2X12

PIN-DOWEL,3X6
