Description

Price

11009

GASKET

16019-011

Unavailable

11009A

GASKET,FLOAT VALVE SEAT

16029-002

$4.46

13168

LEVER,STARTER

13168-1347

Unavailable

13169

PLATE,STARTER PLUNGER

13169-1437

Unavailable

16001

CARBURETOR

16001-1340

$208.99

16002

ADJUSTER-CABLE

16002-1008

Unavailable

16004

CAP-CHAMBER

16004-1011

$44.92

16007

SEAT-SPRING

16007-1043

$4.36

16009

NEEDLE-JET,3I7-3

16009-1092

$29.16

16012

CAP,PLUNGER

16012-016

Unavailable

16014

SCREW-PILOT AIR

16014-1030

Unavailable

16016

PLUNGER,STARTER

16016-1002

Unavailable

16017

JET-NEEDLE,D-8

16017-1089

$34.03

16020

CHAMBER-FLOAT

16020-1001

$58.06

16021

SCREW-THROTTLE STOP

16021-1036

Unavailable

16025

VALVE-THROTTLE,CA2.0

16025-1059

$90.19

16030

VALVE-FLOAT,1.8

16030-1017

Unavailable

16031

FLOAT

16031-1014

Unavailable

16073

INSULATOR

16073-1011

Unavailable

49006

BOOT,CABLE ADJUSTER

16036-007

$17.80

92001

BOLT,CARBURETOR CLAMP

92001-1476

Unavailable

92009

SCREW-FLOAT CHAMBER

16033-012

$1.88

92015

NUT,ADJUST LOCK

16003-006

$7.34

92015A

NUT

92015-1154

Unavailable

92022

CAP,STARTER PLUNGER

16039-015

$6.88

92022A

WASHER

92022-1271

$4.54

92037

CLAMP,TUBE

92037-072

$7.22

92037A

CLAMP

92037-1272

Unavailable

92043

PIN,FLOAT

16032-003

$6.57

92059

HOSE,FUEL TAP DIAPHRA

92059-1023

$16.60

92059A

TUBE,3X5X250,BLACK

92059-1308

Unavailable

92063

JET-MAIN NO 112.5R

92063-075

$15.42

92063A

JET-MAIN NO 115R

92063-076

$15.42

92063B

JET-MAIN NO 117.5R

92063-077

$17.74

92063C

MAIN JET NO 120R

92063-078

$18.50

92063D

MAIN JET,#A100

92063-1033

$26.79

92064

JET-PILOT,#17.5

92064-020

Unavailable

92081

SPRING,PILOT AIR SCREW

16022-007

$8.13

92081A

SPRING,STOP SCREW

92081-1153

$4.96

92081B

SPRING

92081-1398

Unavailable

92081C

SPRING,THROTTLE VALVE

92081-1399

Unavailable

92093

SEAL

92093-1062

Unavailable

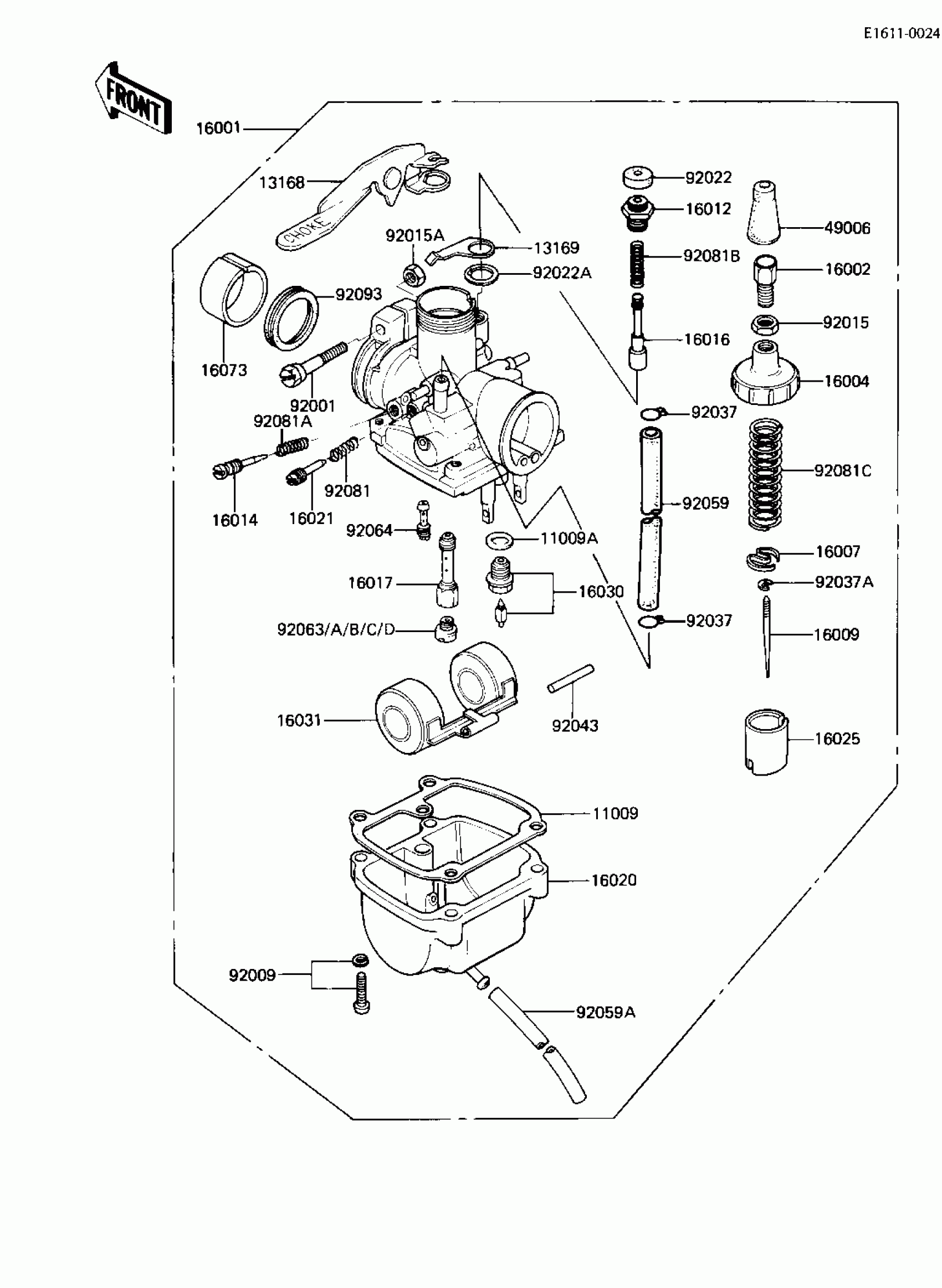

Kawasaki AR50-A1 CARBURETOR Diagram

GASKET

GASKET,FLOAT VALVE SEAT

LEVER,STARTER

PLATE,STARTER PLUNGER

CARBURETOR

ADJUSTER-CABLE

CAP-CHAMBER

SEAT-SPRING

NEEDLE-JET,3I7-3

CAP,PLUNGER

SCREW-PILOT AIR

PLUNGER,STARTER

JET-NEEDLE,D-8

CHAMBER-FLOAT

SCREW-THROTTLE STOP

VALVE-THROTTLE,CA2.0

VALVE-FLOAT,1.8

FLOAT

INSULATOR

BOOT,CABLE ADJUSTER

BOLT,CARBURETOR CLAMP

SCREW-FLOAT CHAMBER

NUT,ADJUST LOCK

NUT

CAP,STARTER PLUNGER

WASHER

CLAMP,TUBE

CLAMP

PIN,FLOAT

HOSE,FUEL TAP DIAPHRA

TUBE,3X5X250,BLACK

JET-MAIN NO 112.5R

JET-MAIN NO 115R

JET-MAIN NO 117.5R

MAIN JET NO 120R

MAIN JET,#A100

JET-PILOT,#17.5

SPRING,PILOT AIR SCREW

SPRING,STOP SCREW

SPRING

SPRING,THROTTLE VALVE

SEAL
