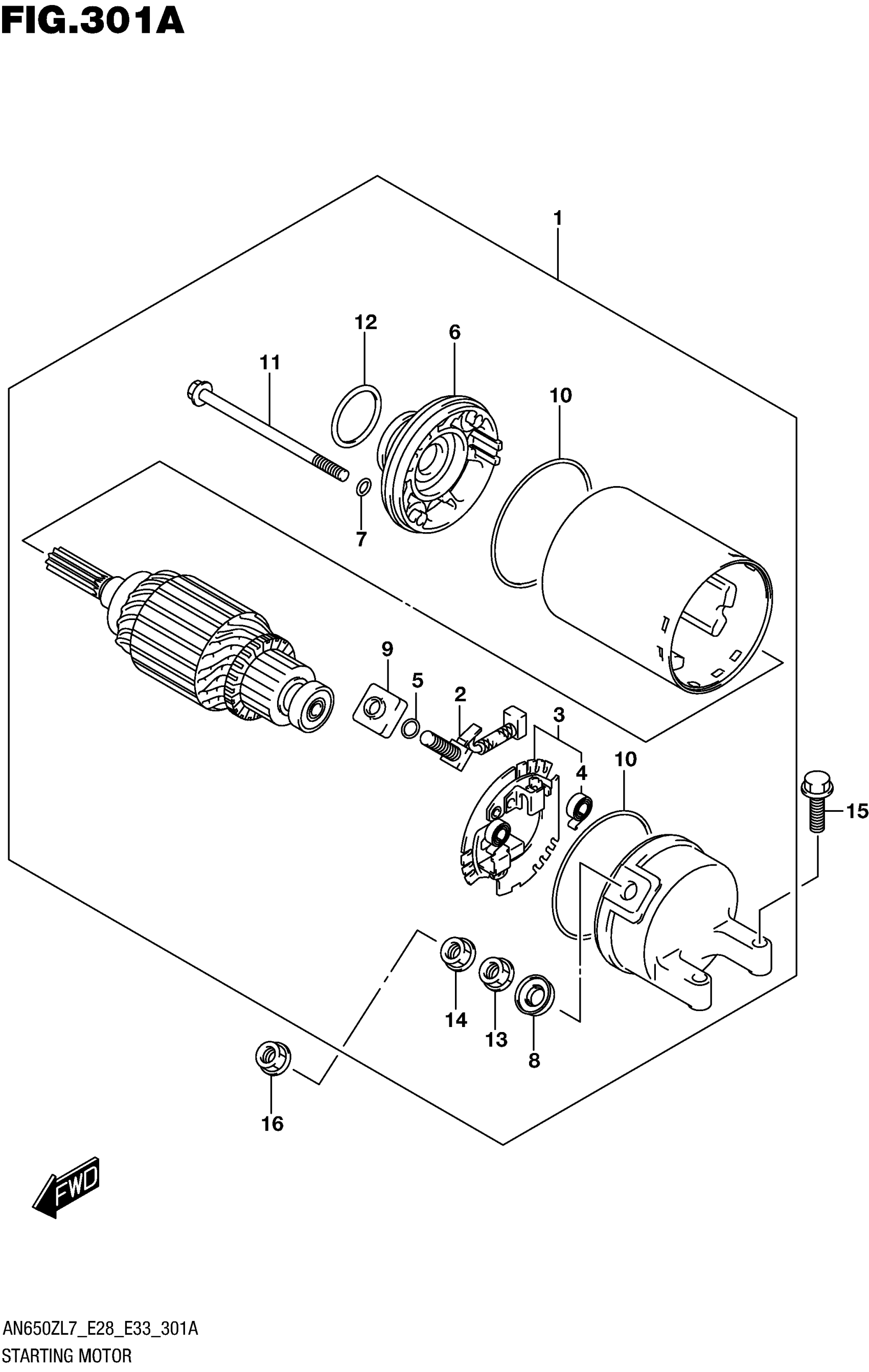

Suzuki AN650ZL7 (2017) STARTING MOTOR Diagram

#

Description
Price

1

MOTOR ASSY, STARTING

31100-10G00

$661.85

2

.BRUSH (+)

31130-38300

$18.43

3

.HOLDING ASSY, BRUSH

31132-27A01

$73.55

4

..SPRING

31135-65010

$4.52

5

.O RING

31143-38300

$5.10

6

.HOUSING ASSY, STARTING

31150-49500

Unavailable

7

.O RING

31156-38300

$4.52

8

.BUSHING

31172-38300

$6.55

9

.BUSHING

31171-38300

$8.93

10

.O RING

31264-44110

$11.87

11

.BOLT

31281-88C00

Unavailable

12

.O-RING (D:3,ID:24.5)

09280-24003

$1.55

13

.NUT

08310-00067

$2.13

14

NUT

08361-3506A

$1.80

15

BOLT

01547-0625A

$2.01

16

NUT

08361-3506A

$1.80
