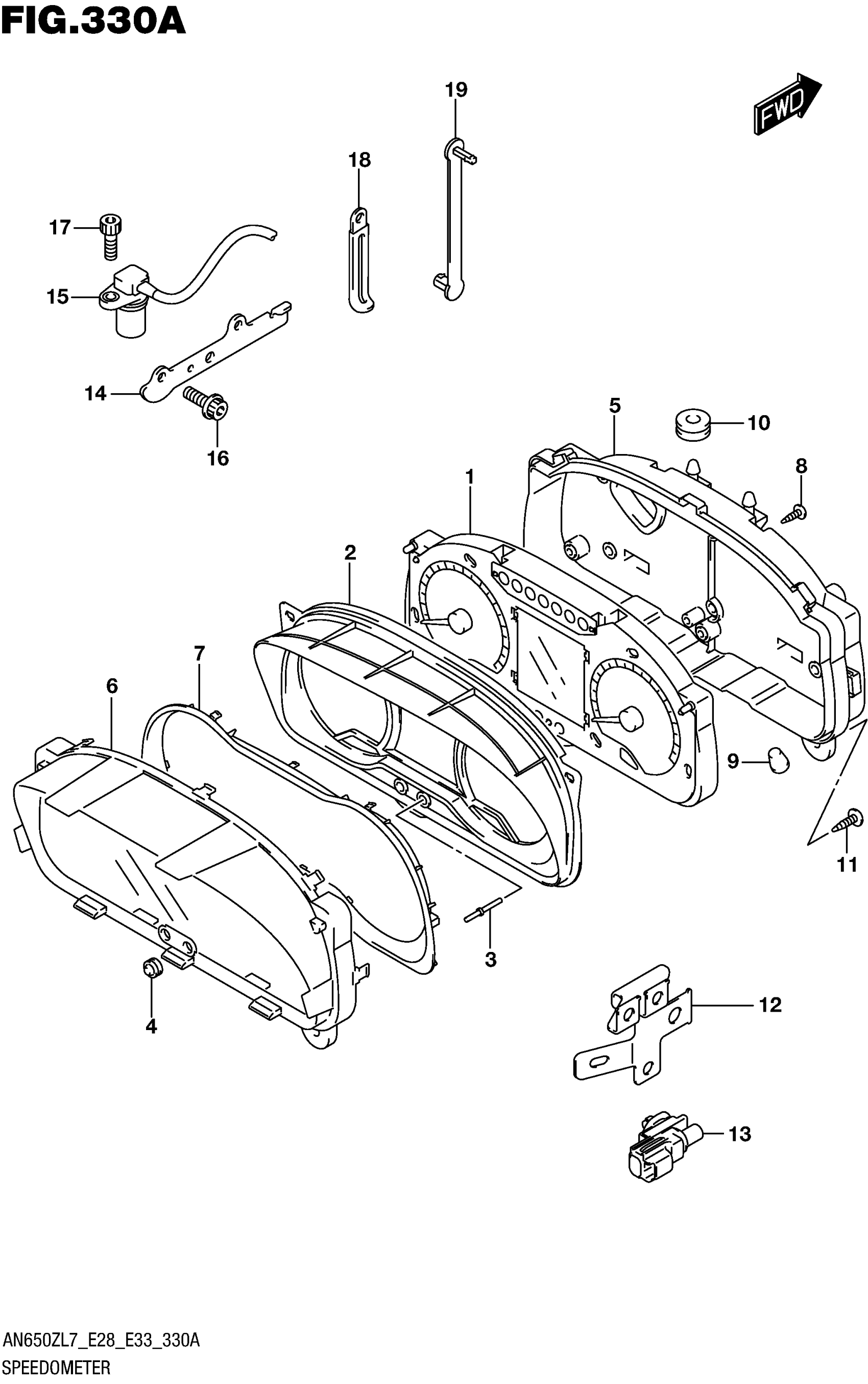

Suzuki AN650ZL7 (2017) SPEEDOMETER (AN650ZL7 E28) Diagram

#

Description
Price

1

SPEEDOMETER

34120-26J40

Unavailable

2

PLATE

34113-26J00

Unavailable

3

KNOB

34124-26J00

$13.65

4

COVER, SPEEDOMETER

34126-44G00

$10.48

5

LOWER CASE

34152-26J01

$45.80

6

GLASS

34154-26J00

$68.92

7

RING

34157-26J00

Unavailable

8

SCREW (3X12)

34183-29F00

$3.84

9

CUSHION,SPEEDOM This part replaces 34955-10G00.

34955-10G01

$3.03

10

CUSHION,SPEEDOMETER This part replaces 34955-13E00.

34955-13E01

$2.92

11

SCREW

03541-0520A

$1.80

12

BRACKET, SENSOR AMBIENT AIR

34898-13J00

Unavailable

13

SENSOR, AMBIENT AIR TEMP

95643-58J00

$50.50

14

GUIDE, SENSOR LEAD

34938-10G00

Unavailable

15

SENSOR,SPEED This part replaces 34990-10G30.

34990-10G31

$135.48

16

BOLT

07120-0612B

$3.04

17

BOLT

07130-0616B

$2.39

18

CLAMP(L:80) This part replaces 09404-06433.

09404-06036

$1.74

19

CLAMP (L:63)

36651-48E00

$3.25
