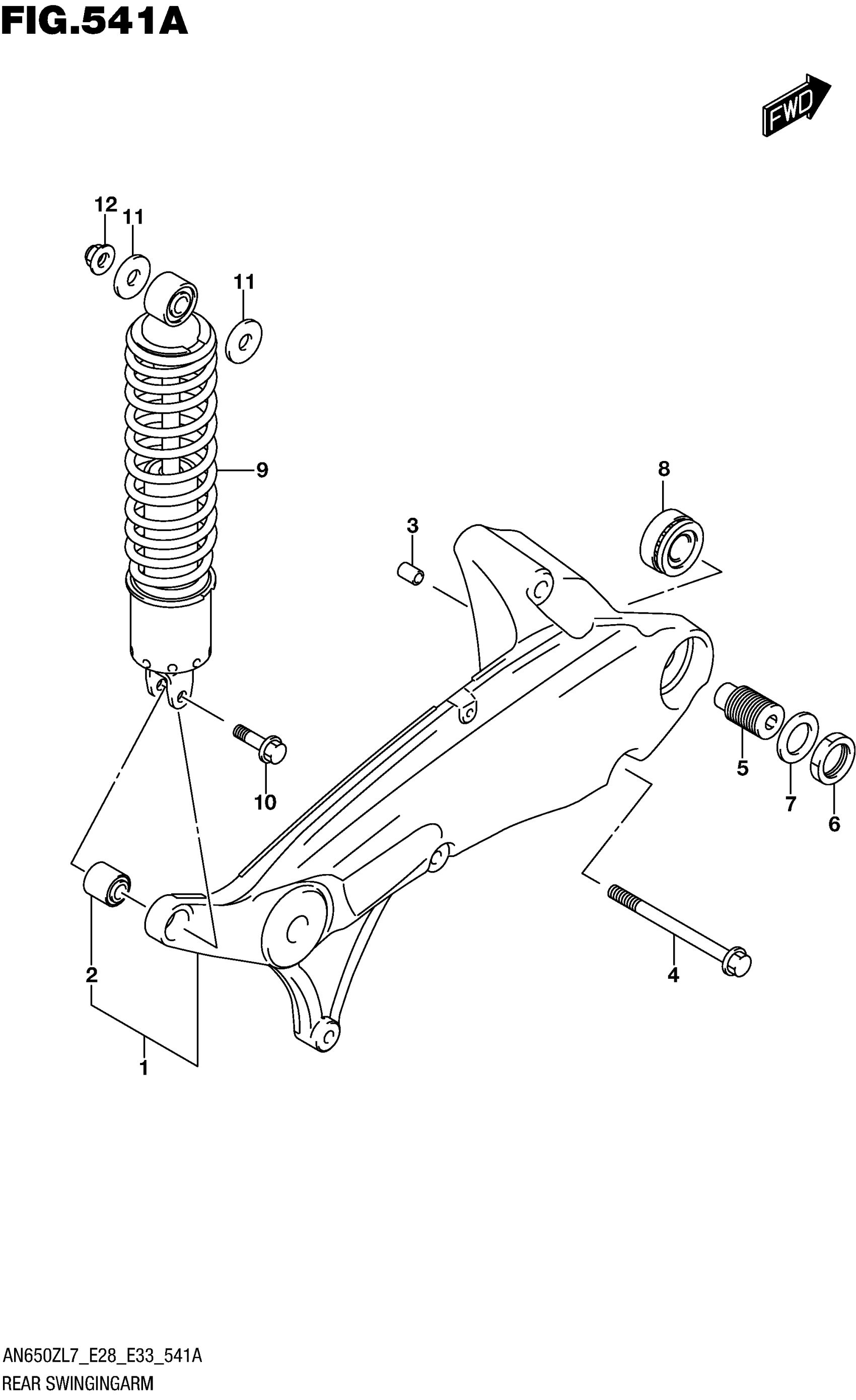

Suzuki AN650ZL7 (2017) REAR SWINGINGARM Diagram

#

Description
Price

1

SWINGING ARM ASSY, REAR

61000-10G20-YD8

Unavailable

1

(SILVER)

61000-10G20-YD8

Unavailable

2

.BUSH (10.2X22.3X20)

09319-10032

$9.27

3

PIN,CRANKCASE

11319-33E50

$5.32

4

BOLT (10X95)

09103-10299

Unavailable

5

BOLT, PIVOT RH

61213-24A00

Unavailable

6

NUT

09140-24007

$3.89

7

WASHER (24X42X1.2)

09160-24034

$2.38

8

BEARING (17X40X13.25)

09265-17012

$69.07

9

ABSORBER ASSY, REAR SHOCK

62100-10G21-019

$343.70

9

(BLACK)

62100-10G21-019

$343.70

10

BOLT, LOWER

62313-40B00

$4.52

11

WASHER (10.5X30X2.3)

09160-10501

$2.33

12

NUT

08319-3110A

$2.73
