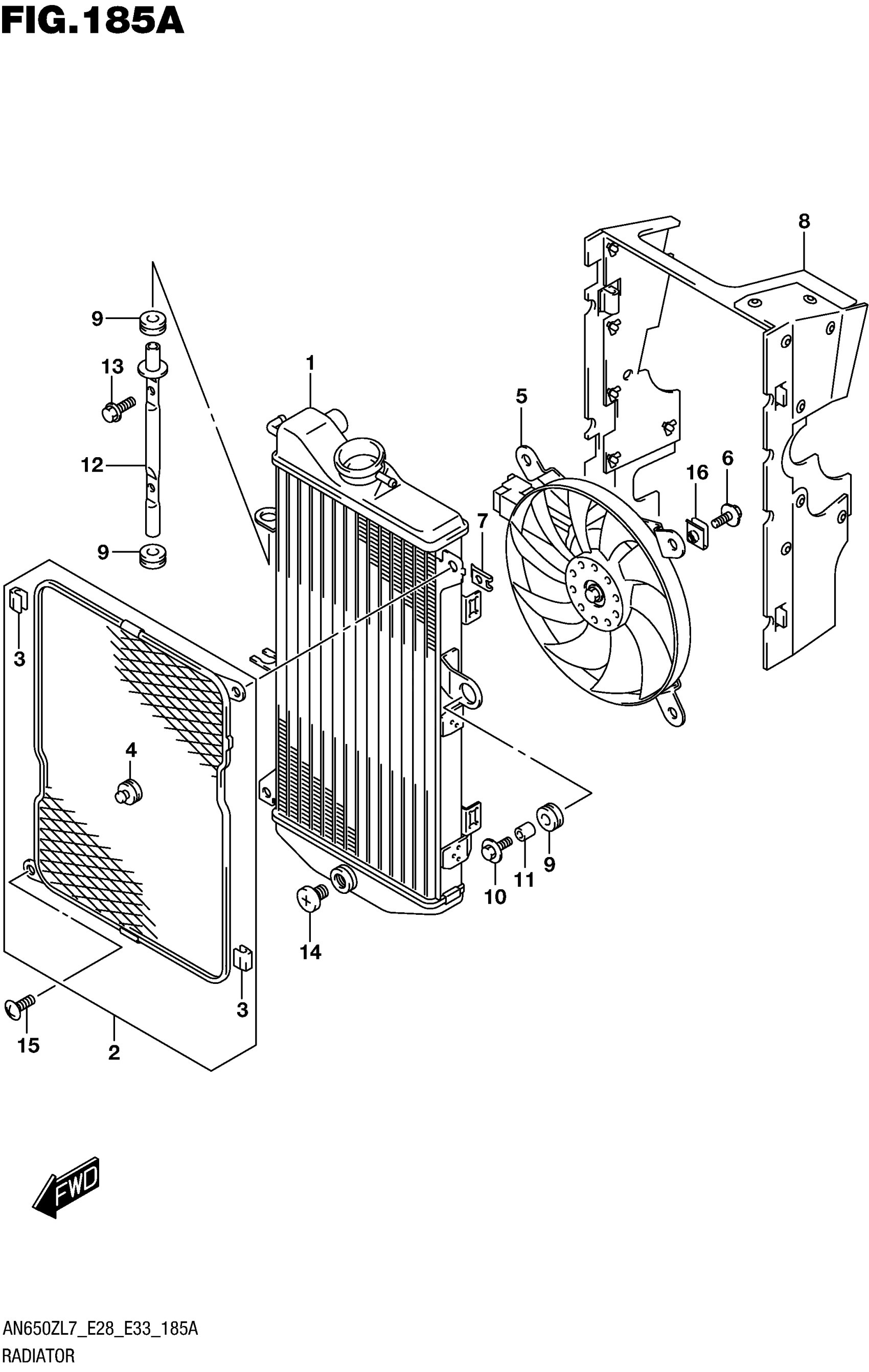

Suzuki AN650ZL7 (2017) RADIATOR Diagram

#

Description
Price

1

RADIATOR ASSY, WATER

17710-26J00

$978.62

2

GUARD,RADIATOR This part replaces 17750-10G00.

17750-10G01

$71.07

3

.PROTECTOR, CTR This part replaces 17765-09F00.

17765-09F01

$2.92

4

CUSHION, RADIATOR GUARD

17768-33410

Unavailable

5

FAN ASSY, RADIATOR

17800-26J00

$666.45

6

BOLT

01550-0612A

$1.97

7

NUT

17802-45G00

$4.10

8

SHIELD, RADIATOR HEAT

17760-26J00

Unavailable

9

CUSHION

09320-10063

$3.45

10

BOLT (6X20)

09116-06167

$2.19

11

SPACER (6.5X10X10)

09180-06310

$1.91

12

BRACKET, RADIATOR

17740-10G00

Unavailable

13

BOLT

01550-0610A

$1.97

14

PLUG, DRAIN

17718-26J00

$6.54

15

SCREW

02142-0610A

$1.49

16

NUT, RADIATOR FAN

17802-14F00

$3.38
