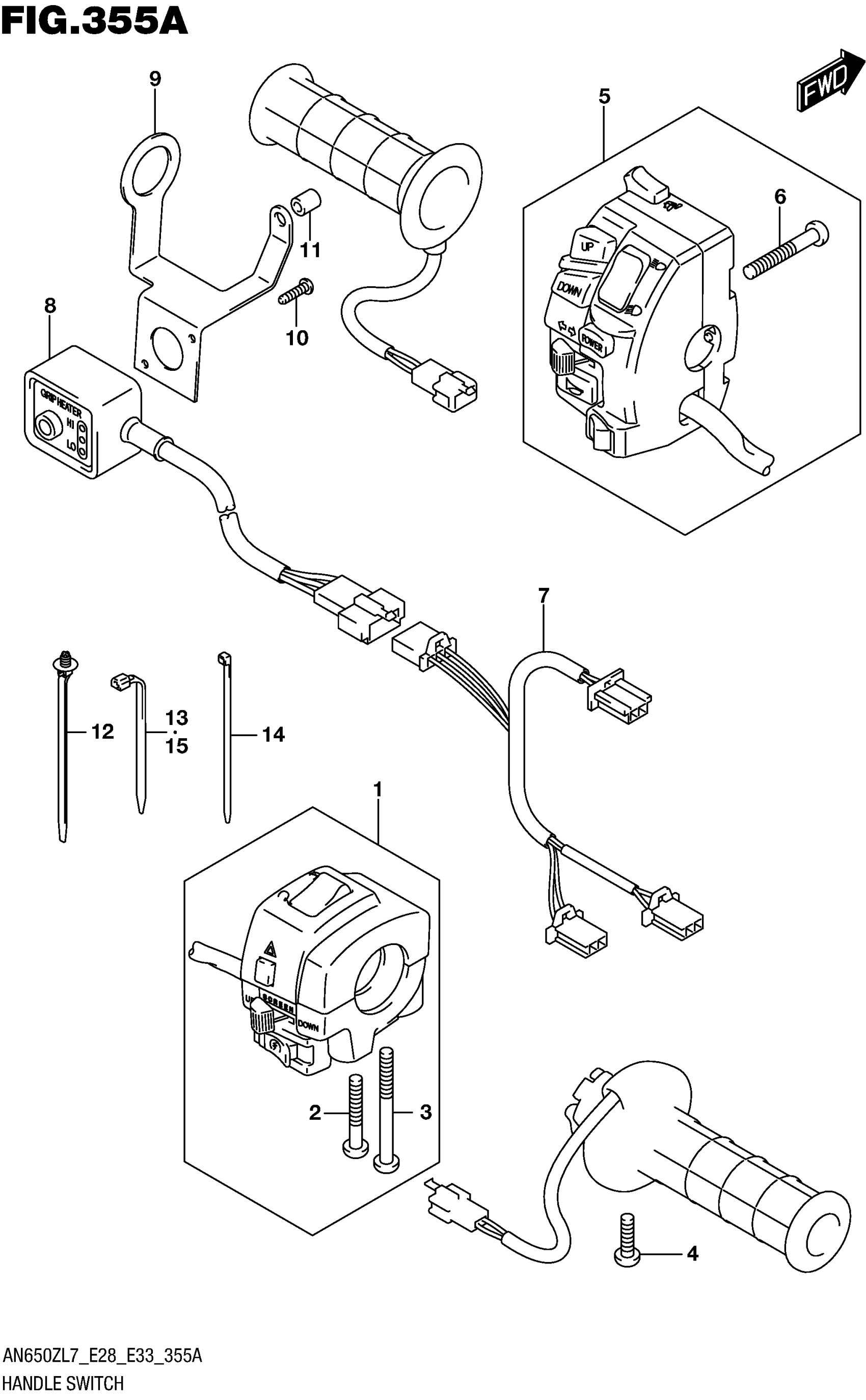

Suzuki AN650ZL7 (2017) HANDLE SWITCH Diagram

#

Description
Price

1

SWITCH ASSY, HANDLE, RH

37200-26J00

$189.48

2

.SCREW

02112-0530B

$1.49

3

.SCREW

02112-0550B

$2.39

4

SCREW

02112-0510A

$1.49

5

SWITCH ASSY,HAN This part replaces 37400-26J00.

37400-26J01

$226.58

6

.SCREW

02112-0535B

$2.23

7

WIRE, GRIP HEATER LEAD

36855-26J00

Unavailable

8

SWITCH ASSY, GRIP HEATER

37270-05H10

Unavailable

9

BRACKET, GRIP HEATER

37271-26J00

Unavailable

10

SCREW (5X14)

37272-36G00

Unavailable

11

SPACER (5.5X9.5X10)

09180-05301

$2.42

12

CLAMP (L:154)

09407-17403

$4.91

13

CLAMP (L:190)

09407-19401

$3.05

14

CLAMP (L:145)

09407-14407

$3.57

15

CLAMP (L:165)

09407-18402

$2.19
