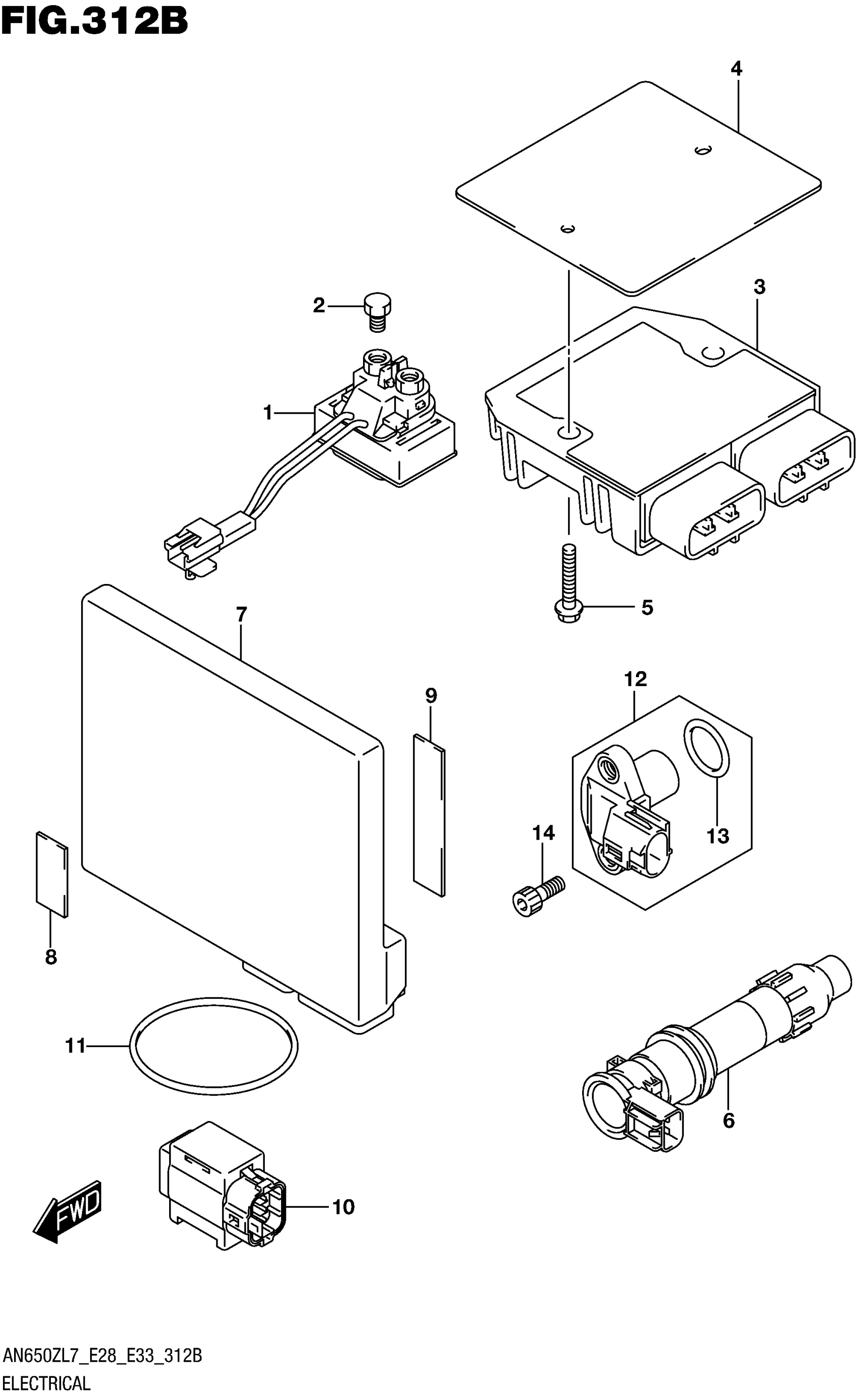

Suzuki AN650ZL7 (2017) ELECTRICAL (AN650ZL7 E33) Diagram

#

Description

Price

1

RELAY ASSY,STAR This part replaces 31800-10G00.

31800-10G02

$87.07

2

SCREW (6X8)

09128-06013

$1.24

3

RECTIFIER ASSY This part replaces 32800-26J00.

32800-26J02

$283.67

4

PLATE, RECTIFIER

32832-26J00

Unavailable

5

BOLT

01550-0630A

$2.31

6

COIL ASSY, IGNITION

33410-47H00

$142.15

7

CONTROL UNIT,FI This part replaces 32920-26J10.

32920-26J11

$1,696.13

8

CUSHION, FI CONTROL UNIT

33651-37000

$4.09

9

PROTECTOR (80X80X2) This part replaces 33652-38A10.

33652-07D00

$5.17

10

SENSOR ASSY,FUEL CUT

33960-06G10

$82.31

11

O RING(D:3.5,ID This part replaces 09280-63003.

09280-61004

$2.50

12

SENSOR ASSY, CAM POSITION

32160-02F10

$167.32

13

.PACKING

32161-02F00

$10.97

14

BOLT (6X16)

09106-06073

$2.38
