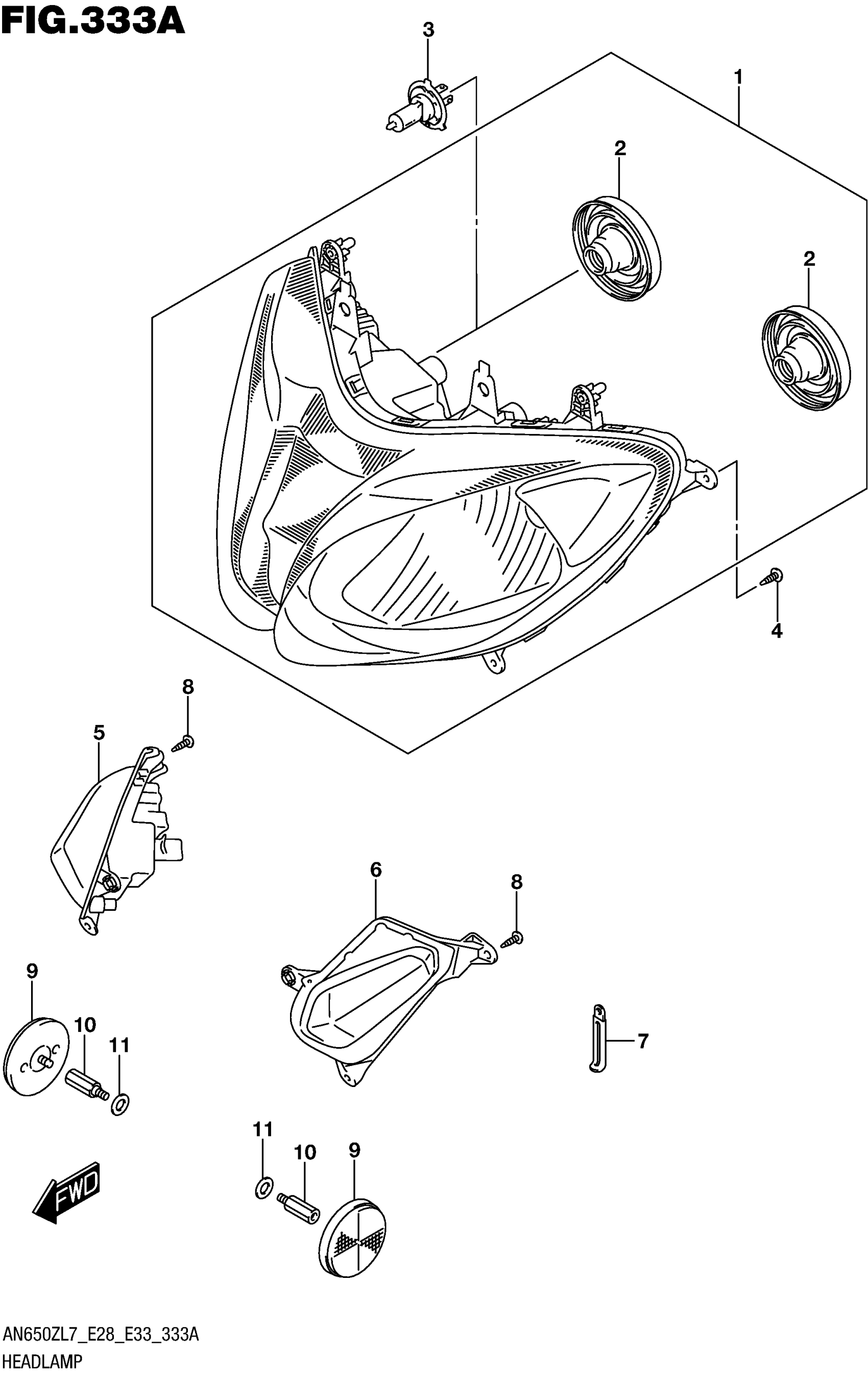

Suzuki AN650ZL7 (2017) HEADLAMP Diagram

#

Description
Price

1

HEAD LAMP ASSY

35100-26J00-999

$629.85

2

.BULB COVER

35179-26J00

$21.47

3

BULB (12V60/55W,H4)

09471-12182

$83.77

4

SCREW

03541-0516A

$1.37

5

LAMP ASSY, FRONT POSITION RH

36101-26J00

$170.75

6

LAMP ASSY, FRONT POSITION LH

36102-26J00

$116.25

7

CLAMP (L:45)

09404-06429

$1.82

8

SCREW

03541-0416A

$1.43

9

REFLEX REFLECTOR ASSY, FR SID

35950-14A11

$13.94

10

BOLT

09119-06109

$14.43

11

WASHER (8.5X18X1)

09160-08043

$1.81
