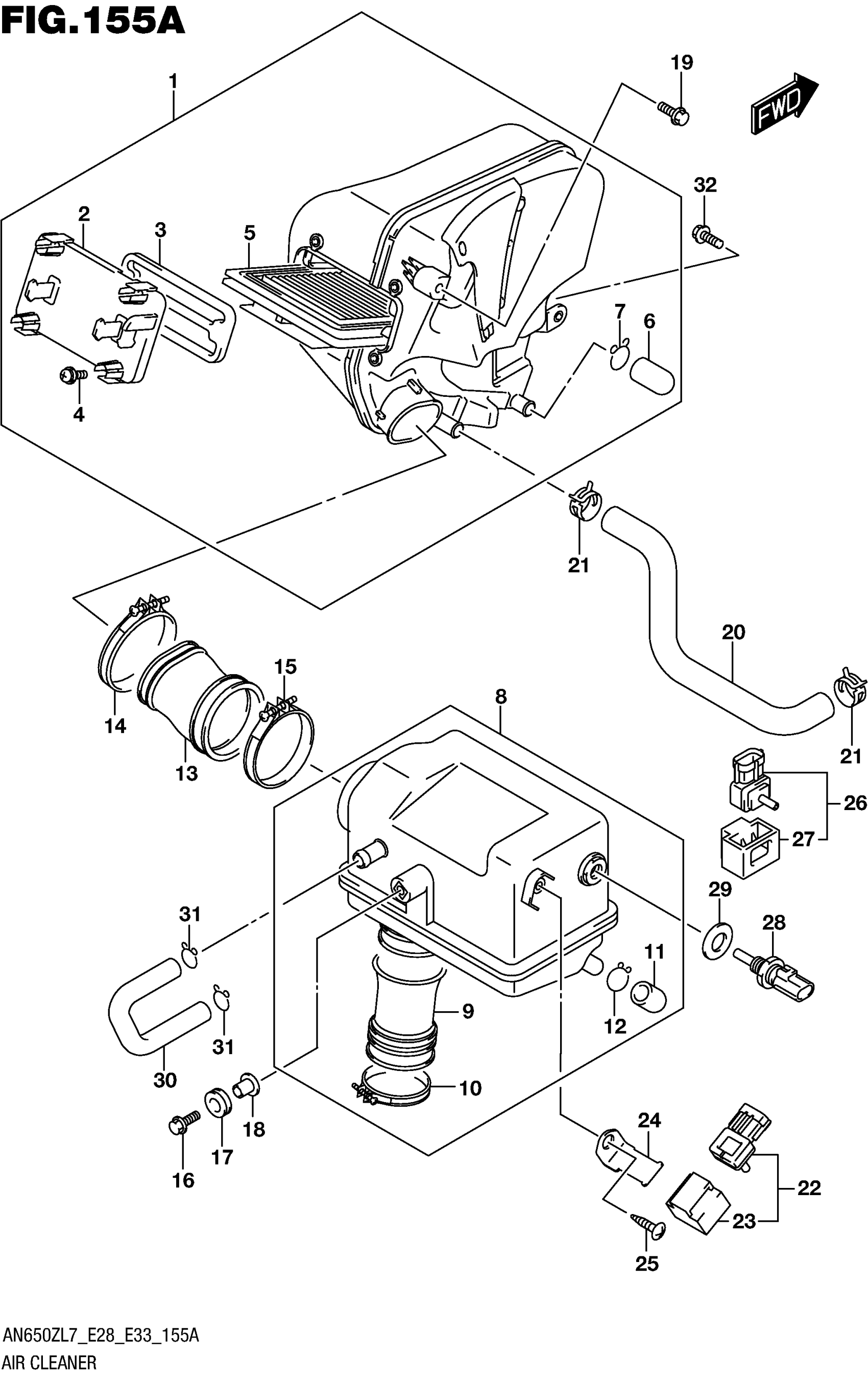

Suzuki AN650ZL7 (2017) AIR CLEANER Diagram

#

Description
Price

1

CLEANER ASSY, AIR

13701-10G01

Unavailable

2

.CAP, AIR CLEANER

13741-10G00

$17.70

3

.GASKET, CAP

13747-10G00

$5.88

4

.SCREW

02142-0512A

$1.49

5

.FILTER

13780-10G00

$42.35

6

.PLUG This part replaces 13878-10G00.

13878-10G01

$4.93

7

.CLIP

09401-14101

$2.34

8

CHAMBER ASSY, AIR

13710-10G00

Unavailable

9

.TUBE, OUTLET

13881-10G00

Unavailable

10

.CLAMP

13826-39H00

Unavailable

11

.PLUG This part replaces 13878-10G00.

13878-10G01

$4.93

12

.CLIP

09401-14101

$2.34

13

TUBE,JOINT This part replaces 13739-10G00.

13739-10G01

$21.22

14

CLAMP

13826-26J00

Unavailable

15

CLAMP

13826-26J10

Unavailable

16

BOLT (6X25)

09116-06150

$2.59

17

CUSHION

09320-10501

$6.23

18

SPACER (6.5X10X11.6)

09180-06319

$3.85

19

BOLT

01550-0612A

$1.97

20

TUBE, BREATHER

13851-26J00

Unavailable

21

CLIP

09401-16401

$3.14

22

SENSOR,BOOST

15630-29G40

$307.68

23

.COVER

15625-29G40

Unavailable

24

BRACKET, BOOST SENSOR

15629-10G00

Unavailable

25

SCREW

03541-0512A

$1.49

26

SENSOR,BOOST

15630-29G40

$307.68

27

.COVER

15625-29G40

Unavailable

28

SENSOR | FOR AIR TEMP

13650-49X00

$90.19

29

GASKET (12X17X1)

09168-12017

$1.95

30

HOSE, STARTER AIR

13697-10G00

Unavailable

31

CLIP

09401-15101

$2.26

32

BOLT (6X16)

09116-06130

$2.28
