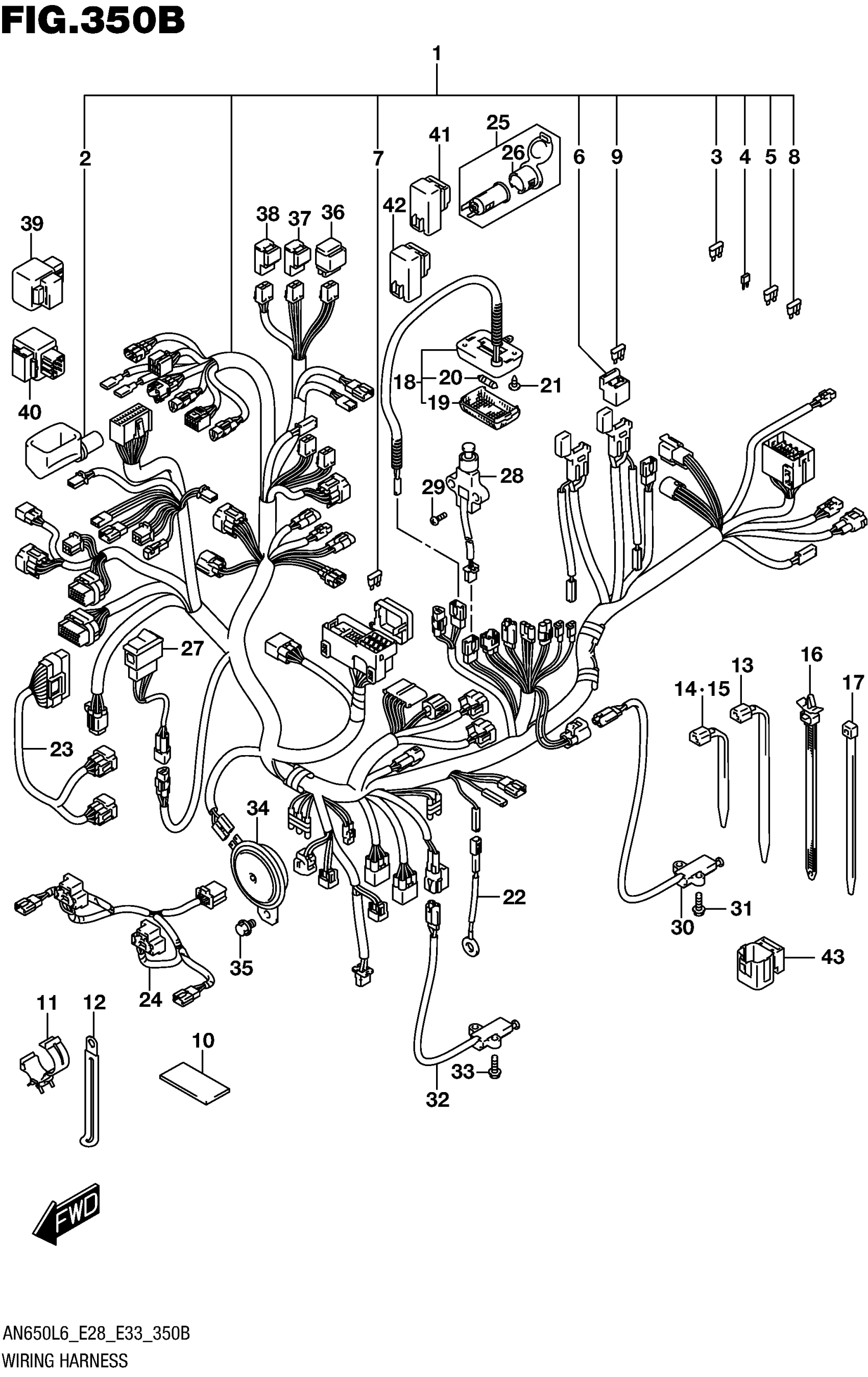

Suzuki AN650L6 (2016) WIRING HARNESS (AN650ZL6 E28) Diagram

#

Description
Price

1

HARNESS, WIRING

36610-26J40

Unavailable

2

.COVER, CONNECTOR

36618-41G00

Unavailable

3

.FUSE (3A)

09481-03502

Unavailable

4

.FUSE (10A)

09481-10501

$2.07

5

.FUSE (15A)

09481-15501

$2.07

6

.HOLDER

36742-45G00

$26.67

7

.FUSE (15A)

09481-15501

$2.07

8

.FUSE (20A)

09481-20501

Unavailable

9

.FUSE (40A)

09481-40101

$10.15

10

PROTECTOR

36920-08D00

Unavailable

11

CLAMP

09403-30403

Unavailable

12

CLAMP (L:45)

09404-06429

$1.82

13

CLAMP (L:125)

09407-14403

$2.24

14

CLAMP (L:190)

09407-19401

$3.32

15

CLAMP (L:165)

09407-18402

$2.21

16

CLAMP (L:90)

09407-11402

$1.81

17

CLAMP (L:145)

09407-14407

$2.80

18

LAMP ASSY, TRUNK BOX

36210-10G00

Unavailable

19

.LENS

36212-79001

Unavailable

20

.BULB (12V,5W)

09471-12073

$3.30

21

SCREW

03541-0412A

$1.37

22

WIRE, OIL PRESSURE SWITCH LEA

36851-26J00

Unavailable

23

HARNESS, WIRING NO.2

36620-26J00

$226.85

24

WIRE,HEADLAMP L This part replaces 36856-26J00.

36856-26J01

$69.38

25

TERMINAL, POWER SOURCE (GRAY)

39410-49F00-P4Z

Unavailable

26

.COVER (GRAY)

39441-49F00-P4Z

$10.25

27

SWITCH ASSY, SEAT HEATER

37320-19H00

$138.07

28

SWITCH ASSY, TRUNK BOX LAMP

37980-14F00

Unavailable

29

.SCREW

02112-0516A

$1.45

30

SWITCH ASSY,SID This part replaces 37840-10G00.

37840-10G02

$90.63

31

BOLT

01550-0620A

$1.97

32

SWITCH ASSY,SID This part replaces 37840-20E00.

37840-20E02

$93.18

33

BOLT

01550-0620A

$1.97

34

HORN ASSY

38500-26J00

$89.96

35

BOLT (8X12)

01550-0812A

$2.31

36

RELAY ASSY | FAN MOTOR

38740-38B00

$71.43

37

RELAY ASSY,FUEL PUMP | SIDE STAND This part replaces 38740-26E00.

38740-26E01

$36.33

38

RELAY ASSY,FUEL PUMP | FUEL PUMP This part replaces 38740-26E00.

38740-26E01

$36.33

39

RELAY ASSY | MIRROR MOTOR

38750-03G00

$161.95

40

RELAY ASSY | SCREEN

38750-10G00

Unavailable

41

RELAY ASSY | LOW BEAM

38740-04J00

$51.22

42

RELAY ASSY,FUEL PUMP | HEAD LAMP This part replaces 38740-26E00.

38740-26E01

$36.33

43

CAP, TS

36654-06J40

Unavailable
