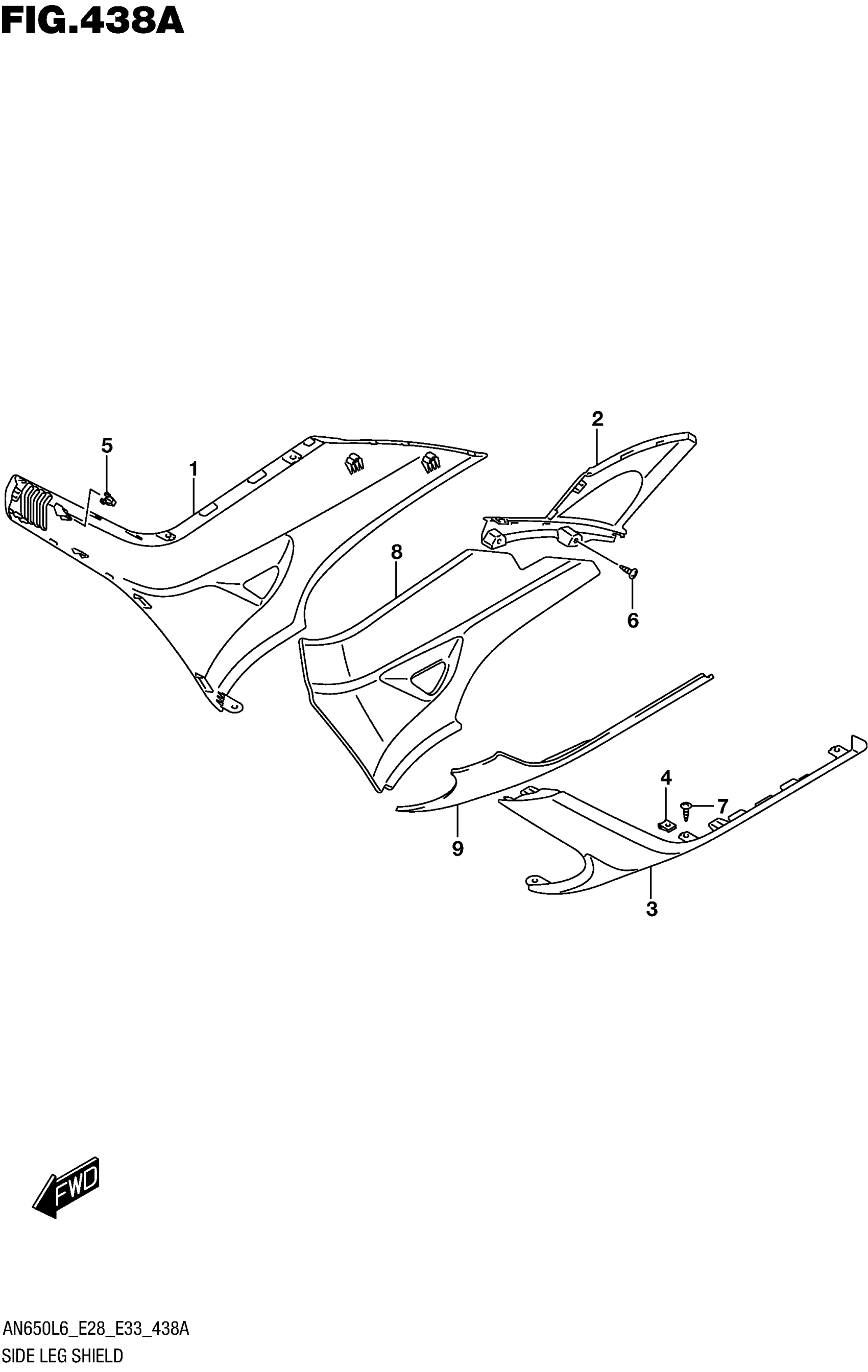

Suzuki AN650L6 (2016) SIDE LEG SHIELD Diagram

#

Description
Price

1-1

SHIELD, LEG SIDE RH (GRAY)

48171-26J02-PGZ

$196.55

1-2

SHIELD, LEG SIDE RH (WHITE)

48171-26J02-RB5

$241.15

1-3

SHIELD, LEG SIDE RH (BLACK)

48171-26J02-YKV

$207.38

2

SHIELD, LEG SIDE LOWER RH

48172-26J00

$23.73

3-1

SHIELD, LEG SIDE LH (GRAY)

48181-26J01-PGZ

$187.52

3-2

SHIELD, LEG SIDE LH (WHITE)

48181-26J01-RB5

$150.75

3-3

SHIELD, LEG SIDE LH (BLACK)

48181-26J01-YKV

$162.35

4

NUT

09148-05038

$1.97

5

CLIP

09409-08326

$2.48

6

SCREW

03541-0516A

$1.49

7

SCREW

03541-0516A

$1.49

8

CUSHION,LEG SHI This part replaces 48314-26J00.

48314-26J01

$30.23

9

CUSHION, LEG SHIELD SIDE LH

48324-26J00

$34.28
