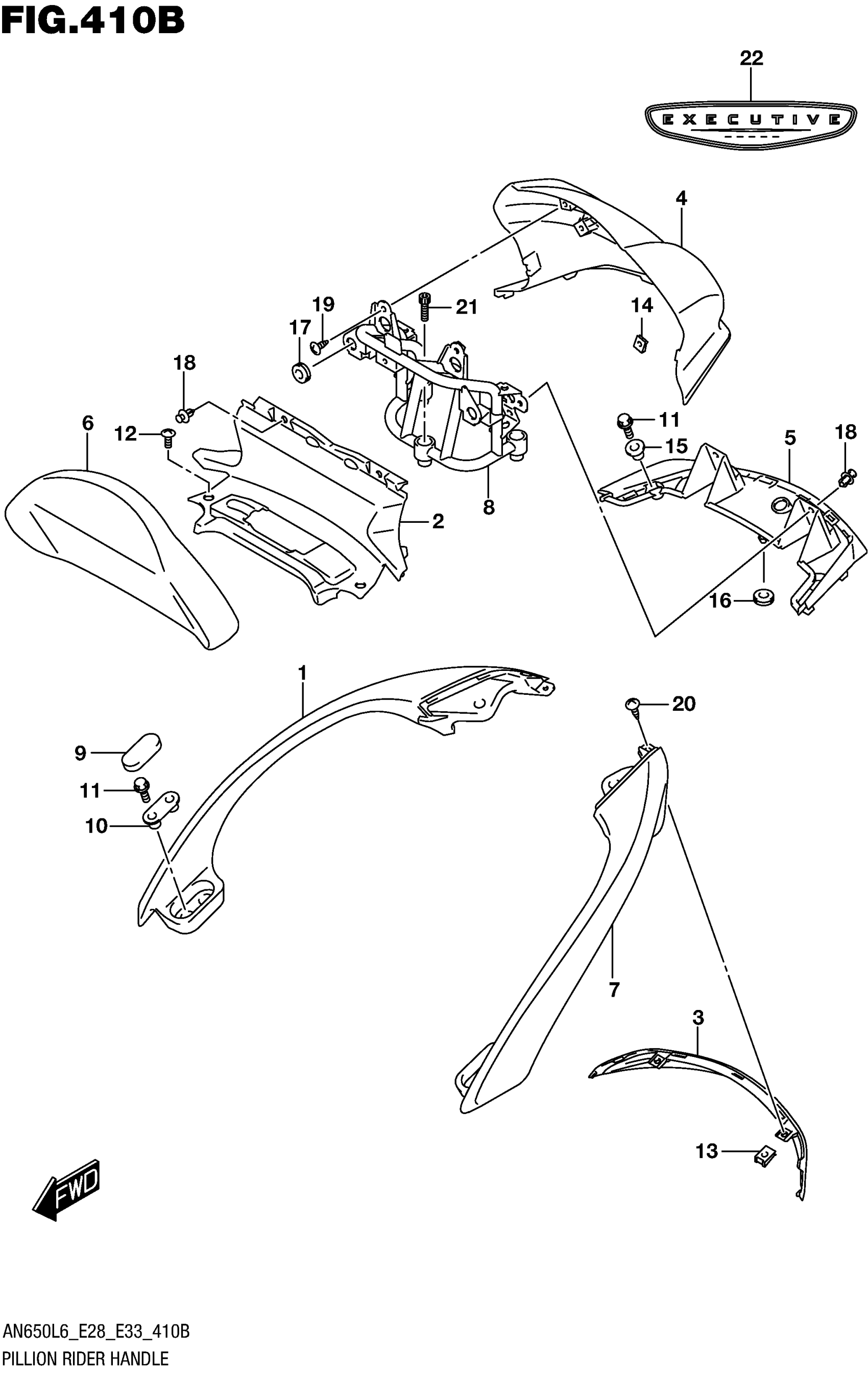

Suzuki AN650L6 (2016) PILLION RIDER HANDLE (AN650ZL6 E28) Diagram

#

Description
Price

1-1

HANDLE, PILLION RIDER RH

46210-26J01-PGZ

$194.95

1-1

(GRAY)

46210-26J01-PGZ

$194.95

1-2

HANDLE, PILLION RIDER RH

46210-26J01-RB5

$197.70

1-2

(WHITE)

46210-26J01-RB5

$197.70

1-3

HANDLE, PILLION RIDER RH

46210-26J01-YKV

$168.48

1-3

(BLACK)

46210-26J01-YKV

$168.48

2-1

COVER, BACKREST FRONT (GRAY)

46215-26J11-PGZ

$29.57

2-2

COVER, BACKREST FRONT (WHITE)

46215-26J11-RB5

$36.63

2-3

COVER, BACKREST FRONT (BLACK)

46215-26J11-YKV

$36.10

3

COVER, PILLION RIDER HDL LOWE

46216-26J50

$10.67

4-1

COVER, BACKREST REAR (GRAY)

46216-26J10-PGZ

Unavailable

4-2

COVER, BACKREST REAR (WHITE)

46216-26J10-RB5

$77.42

4-3

COVER, BACKREST REAR (BLACK)

46216-26J10-YKV

$66.33

5-1

COVER, BACKREST REAR LOWER

46217-26J10-PGZ

Unavailable

5-1

(GRAY)

46217-26J10-PGZ

Unavailable

5-2

COVER, BACKREST REAR LOWER

46217-26J10-RB5

Unavailable

5-2

(WHITE)

46217-26J10-RB5

Unavailable

5-3

COVER, BACKREST REAR LOWER

46217-26J10-YKV

Unavailable

5-3

(BLACK)

46217-26J10-YKV

Unavailable

6

BACKREST ASSY,P This part replaces 46220-26J30-AGJ.

46220-26J31-AGJ

$133.83

6

BACKREST ASSY,P This part replaces 46220-26J30-AGJ.

46220-26J31-AGJ

$133.83

7-1

HANDLE, PILLION RIDER LH

46230-26J01-PGZ

Unavailable

7-1

(GRAY)

46230-26J01-PGZ

Unavailable

7-2

HANDLE, PILLION RIDER LH

46230-26J01-RB5

$250.02

7-2

(WHITE)

46230-26J01-RB5

$250.02

7-3

HANDLE, PILLION RIDER LH

46230-26J01-YKV

Unavailable

7-3

(BLACK)

46230-26J01-YKV

Unavailable

8

BRACKET, PILLION BACKREST

46240-26J10

Unavailable

9

CAP, PILLION RIDER HANDLE BOL

46251-10G00

Unavailable

10

WASHER, PILLION

46290-10G01

Unavailable

11

BOLT (8X25)

09106-08151

$3.70

12

SCREW (6X16)

09139-06139

$3.23

13

NUT

09148-05038

$1.97

14

NUT

09148-05038

$1.97

15

WASHER

09169-08049

$4.11

16

CUSHION

09320-08028

$3.04

17

CUSHION

09320-08049

$3.26

18

CLIP This part replaces 09409-06322.

09409-06322-5PK

$3.10

19

SCREW

03541-0512A

$1.49

20

SCREW

03541-0512A

$1.49

21

BOLT

07130-0825A

$3.04

22

EMBLEM, "EXECUTIVE"

68165-26J10

$41.33
