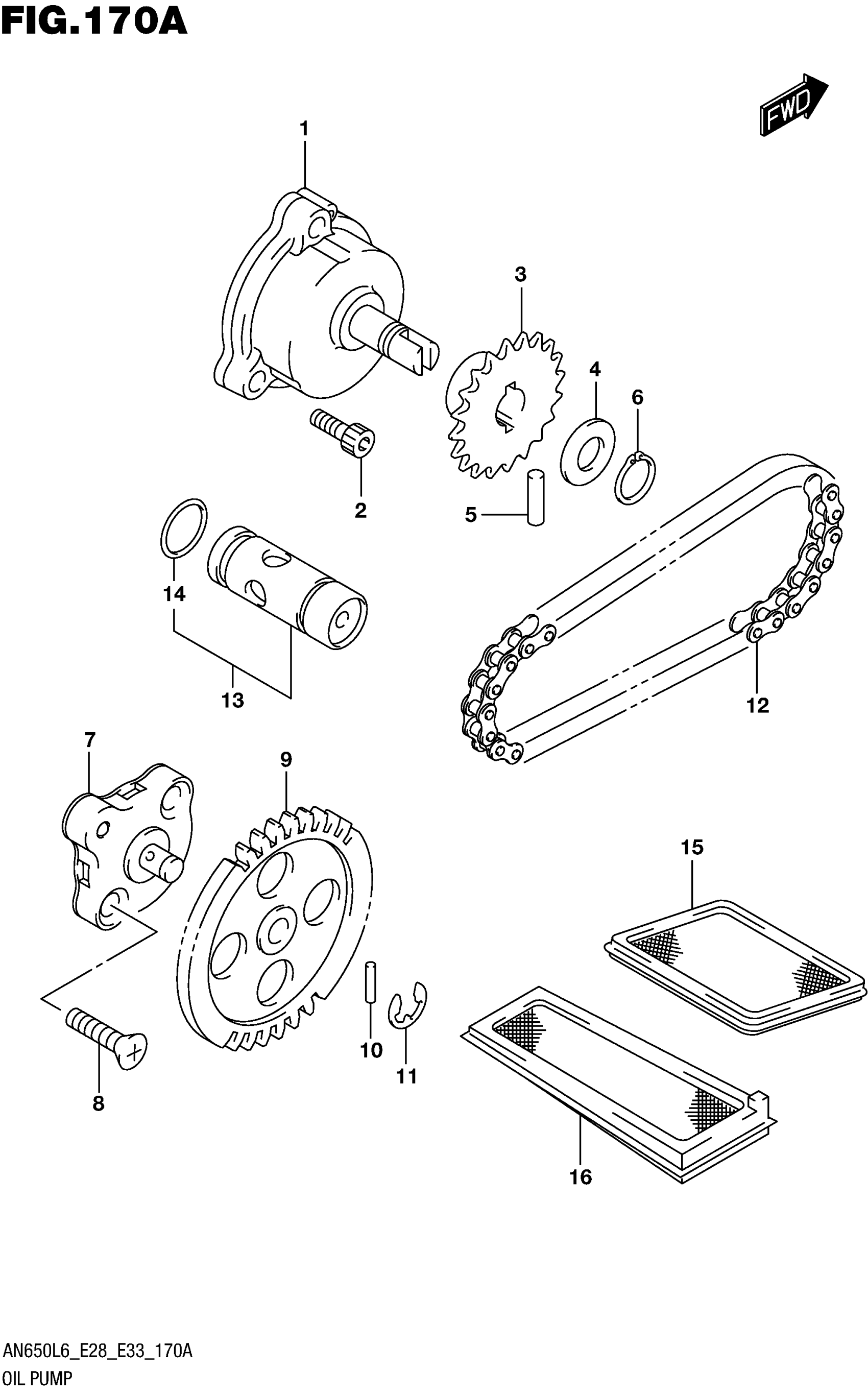

Suzuki AN650L6 (2016) OIL PUMP Diagram

#

Description
Price

1

PUMP ASSY, OIL NO.1

16400-10G00

Unavailable

2

BOLT (6X25)

07130-0625A

$2.62

3

SPROCKET, DRIVEN NO.1 (NT:21)

16331-10G00

Unavailable

4

SHIM (10X18X0.5)

09181-10158

$1.97

5

PIN (4X15.8)

09261-04009

$1.56

6

CIRCLIP

08331-31109

$1.78

7

PUMP ASSY, OIL NO.2

16400-10G10

Unavailable

8

SCREW

02122-0625A

$1.49

9

GEAR, PUMP DRIVEN NO.2 (NT:35

16331-10G10

Unavailable

10

PIN

16421-20E00

Unavailable

11

CIRCLIP

16423-20E00

Unavailable

12

CHAIN, OIL PUMP DRIVE

16310-10G00

Unavailable

13

VALVE ASSY, OIL RELIEF

16440-10G00

Unavailable

14

.O RING (D:1.9,ID:13)

09280-13004

$2.17

15

STRAINER, ENGINE OIL

16520-10G00

Unavailable

16

STRAINER, ENGINE OIL NO.2

16530-10G00

Unavailable
