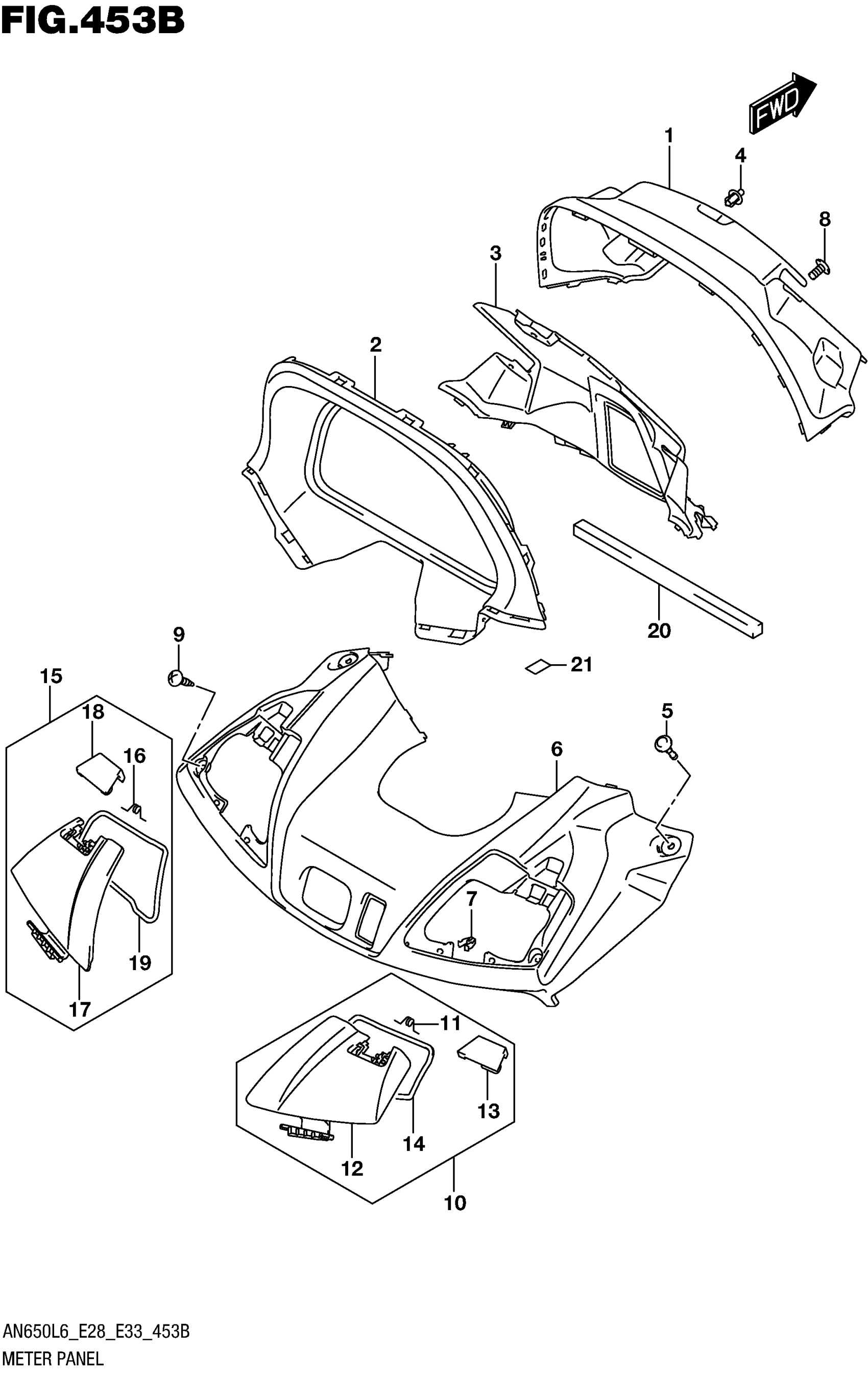

Suzuki AN650L6 (2016) METER PANEL (AN650ZL6 E28) Diagram

#

Description
Price

1

PANEL, METER FRONT UPPER

94421-26J50

$31.00

2

PANEL, METER REAR

94422-26J50

$39.28

3

PANEL, METER FRONT LOWER

94424-26J50

$31.57

4

CLIP, METER PANEL FRONT

94479-35F00

$5.62

5

CLIP, FRONT PANEL

94479-35F00

$5.62

6

PANEL, FRONT This part replaces 94671-26J50.

94671-26J51

$69.76

7

CLIP

09409-08326

$2.48

8

SCREW

02142-0512B

$2.05

9

SCREW

03541-0516B

$1.78

10

LID, FRONT PANEL BOX RH

92140-26J50

$42.77

11

.SPRING

73843-81J00

$3.74

12

.LID, FRONT PANEL RH

92142-26J50

$17.77

13

.LOCK, FRONT PANEL BOX RH

92143-26J50

$11.52

14

.CUSHION, FRONT PANEL LID

92145-26J00

$5.30

15

LID, FRONT PANEL BOX LH

92150-26J50

$57.28

16

.SPRING

73843-81J00

$3.74

17

.LID, FRONT PANEL LH

92152-26J50

$21.62

18

.LOCK, FRONT PANEL BOX LH

92153-26J50

Unavailable

19

.CUSHION, FRONT PANEL LID

92145-26J00

$5.30

20

CUSHION, METER PANEL

94425-26J00

$5.73

21

TAPE, METER PANEL

94432-19F00

Unavailable
