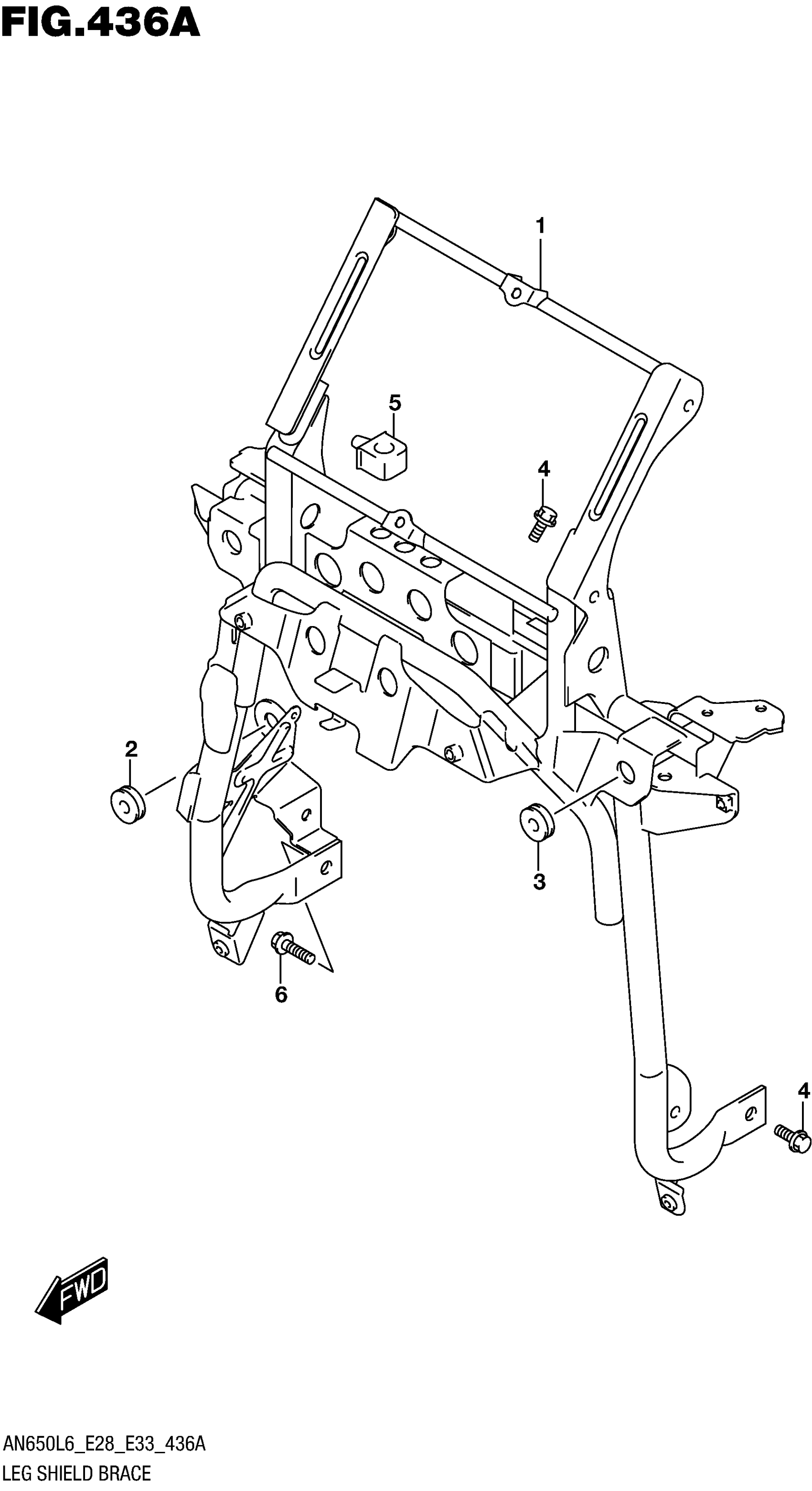

Find the part on the LEG Shield Brace diagram for your 2016 Suzuki AN650L6, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2016 Suzuki AN650L6 LEG Shield Brace Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BRACE, LEG SHIELD

48150-26J00

1
Out of stock

2

CUSHION

09320-08018

1
Out of stock

3

CUSHION

09320-08028

2
Out of stock

4

BOLT

01570-0816A

3
Out of stock

5

CLAMP

09403-14307

1
Out of stock

6

BOLT

01570-0820B

—
Out of stock
