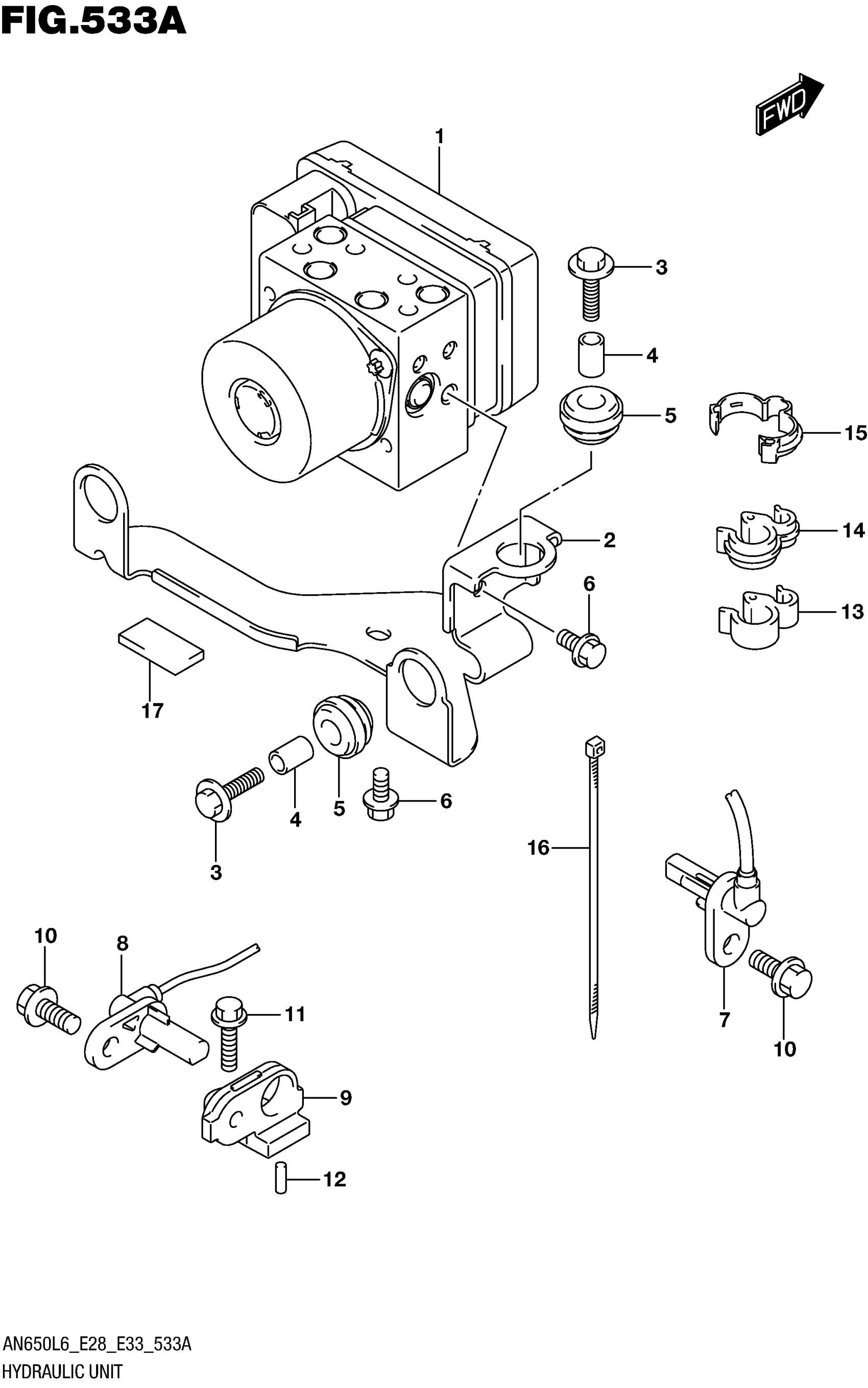

Suzuki AN650L6 (2016) HYDRAULIC UNIT Diagram

#

Description
Price

1

UNIT ASSY, HYDRAULIC ABS

55610-26J01

$961.87

2

HOLDER, HYDRAULIC UNIT ABS

55660-26J00

Unavailable

3

BOLT (6X30)

09116-06171

$3.08

4

SPACER

55662-10G00

Unavailable

5

RUBBER

55663-10G00

Unavailable

6

BOLT

01550-0610A

$1.97

7

SENSOR, FR WHEEL ABS

55710-26J00

$85.43

8

SENSOR, RR WHEEL ABS

65710-26J00

$127.90

9

BRACKET, SENSOR RR

65721-26J00

$35.62

10

BOLT (8X16)

01550-0816A

$2.32

11

BOLT (6X16)

09103-06240

$3.08

12

PIN (4X13.8)

04221-04089

$1.49

13

CLAMP

09408-00241

Unavailable

14

CLAMP

09408-00242

Unavailable

15

CLAMP

09408-00259

Unavailable

16

CLAMP (L:145)

09407-14407

$3.57

17

CUSHION

45149-47H00

$7.05
