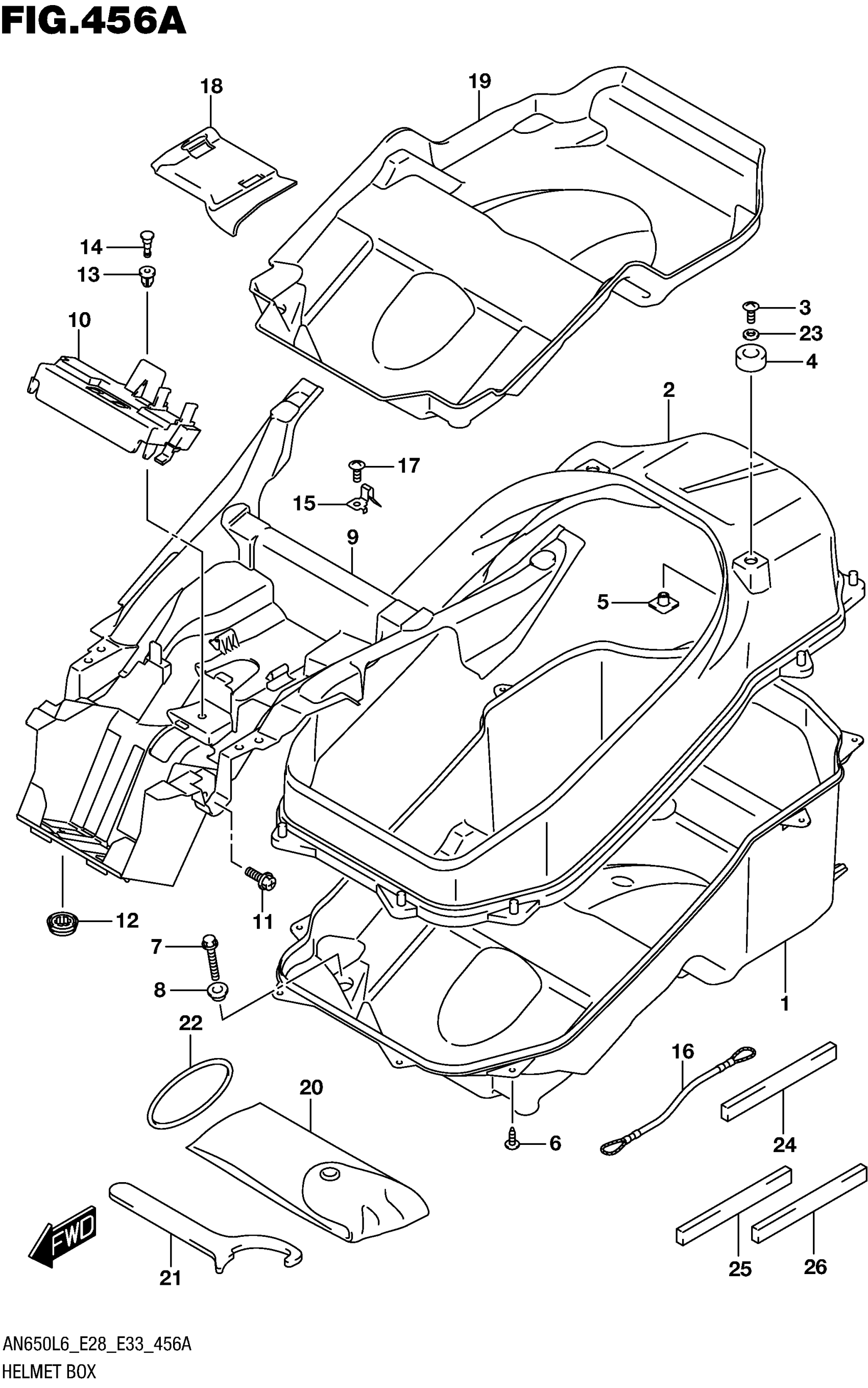

Suzuki AN650L6 (2016) HELMET BOX Diagram

#

Description
Price

1

BOX, HELMET NO.1 This part replaces 92211-26J00.

92211-26J50

$74.50

2

BOX, HELMET NO.2

92221-26J00

Unavailable

3

SCREW (6X12)

09139-06027

$2.16

4

CUSHION, UPPER

45149-04A00

$3.59

5

NUT, HELMET BOX

92222-10G01

$6.47

6

SCREW

03541-0516A

$1.49

7

BOLT

01547-0640A

$2.32

8

WASHER

09169-06073

$3.42

9

COVER, BOX FRONT NO.1

92212-26J00

Unavailable

10

COVER, BOX FRONT NO.2

92213-10G01

$28.27

11

BOLT (6X12)

09111-06107

$2.60

12

CUSHION

09320-09046

$7.82

13

GROMMET

09409-08329

$2.40

14

PLUNGER

09409-08330

$2.38

15

STOPPER, HELMET HOLDER

95723-10G00

Unavailable

16

CABLE,HELMET LO This part replaces 95740-10G00.

95740-10G01

$26.10

17

SCREW (6X12)

09139-06027

$2.16

18

COVER, HELMET BOX FRONT NO.3

92215-10G00

Unavailable

19

MAT, HELMET BOX

92213-26J00

Unavailable

20

TOOL ASSY This part replaces 09800-21056.

09800-21100

$40.80

21

CLAMP,WRENCH

09822-00003

$10.34

22

O RING (D:3.53,ID:69.44)

09280-70004

$3.85

23

WASHER (6.5X16X1.2)

09160-06019

$1.49

24

CUSHION, HELMET BOX

92214-26J00

Unavailable

25

CUSHION, HELMET BOX NO.1

92215-26J00

Unavailable

26

CUSHION, HELMET BOX NO.2

92216-26J00

Unavailable
