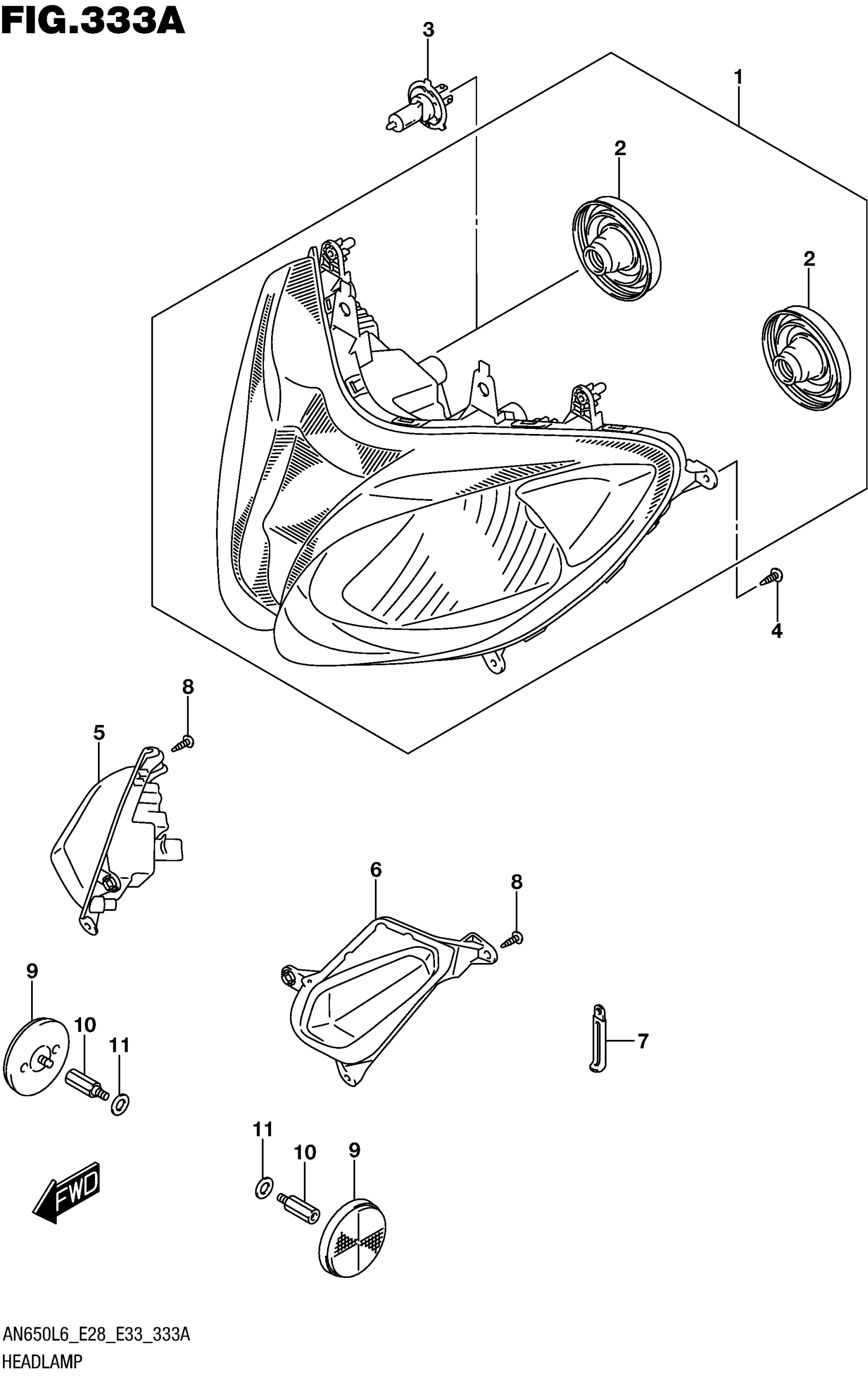

Suzuki AN650L6 (2016) HEADLAMP Diagram

#

Description
Price

1

HEAD LAMP ASSY

35100-26J00-999

$582.38

2

.BULB COVER

35179-26J00

$19.02

3

BULB (12V,60/55W)

09471-12182

$77.08

4

SCREW

03541-0516A

$1.49

5

LAMP ASSY, FRONT POSITION RH

36101-26J00

$152.02

6

LAMP ASSY, FRONT POSITION LH

36102-26J00

$103.50

7

CLAMP (L:45)

09404-06429

$1.83

8

SCREW

03541-0416A

$1.49

9

REFLEX REFLECTOR ASSY, FR SID

35950-14A11

$15.23

10

BOLT

09119-06109

$13.28

11

WASHER (8.5X18X1)

09160-08043

$1.83
