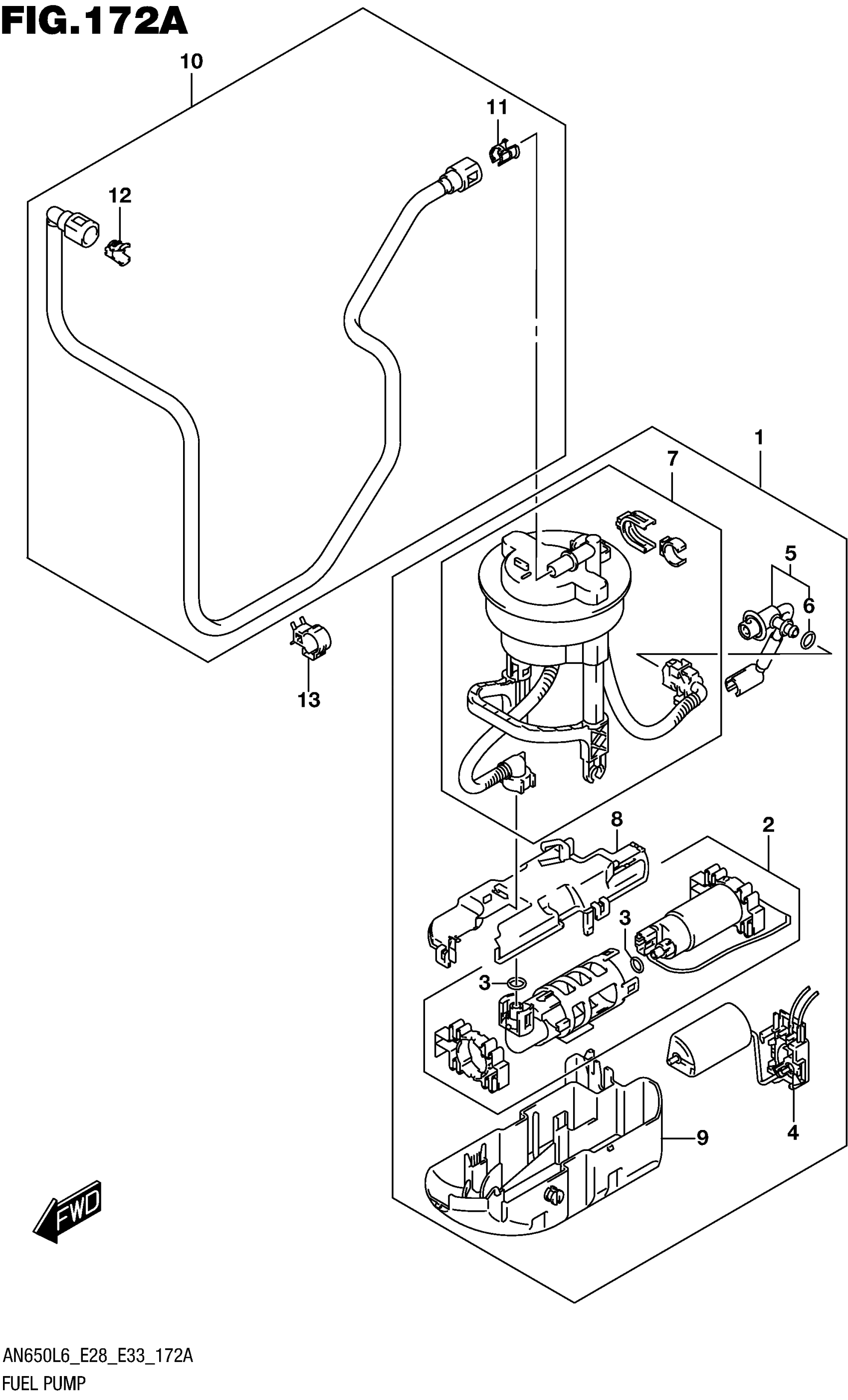

Suzuki AN650L6 (2016) FUEL PUMP Diagram

#

Description
Price

1

PUMP ASSY,FUEL This part replaces 15100-10G10.

15100-10G11

$599.00

2

.PUMP, FUEL

15110-10G00

$434.18

3

..O RING

15149-60B00

Unavailable

4

.GAUGE ASSY, FUEL LEVEL

34810-10G00

Unavailable

5

.REGULATOR, FUEL PRESSURE

15610-10G00

$209.20

6

..O RING

15149-10G00

Unavailable

7

FILTER,FUEL This part replaces 15410-10G00.

15410-10G01

$168.27

8

.TANK, SUB NO.1

15211-10G00

Unavailable

9

.TANK, SUB NO.2

15212-10G00

Unavailable

10

HOSE, FUEL

15810-10G10

$114.97

11

.RETAINER

15815-10G00

$8.27

12

.RETAINER

15815-35F00

$7.83

13

CLAMP

09403-15405

$2.72
