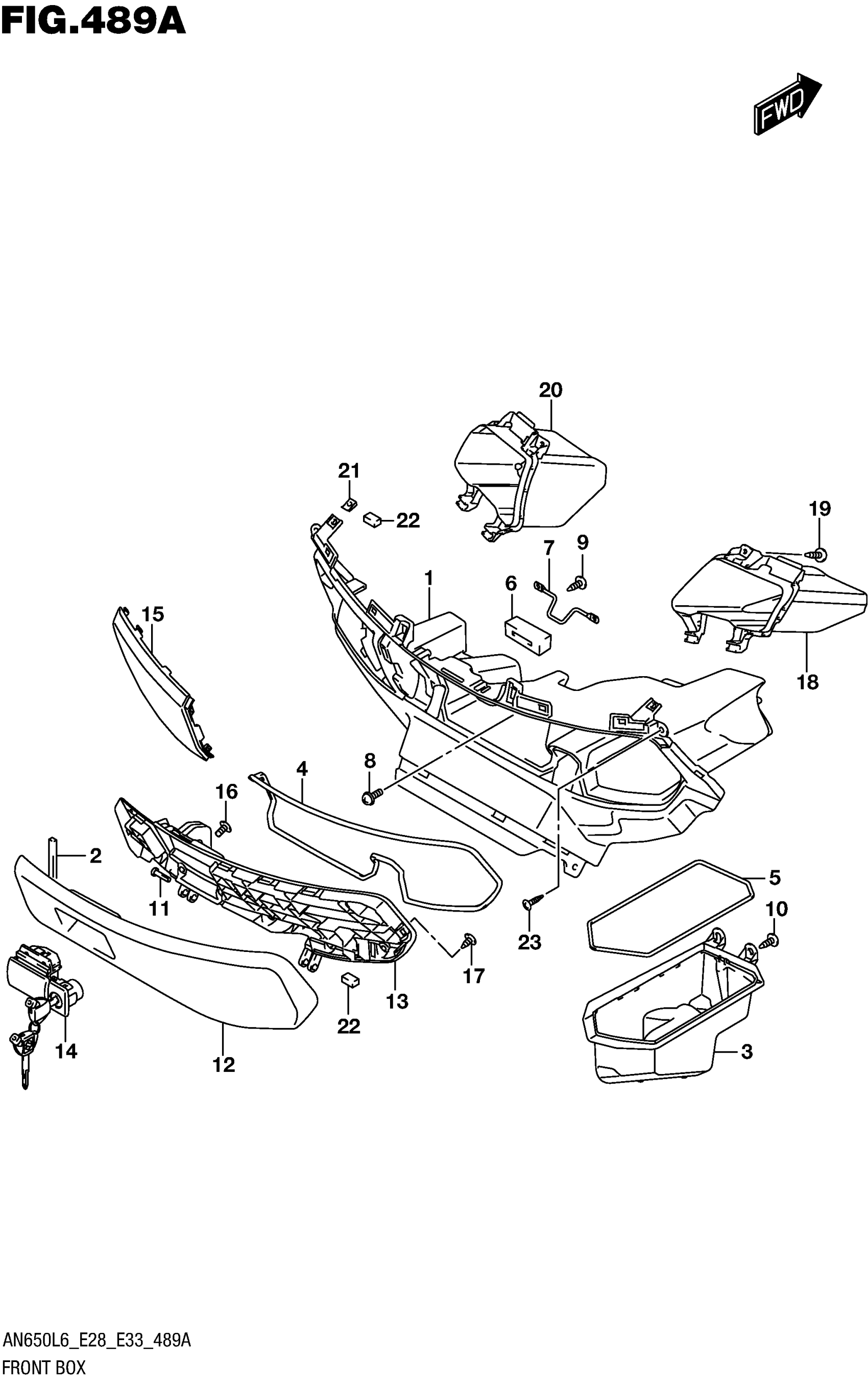

Suzuki AN650L6 (2016) FRONT BOX Diagram

#

Description
Price

1

BOX,FRONT This part replaces 92111-26J50.

92111-26J51

$92.83

2

CUSHION, FRONT BOX OUTER LID

92123-26J00

Unavailable

3

COVER, FRONT BOX INNER

92112-26J00

Unavailable

4

CUSHION, FRONT BOX NO.1

92114-26J00

$9.58

5

CUSHION, FRONT BOX INNER

92113-26J00

$4.12

6

CUSHION, FRONT BOX NO.3

92116-10G00

$8.05

7

STRIKER, FRONT BOX

92171-26J00

$5.79

8

SCREW (6X16)

09136-06157

$2.83

9

SCREW

03541-0516A

$1.49

10

SCREW

03541-0516A

$1.49

11

PIN, GLOVE BOX HINGE

73423-50G00

$5.10

12-1

LID, FRONT BOX OUTER (GRAY)

92121-26J00-PGZ

Unavailable

12-2

LID, FRONT BOX OUTER (WHITE)

92121-26J00-RB5

$112.85

12-3

LID, FRONT BOX OUTER (BLACK)

92121-26J00-YKV

$98.92

13

LID, FRONT BOX INNER

92122-26J50

$25.60

14

LOCK SET, LID

92100-10841

$166.35

15-1

LID, CLNR MAINT (GRAY)

92161-26J01-PGZ

$67.17

15-2

LID, CLNR MAINT (WHITE)

92161-26J01-RB5

$69.73

15-3

LID, CLNR MAINT (BLACK)

92161-26J01-YKV

$56.93

16

SCREW

02142-0512B

$2.05

17

SCREW

03541-0412B

$1.49

18

BOX, FRONT PANEL RH

92141-26J00

$22.28

19

SCREW

03541-0516A

$1.49

20

BOX, FRONT PANEL LH

92151-26J00

Unavailable

21

NUT

09148-05038

$1.97

22

CUSHION | CUT AS REQUIRED

17798-39G00

$6.49

23

SCREW

03541-0516A

$1.49
