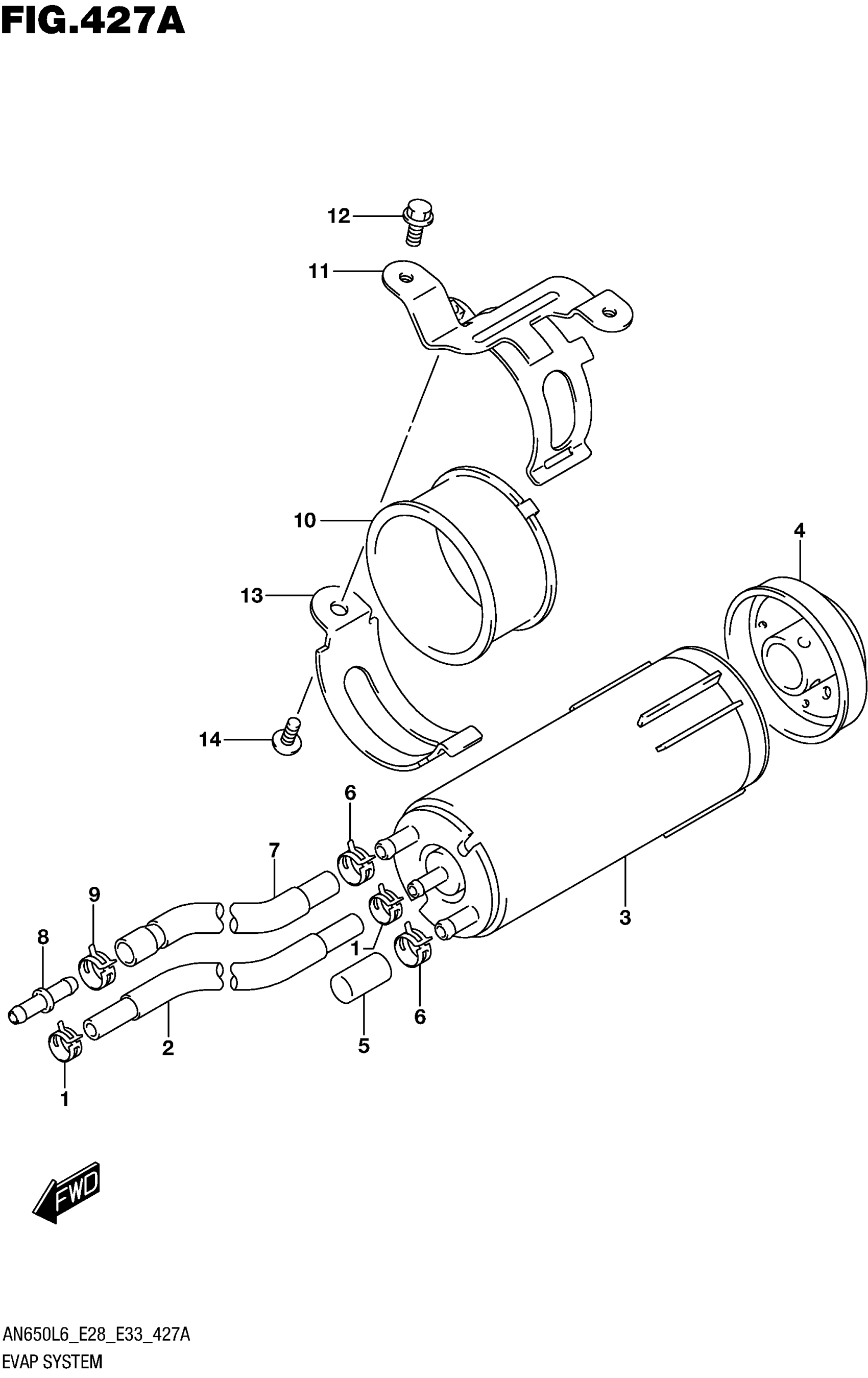

Suzuki AN650L6 (2016) EVAP SYSTEM (AN650L6 E33) Diagram

#

Description
Price

1

CLIP (ID:10.5,H:8)

09401-10409

$2.26

2

HOSE, CANISTER & CHECK VALVE

44435-10GA0

Unavailable

3

CANISTER ASSY, CHARCOAL

17210-15H00

$305.77

4

CAP CANISTER This part replaces 17211-48E00.

17211-48E01

$19.52

5

CAP (OD:11.5)

09251-07003

$2.53

6

CLIP

09401-11415

$2.23

7

HOSE, PURGE

44436-10GA0

Unavailable

8

JOINT

09367-06009

Unavailable

9

CLIP (ID:10.5,H:8)

09401-10409

$2.26

10

CUSHION CANISTER

44883-26E00

Unavailable

11

BRACKET, CANISTER

44880-10G00

Unavailable

12

BOLT

01550-0612A

$1.97

13

HOLDER, CANISTER

44882-26E00

Unavailable

14

SCREW

02142-0610A

$1.49
