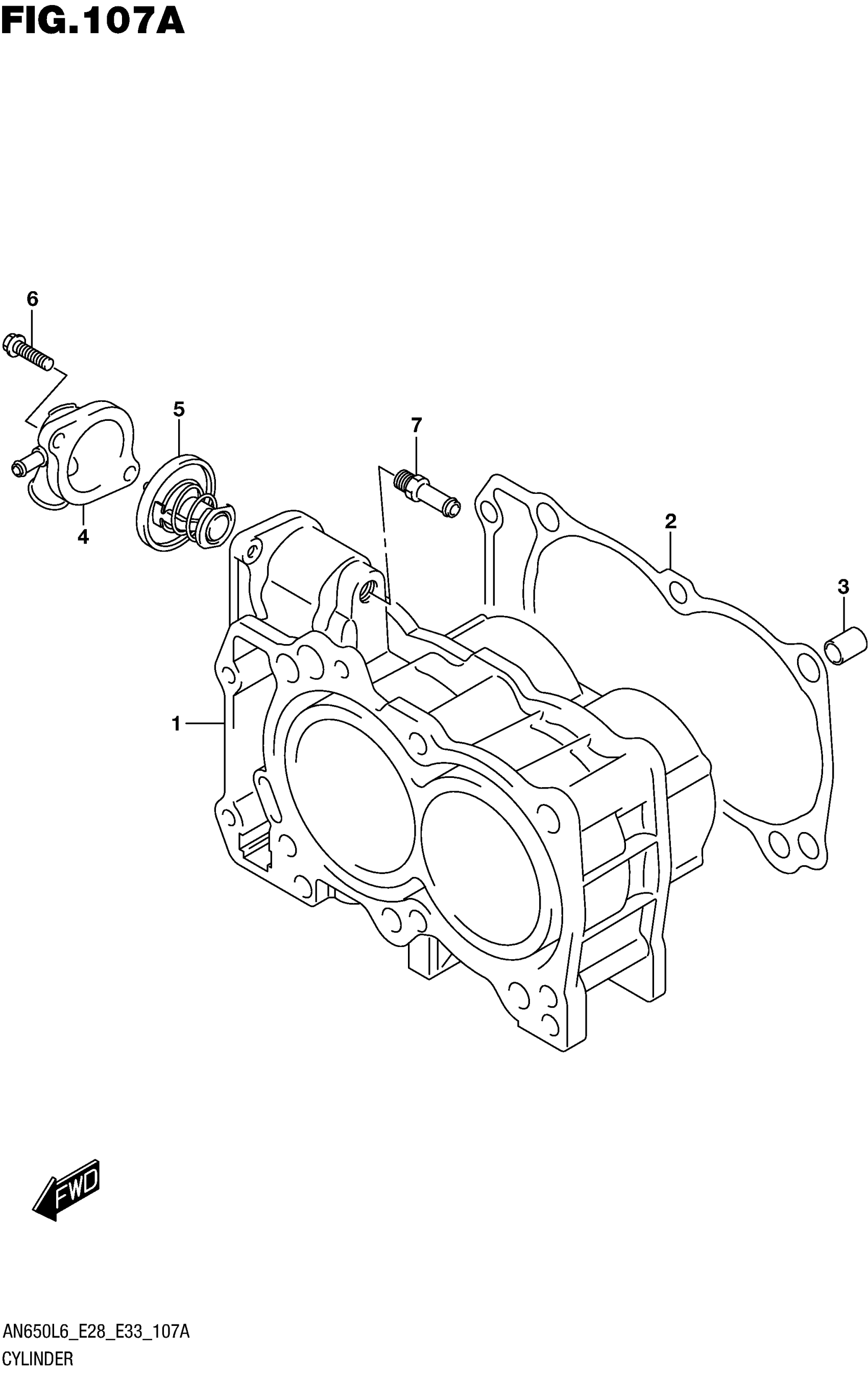

Suzuki AN650L6 (2016) CYLINDER Diagram

#

Description

Price

1

CYLINDER (YELLOW)

11211-10GA0-0F0

Unavailable

2

GASKET, CYLINDER

11241-10G00

$20.63

3

PIN

04211-13189

$2.19

4

COVER, THERMOSTAT

17661-10G00

$36.95

5

THERMOSTAT,WATER This part replaces 17670-06G50.

17670-06G51

$25.77

6

BOLT

01547-0620A

$2.03

7

UNION

09362-09011

$8.28
